Check Fuel Level Sensor Unit And Fuel Pump (Main)

  1. Check the resistance between terminals 2 and 5.

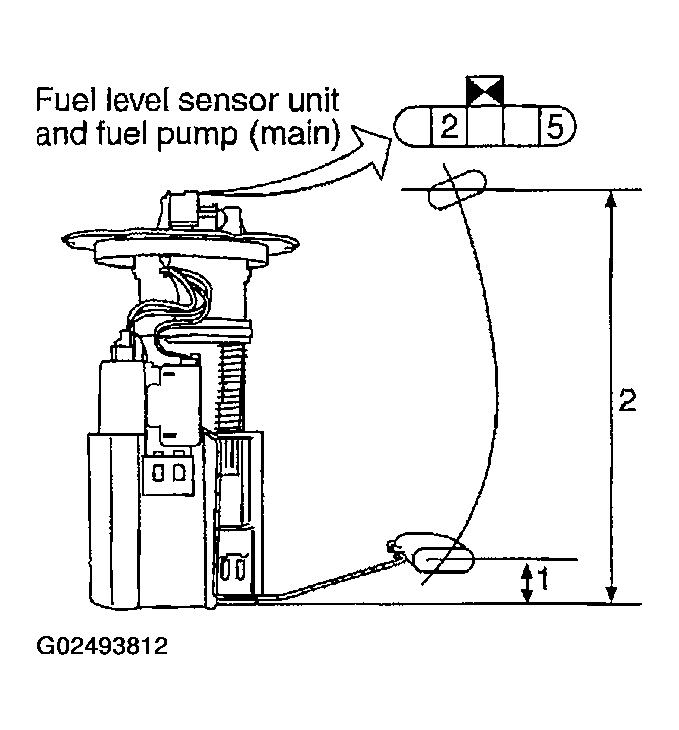

    Fig 1: Testing Fuel Pump (Main) Circuit Resistance
    G02493812Courtesy of NISSAN MOTOR CO., U.S.A.

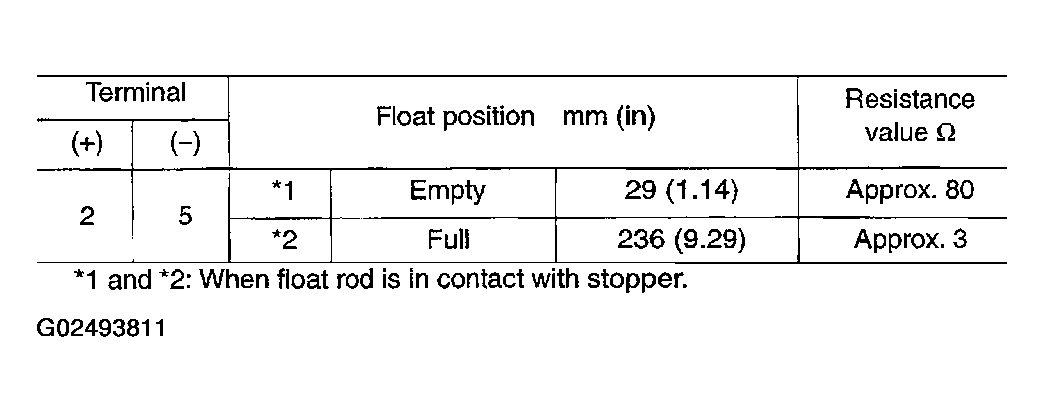

    Fig 2: Identifying Fuel Level Sensor Specifications
    G02493811Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If the results of check is NG, check the fuel level sensor unit and fuel pump (main) harness.
