Snow Mode Switch

Check snow mode switch continuity between terminals 1 and 3 under the following condition.

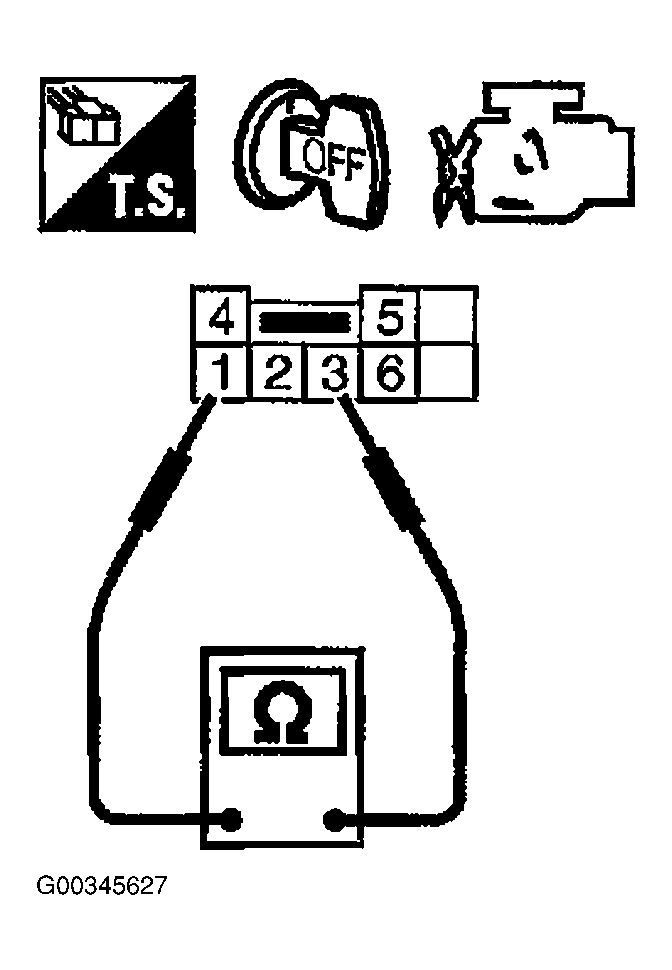

Fig 1: Testing Snow Mode Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace snow mode switch.

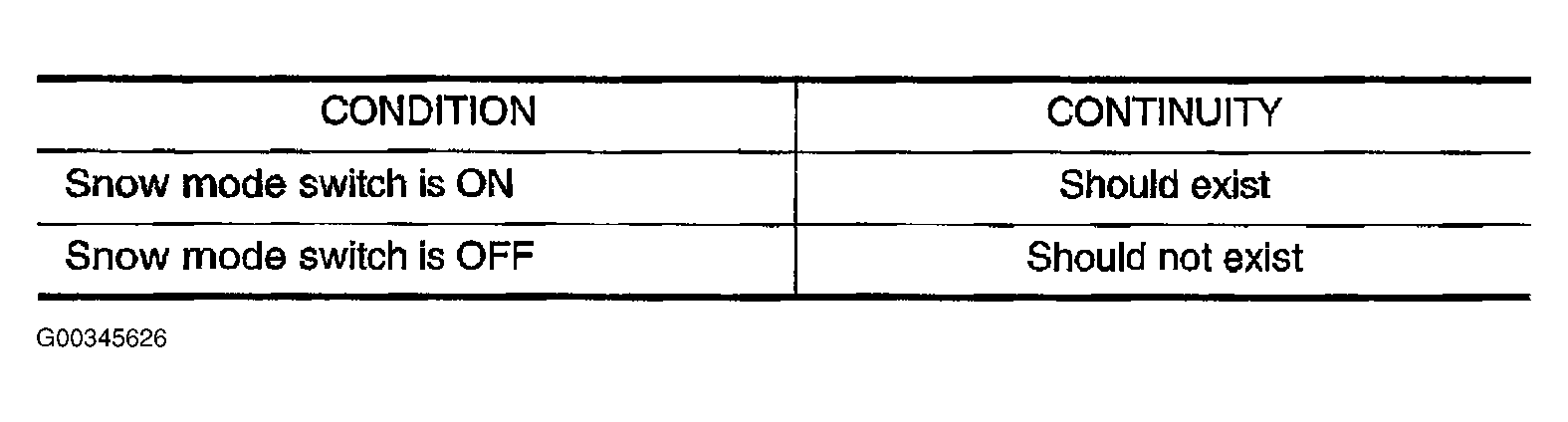

Fig 2: Snow Mode Switch Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
