5. Check Door Request Switch Circuit

1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit connector M34 terminals 5 (driver door), 25 (passenger door), and 29 (back door) and door request switch connector D12 (driver door), D42 (passenger door), D113 (back door) terminal 1.
   1. Driver 5 (W/L) - 1 (SB) : Continuity should exist.
   2. Passenger 25 (W/R) - 1 (GY) : Continuity should exist.
   3. Back door 29 (GY) - 1 (GY) : Continuity should exist.
3. Check continuity between door request switch connector D12 (driver door), D42 (passenger door), D113 (back door) terminal 1 and ground.
   1. 1 - Ground : Continuity should not exist.

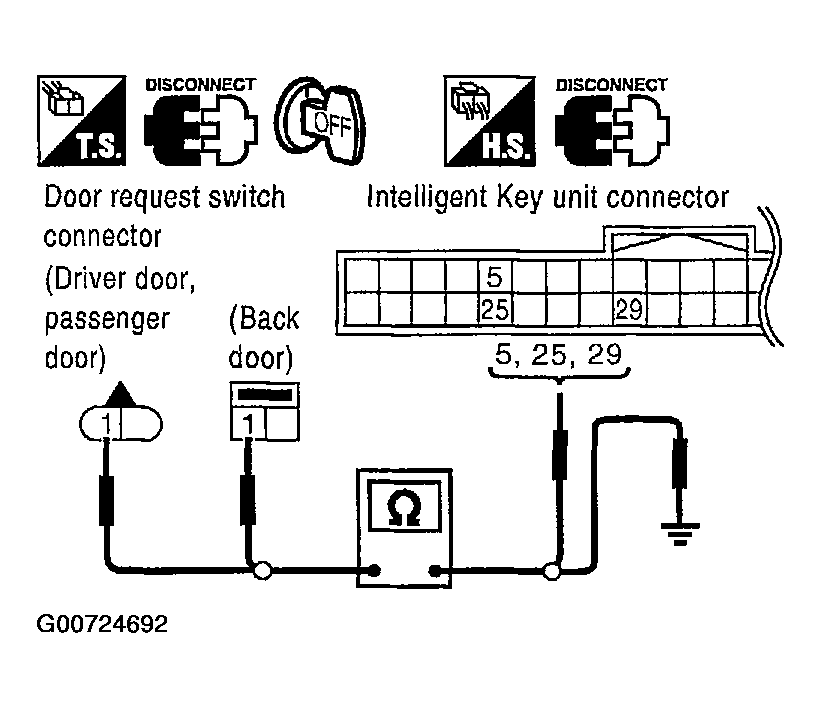

Fig 1: Checking Continuity Between Door Request Switch Connector D12 (Driver Door), D42 (Passenger Door), D113 (Back Door) Terminal 1 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace Intelligent Key unit.

NG : Repair or replace harness between Intelligent Key unit and door request switch.
