Terminals And Reference Values For Driver Seat Control Unit

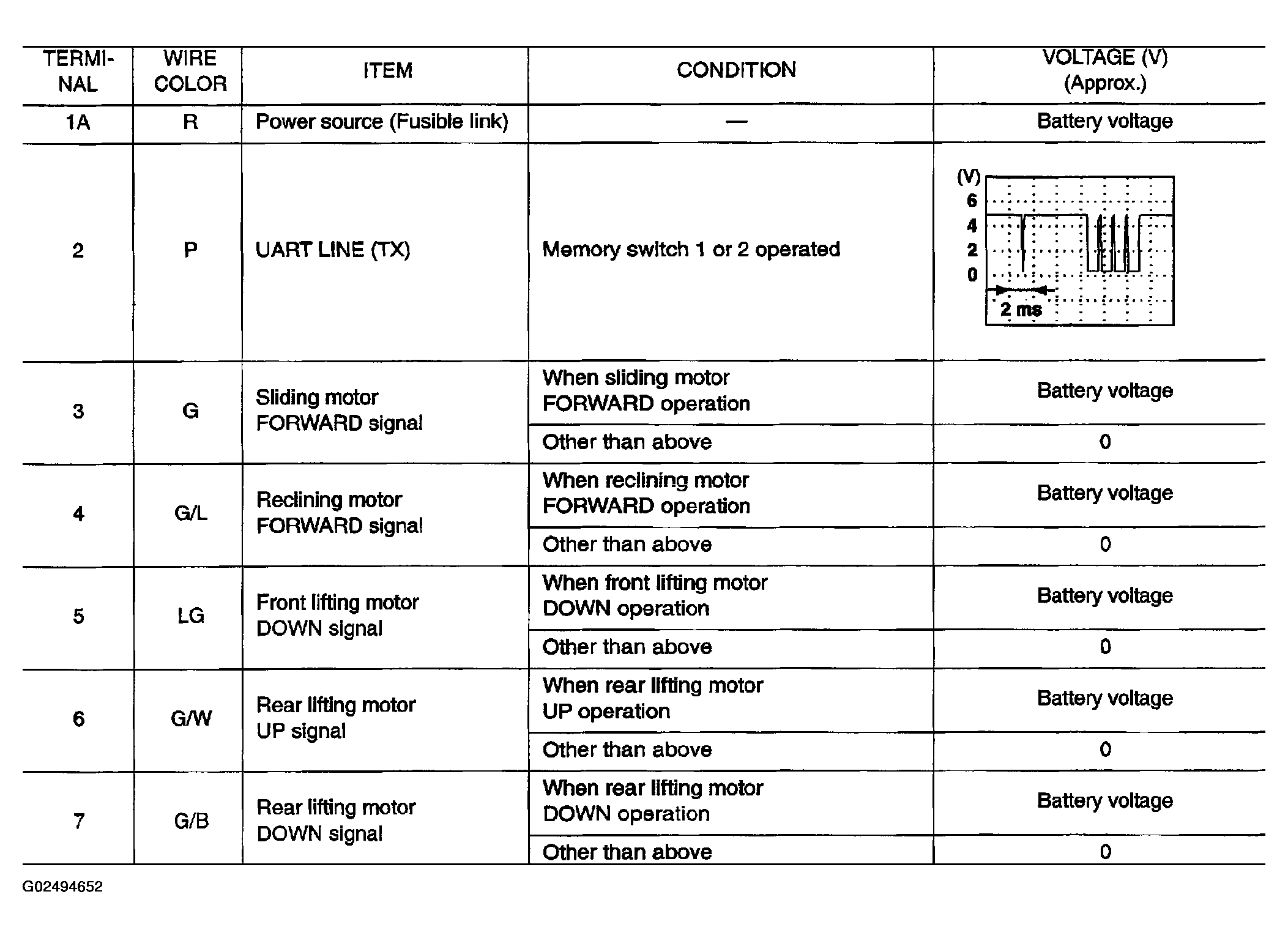

Fig 1: Displaying Terminals & Reference Values For Driver Seat Control Unit (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

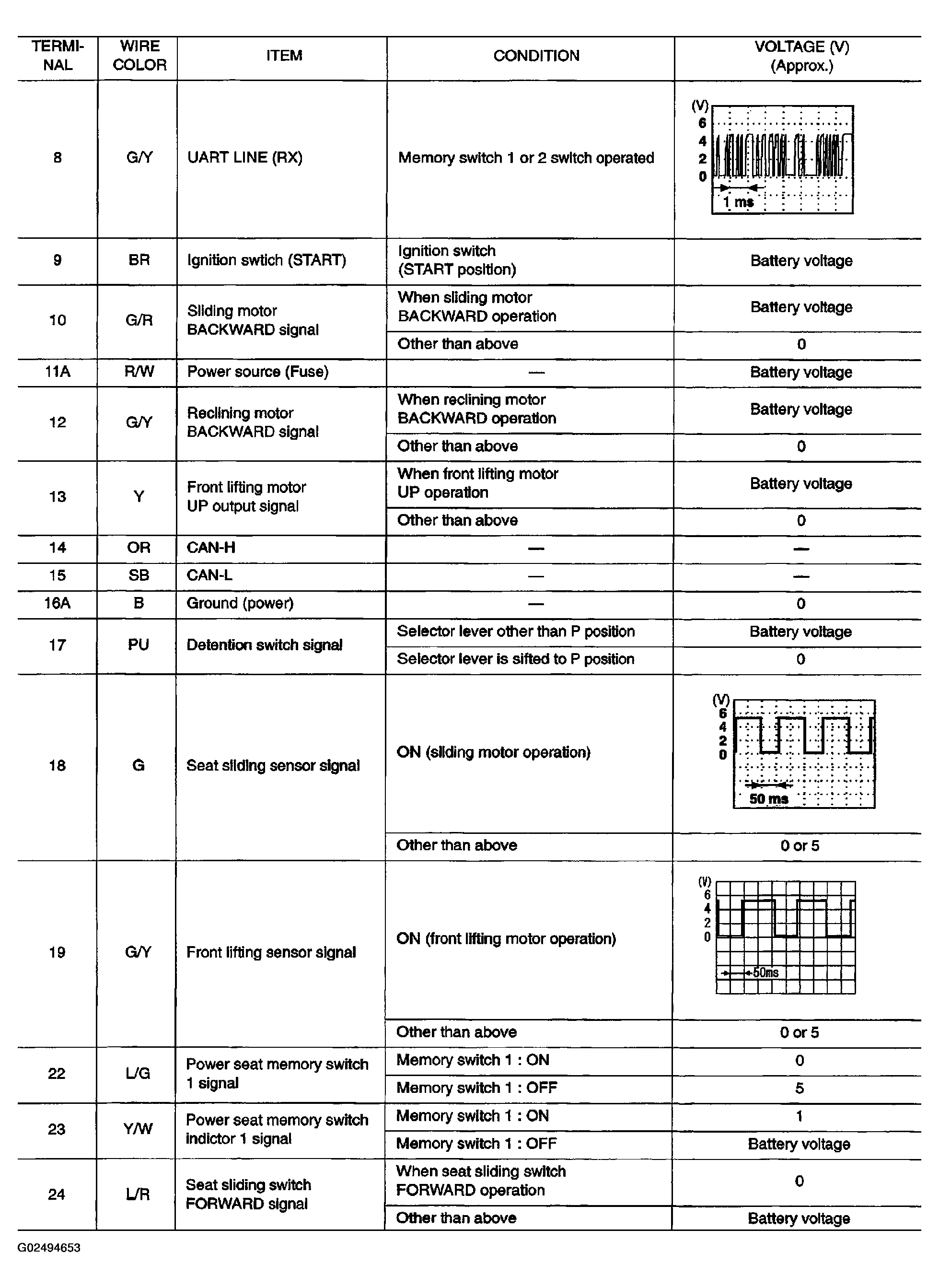

Fig 2: Displaying Terminals & Reference Values For Driver Seat Control Unit (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

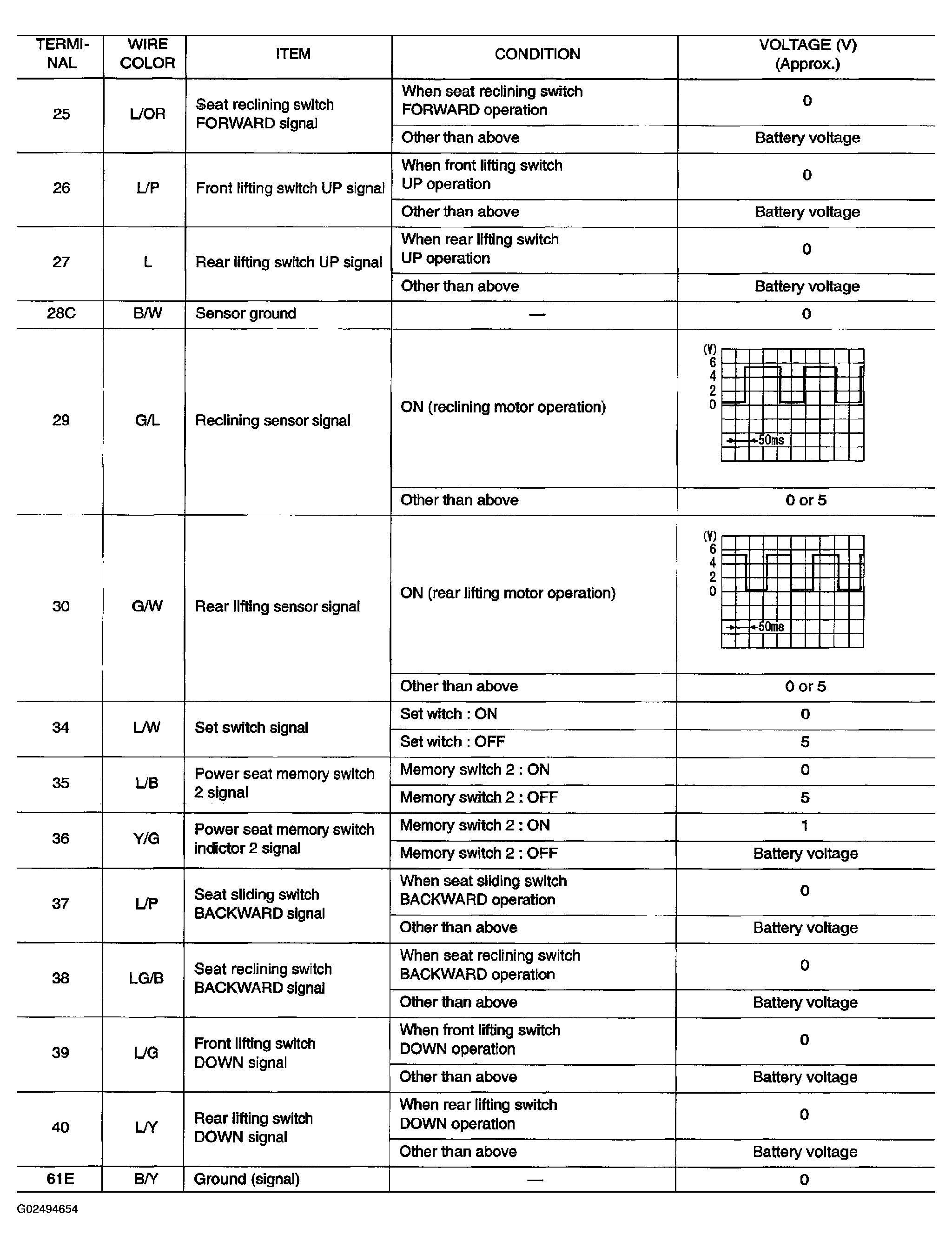

Fig 3: Displaying Terminals & Reference Values For Driver Seat Control Unit (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
