Limit Switch Circuit Check (Passenger Side)

Check Front Power Window Switch (Passenger Side) Limit Signal
1. Turn ignition switch ON.
2. Check voltage between front power window motor (passenger side) connector and ground.

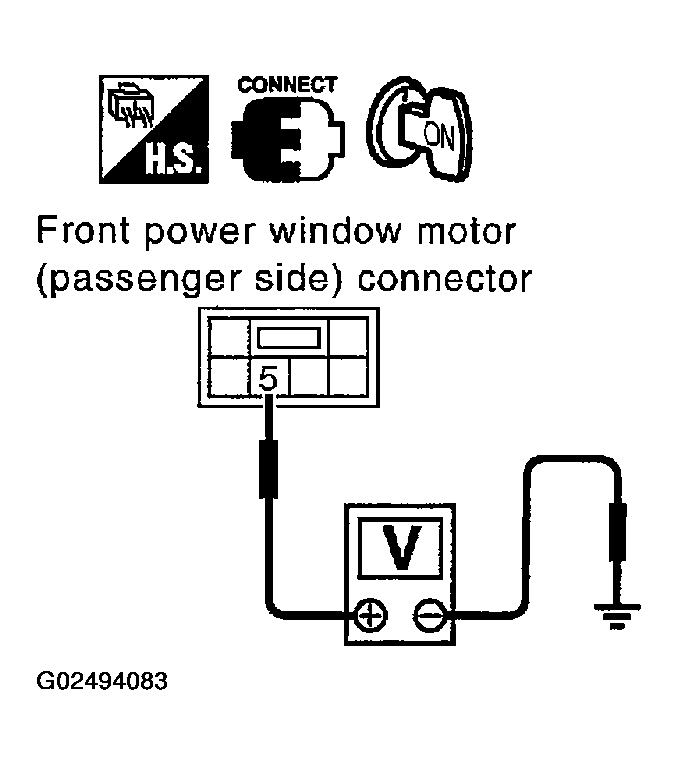

  Fig 1: Checking Voltage At Front Power Window Motor Connector D38 Terminal 5
  Courtesy of NISSAN MOTOR CO., U.S.A.

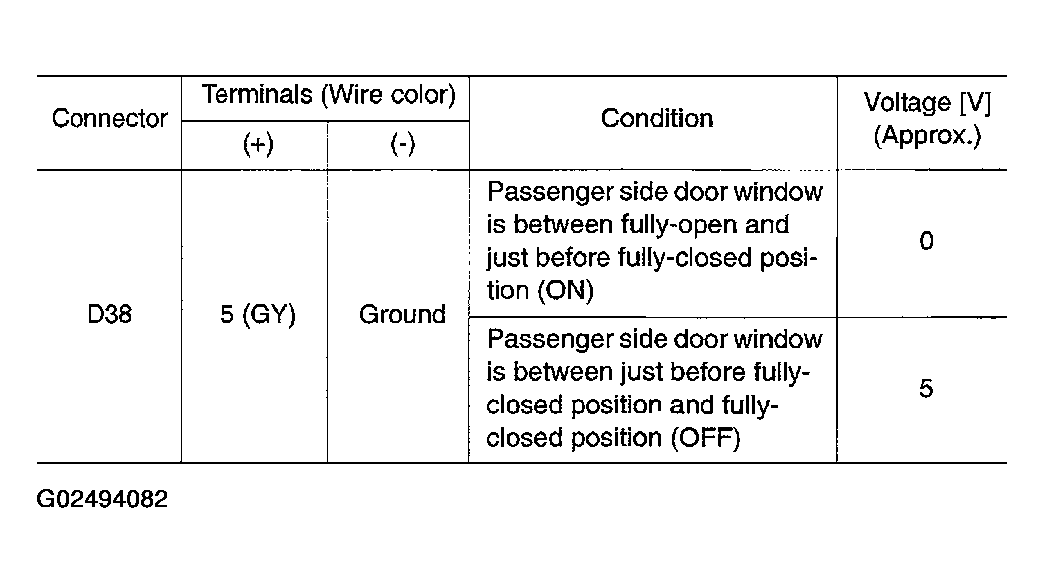

  Fig 2: Front Passenger Side Power Window Motor Connector D38 Terminal 5 Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Limit switch circuit is OK.
2. NG: Go to 2.
Check Ground Circuit
1. Turn ignition switch OFF.
2. Disconnect front power window motor (passenger side) connector.
3. Check continuity between front power window motor (passenger side) connector D38 terminal 6 and ground.

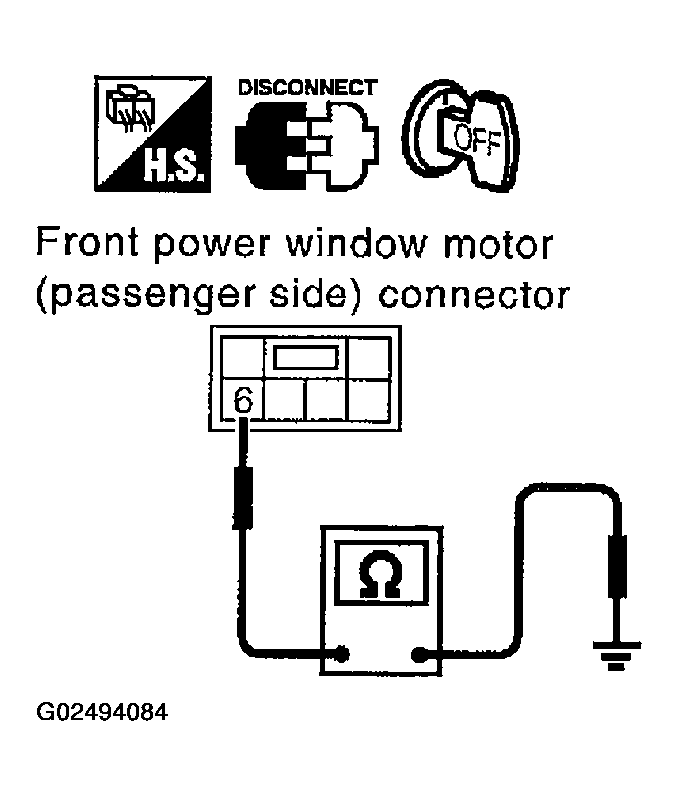

  Fig 3: Checking Continuity Front Power Window Motor Connector D38 Terminal 6 To Body Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  6 (SB) - Ground: Continuity should exist .
OK or NG
1. OK: Go to 4 .
2. NG: Go to 3.
Check Harness Continuity 1
1. Disconnect front power window switch (passenger side) connector.
2. Check continuity between front power window switch (passenger side) connector D36 terminal 3 and front power window motor (passenger side) connector D38 terminal 6.

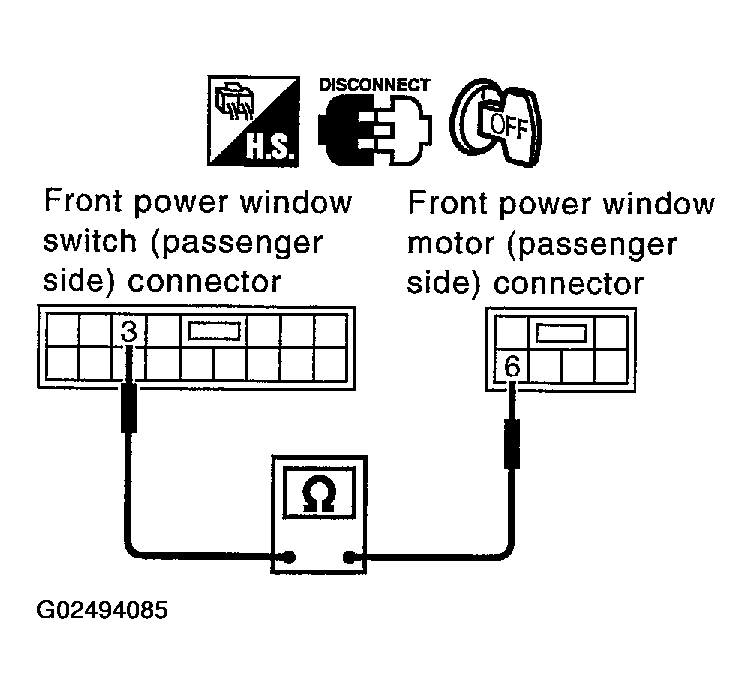

  Fig 4: Checking Continuity Front Power Window Switch Connector D36 Terminal 3 To Front Power Window Motor Connector D38 Terminal 6
  Courtesy of NISSAN MOTOR CO., U.S.A.

  3 (SB) - 6 (SB): Continuity should exist .
OK or NG
1. OK: Replace front power window switch (passenger side).
2. NG: Repair or replace harness between front power window switch (passenger side) and front power window motor (passenger side).
Check Front Power Window Switch (Passenger Side) Output Signal
1. Turn ignition switch ON.
2. Check voltage between front power window switch (passenger side) connector D36 terminal 15 and ground.

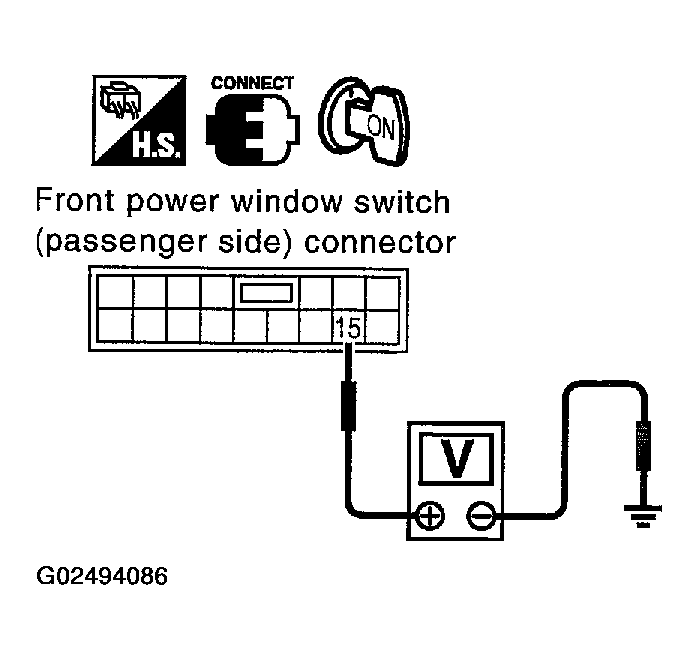

  Fig 5: Checking Voltage At Front Power Window Switch Connector D36 Terminal 15
  Courtesy of NISSAN MOTOR CO., U.S.A.

  15 (GY) - Ground: Approx. 5V
OK or NG
1. OK: Go to 5
2. NG: Replace front power window switch (passenger side).
Check Harness Continuity 2
1. Turn ignition switch OFF
2. Disconnect front power window switch (passenger side) connector.
3. Check continuity between front power window switch (passenger side) connector D36 terminal 15 and front power window motor (passenger side) connector D38 terminal 5.

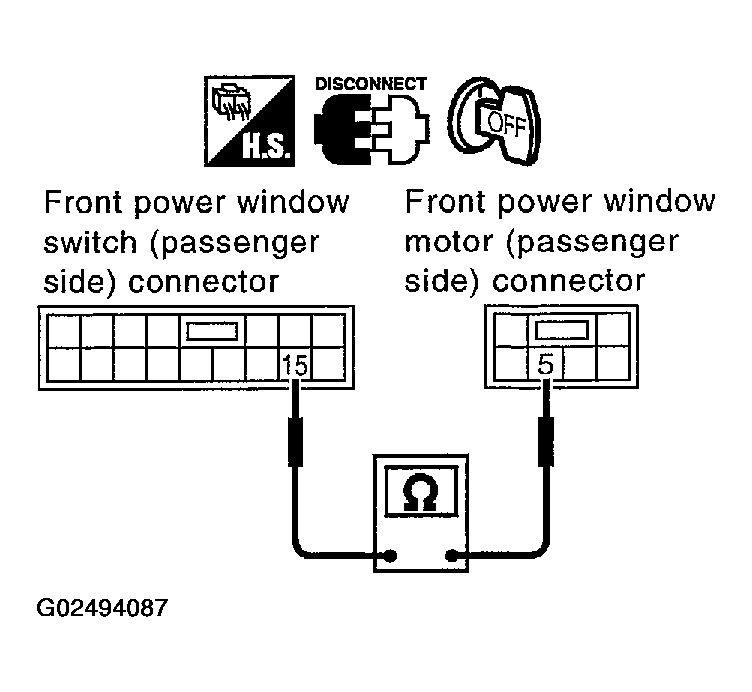

  Fig 6: Checking Continuity Front Power Window Switch Connector D36 Terminal 15 To Front Power Window Motor Connector D38 Terminal 5
  Courtesy of NISSAN MOTOR CO., U.S.A.

  15 (GY) - 5 (GY): Continuity should exist
OK or NG
1. OK: Replace front power window motor (passenger side).
2. NG: Repair or replace harness between front power window switch (passenger side) and front power window motor (passenger side).
