Terminal and Reference Value for Power Window Main Switch - With Front Power Window Anti-pinch System

NOTE: For System Wiring Diagrams, see FX35 SYSTEM WIRING DIAGRAMS or FX45 SYSTEM WIRING DIAGRAMS .

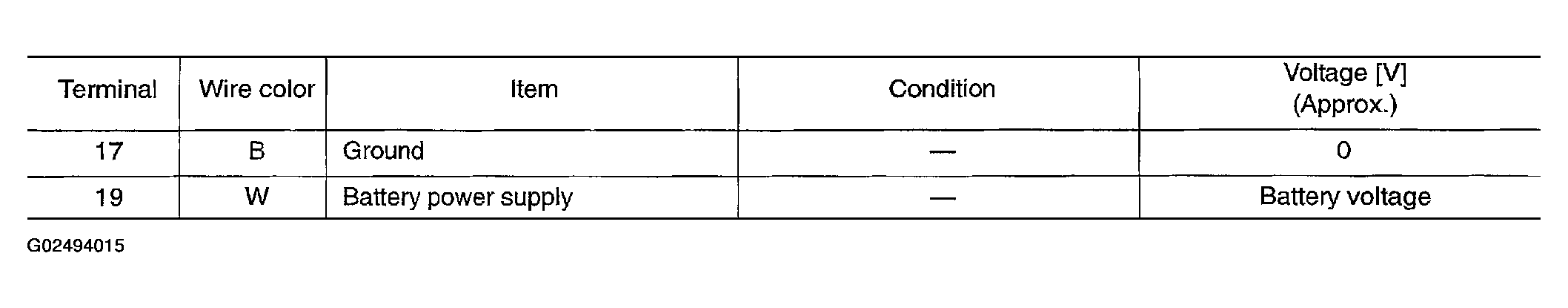

Fig 1: Power Window Main Switch Terminal Specifications (W/Front Power Window Anti-Pinch System - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

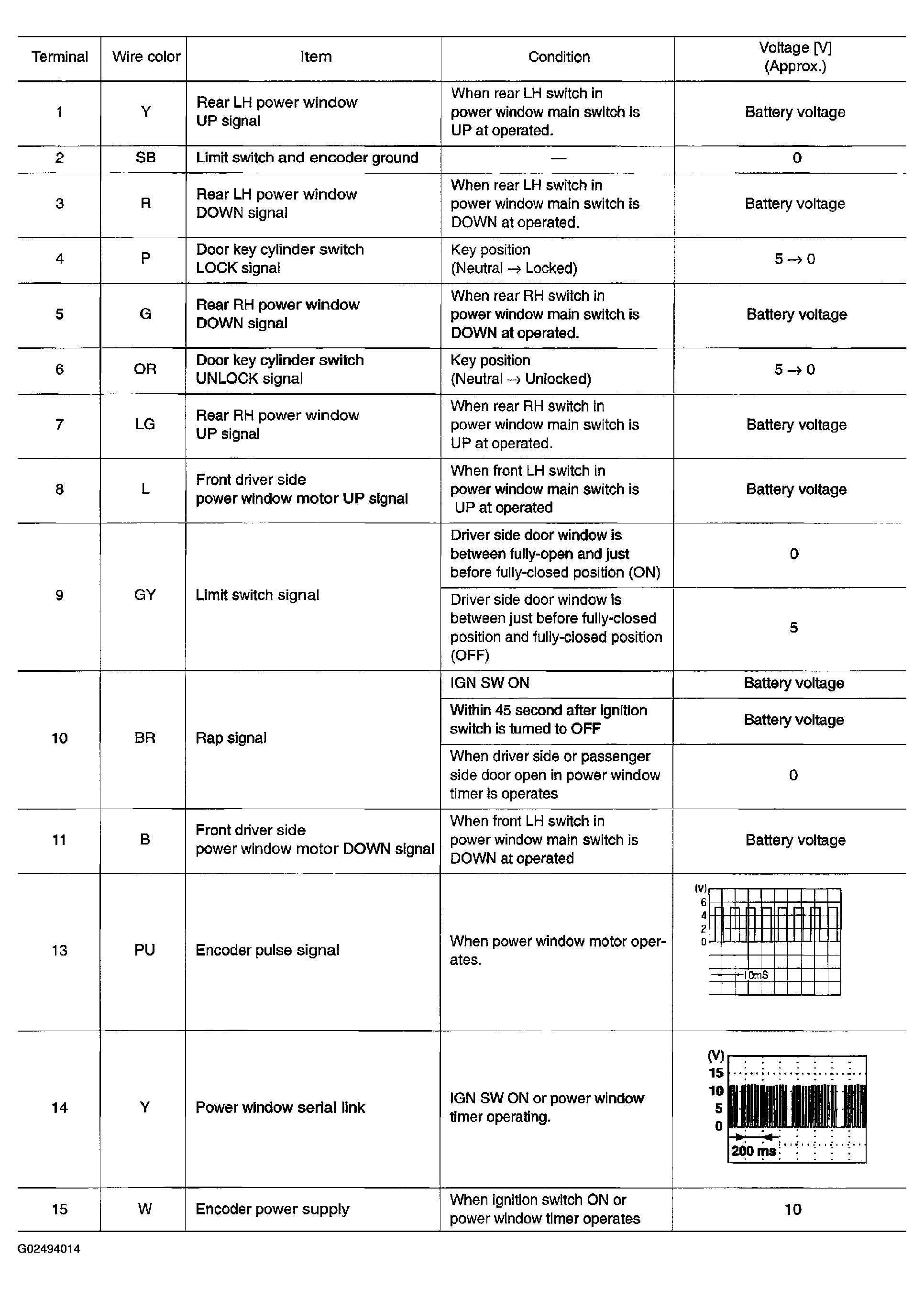

Fig 2: Power Window Main Switch Terminal Specifications (W/Front Power Window Anti-Pinch System - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
