Operation Procedure

  1. Connect CONSULT-II and CONVERTER to data link connector and start engine.
    NOTE: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  2. Touch "START (NISSAN BASED VHCL)" on the display screen.
  3. Touch "ABS".

    If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

  4. Touch "ACTIVE TEST".
  5. The test item selection screen is displayed.
  6. Touch necessary test item.

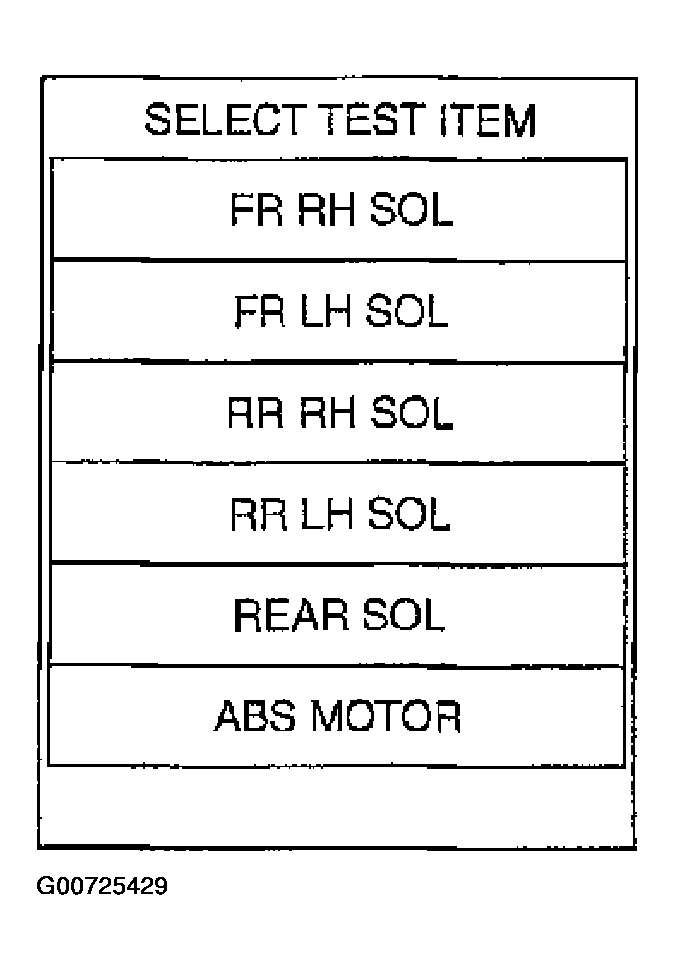

    Fig 1: Viewing SELECT TEST ITEM Screen
    G00725429Courtesy of NISSAN MOTOR CO., U.S.A.
  7. With the "MAIN SIGNALS" display shown in reverse, touch "START".
  8. The "ACTIVE TEST" screen will be displayed, so perform the following test.
