Display Item List

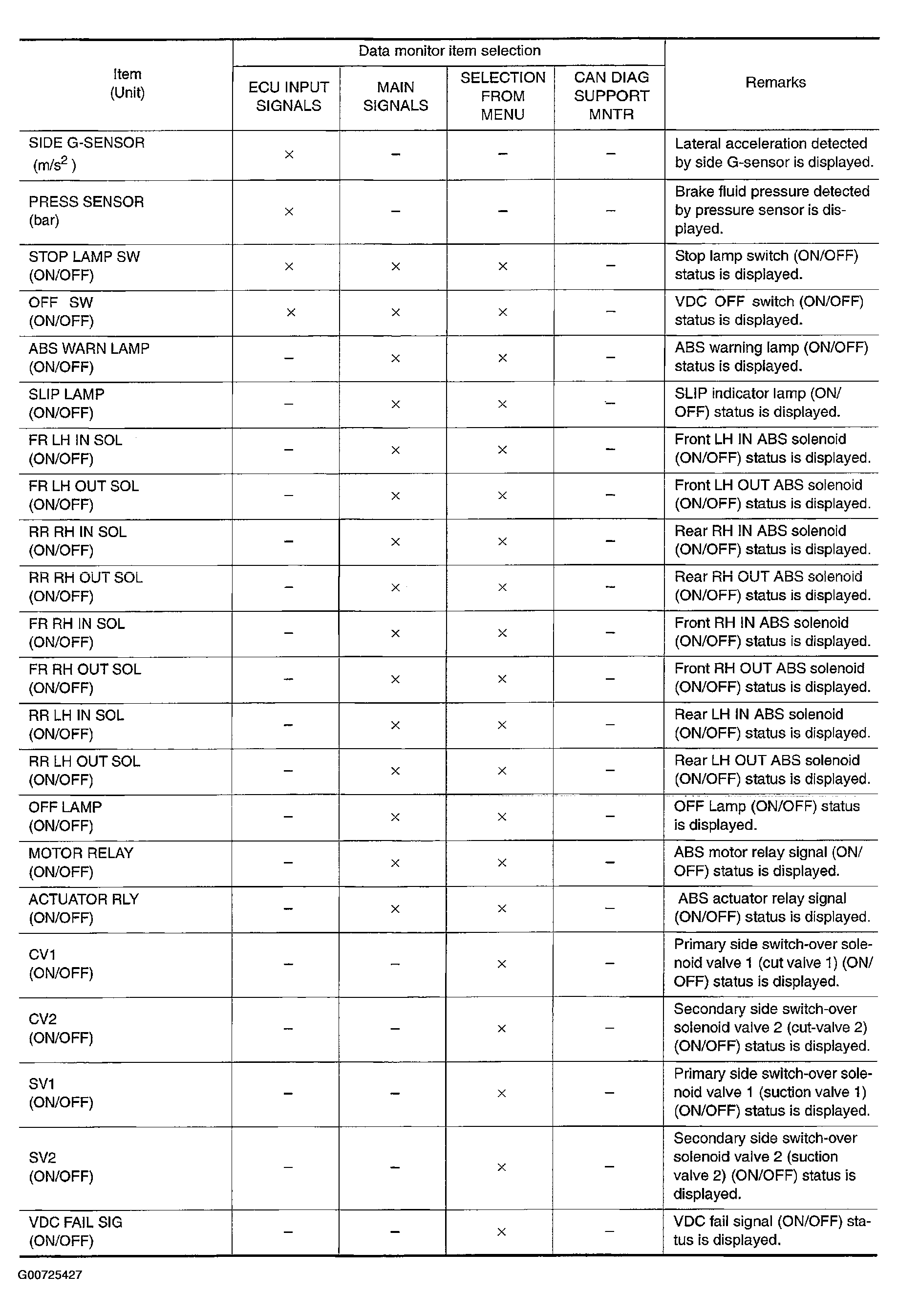

Fig 1: Displaying Data Monitor Items (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

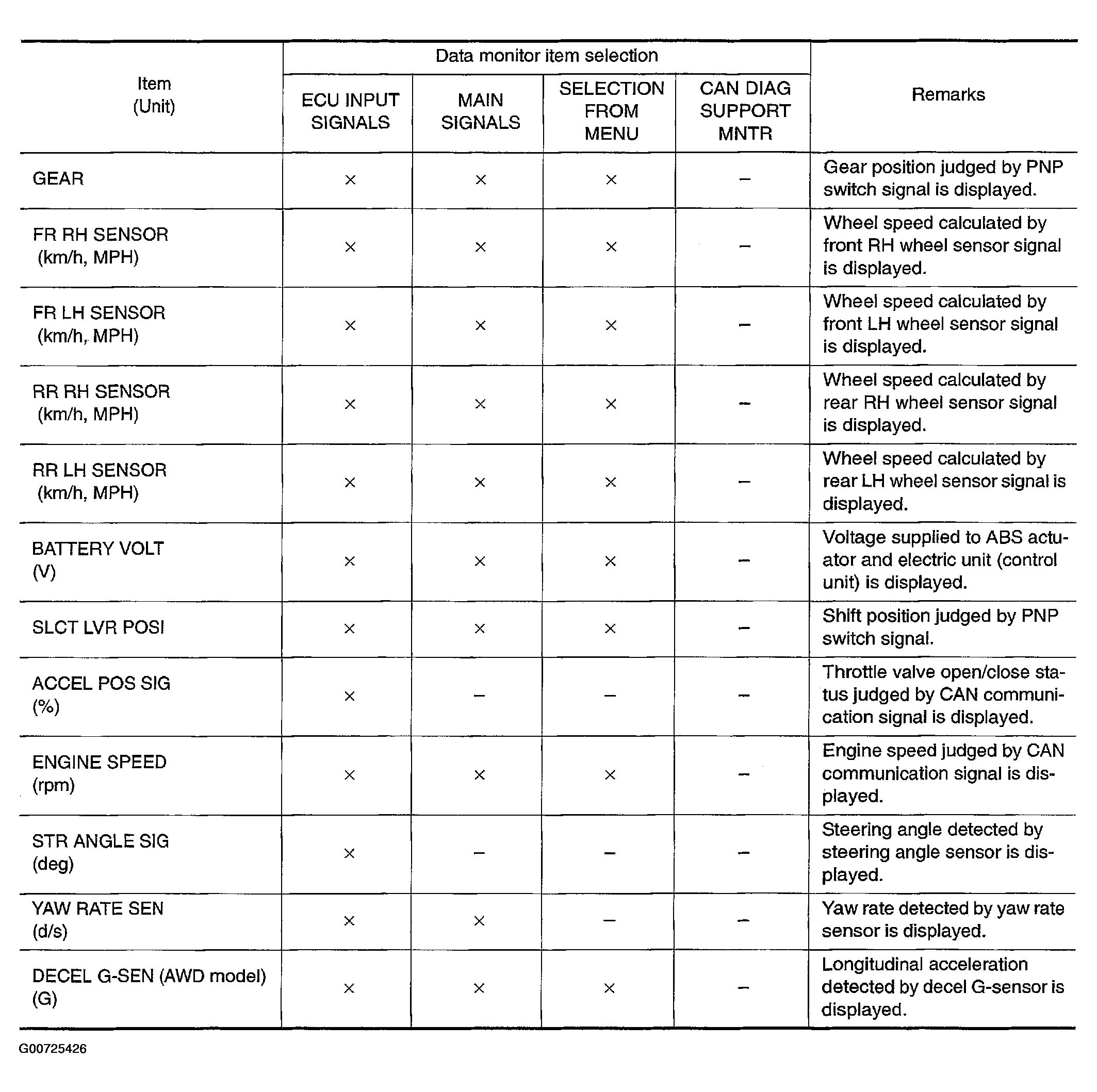

Fig 2: Displaying Data Monitor Items (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

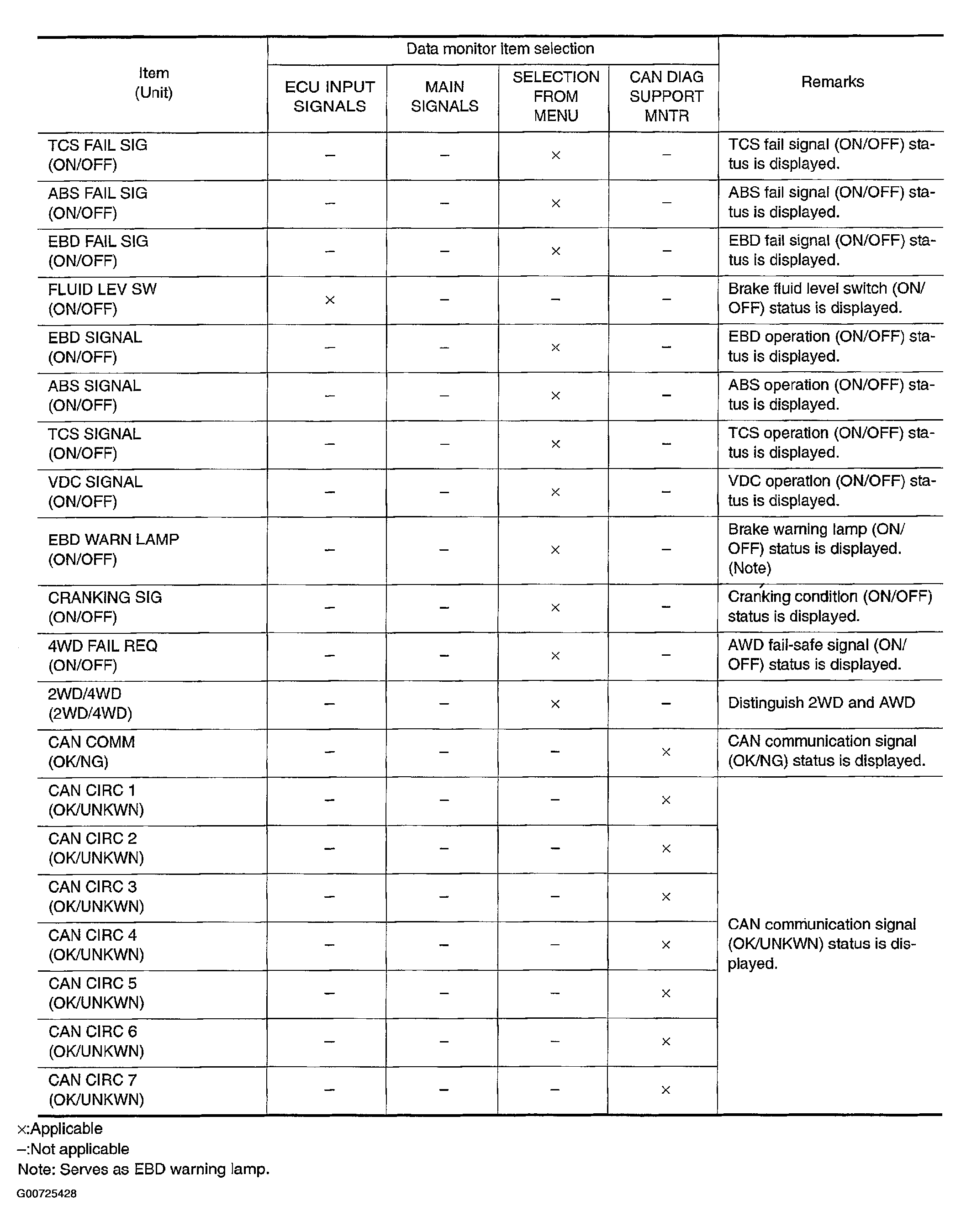

Fig 3: Displaying Data Monitor Items (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
