Engine Oil Level

NOTE: Before starting engine, put vehicle horizontally and check the engine oil level. If the engine is already started, stop it and allow 15 minutes before checking.
  1. Pull out oil level gauge and wipe it clean.
  2. Insert oil level gauge and make sure the engine oil level is within the range shown in the figure.

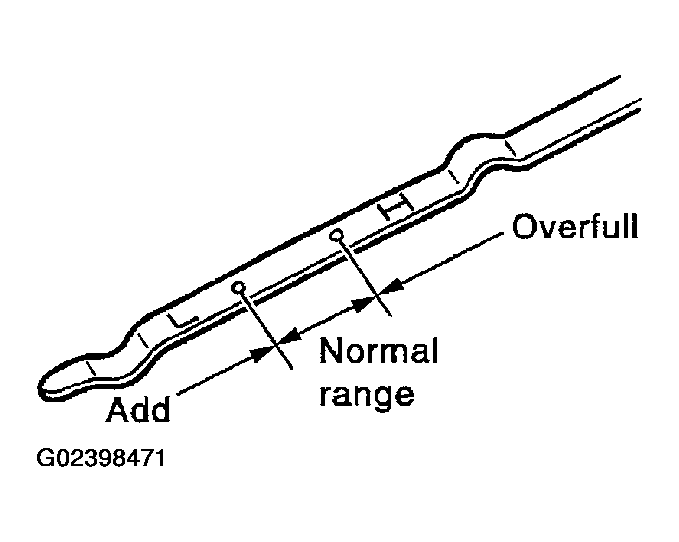

    3. Fig 1: Identifying Oil Level Range On Dipstick
    G02398471Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If it is out of range, adjust it.
