Disassembly and Assembly: Assembly

NOTE: Assemble in the reverse order of disassembly.

Install oil pump inner rotor and oil pump outer rotor with the punched marks on the oil pump cover side.

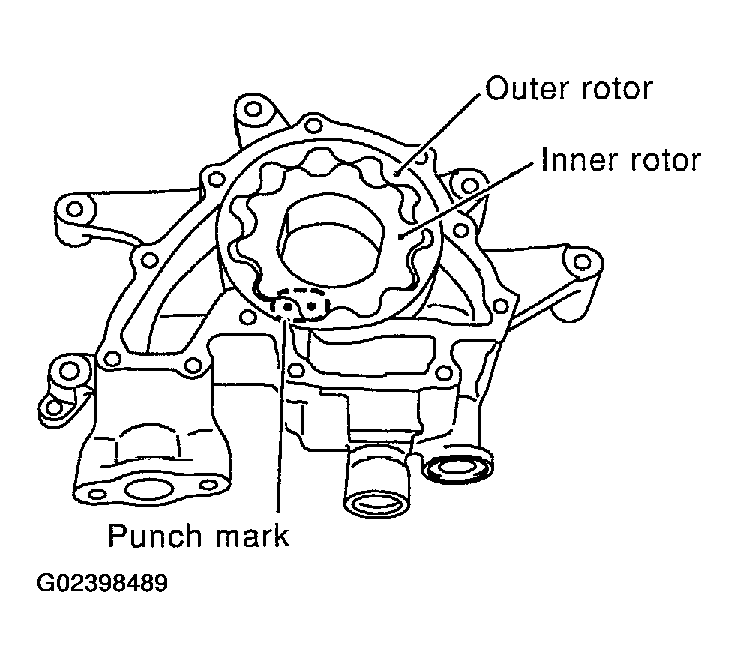

Fig 1: Aligning Oil Pump Inner Rotor & Oil Pump Outer Rotor With Punched Marks
Courtesy of NISSAN MOTOR CO., U.S.A.
