Procedure For Malfunction A

With CONSULT-II

1. Turn ignition switch ON.
2. Select DATA MONITOR mode with CONSULT-II.
   Fig 1: Initiating Data Monitor Mode On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Maintain the following conditions for at least 10 consecutive seconds.

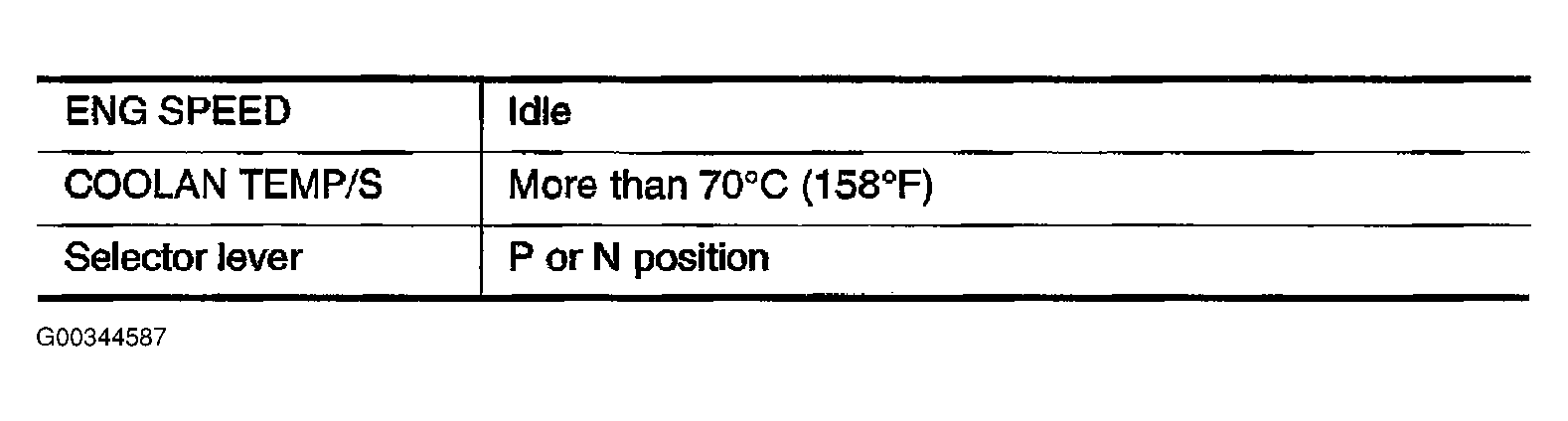

   Fig 2: Identifying Malfunction A Testing Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Maintain the following conditions for at least 20 consecutive seconds.

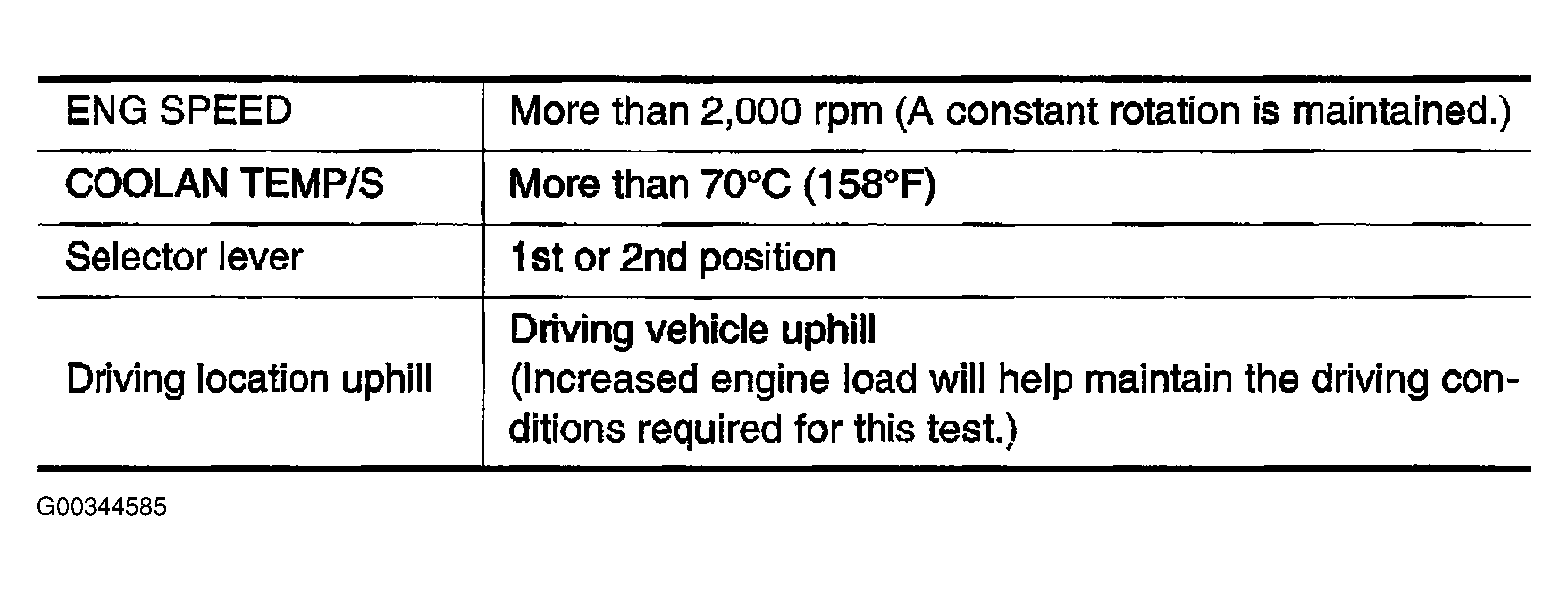

   Fig 3: Identifying Malfunction A Conditions

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. If the 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

With GST

Follow the procedure With CONSULT-II above.
