Procedure For Malfunction B

With CONSULT-II

1. Turn ignition switch ON.

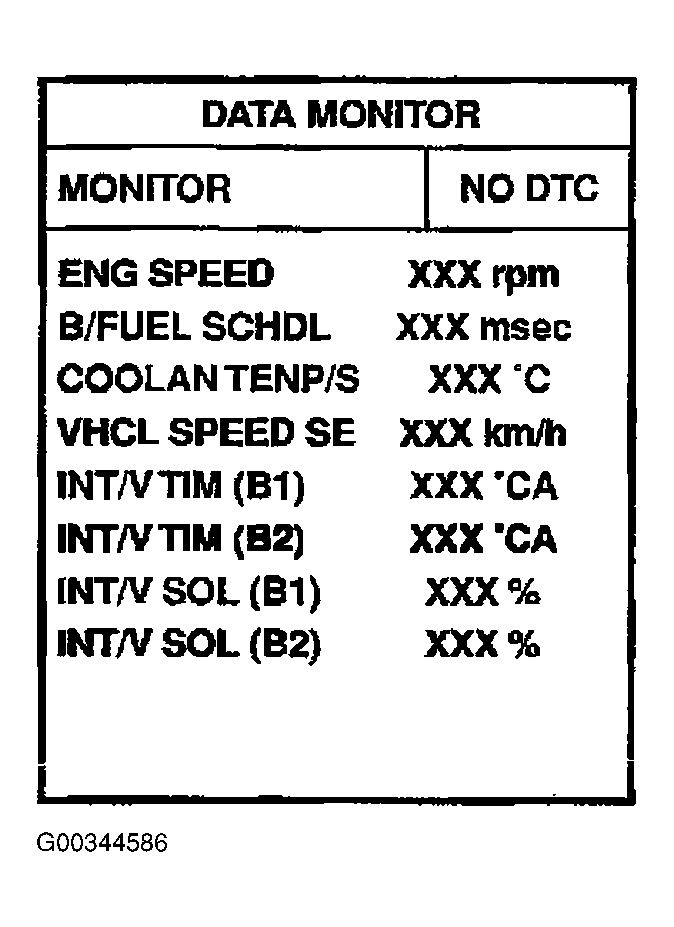

2. Select DATA MONITOR mode with CONSULT-II. See Figure .
3. Maintain the following conditions for at least 10 consecutive seconds.

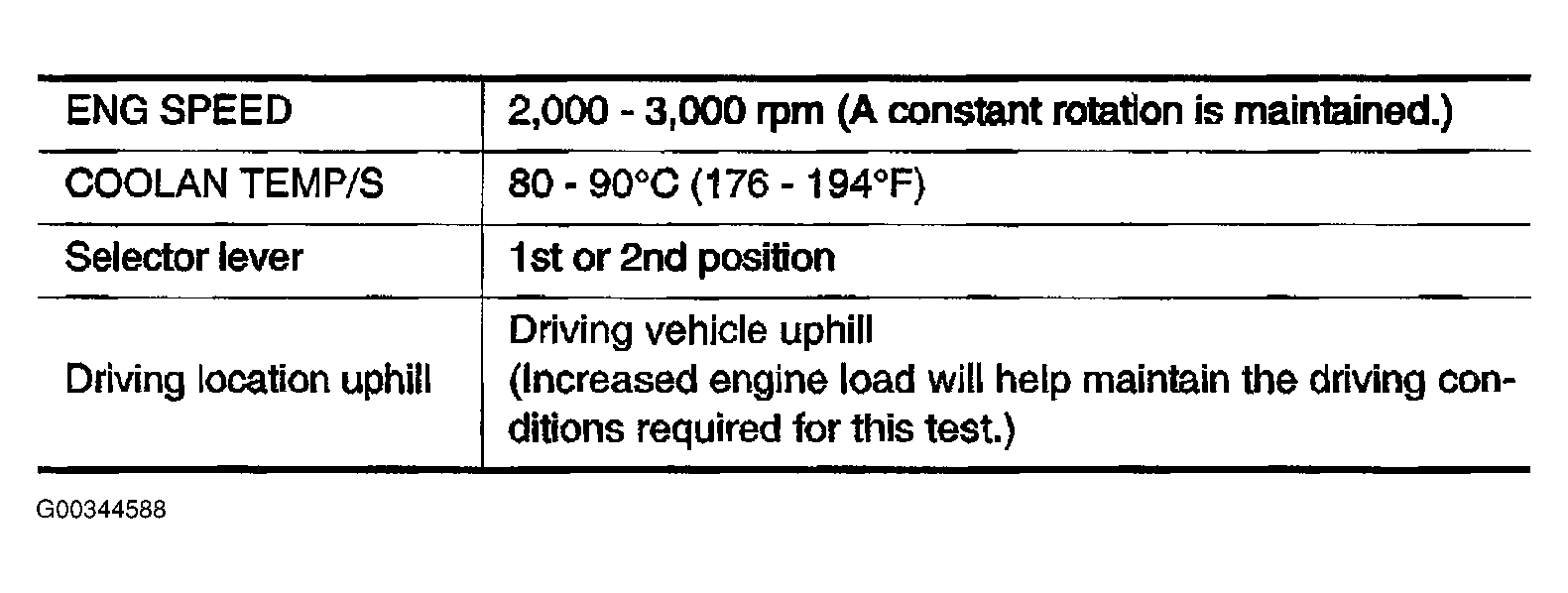

   Fig 1: Identifying Malfunction B Conditions

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. If the 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

With GST

Follow the procedure With CONSULT-II above.
