DTC P0102 & P0103 MAF Sensor: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

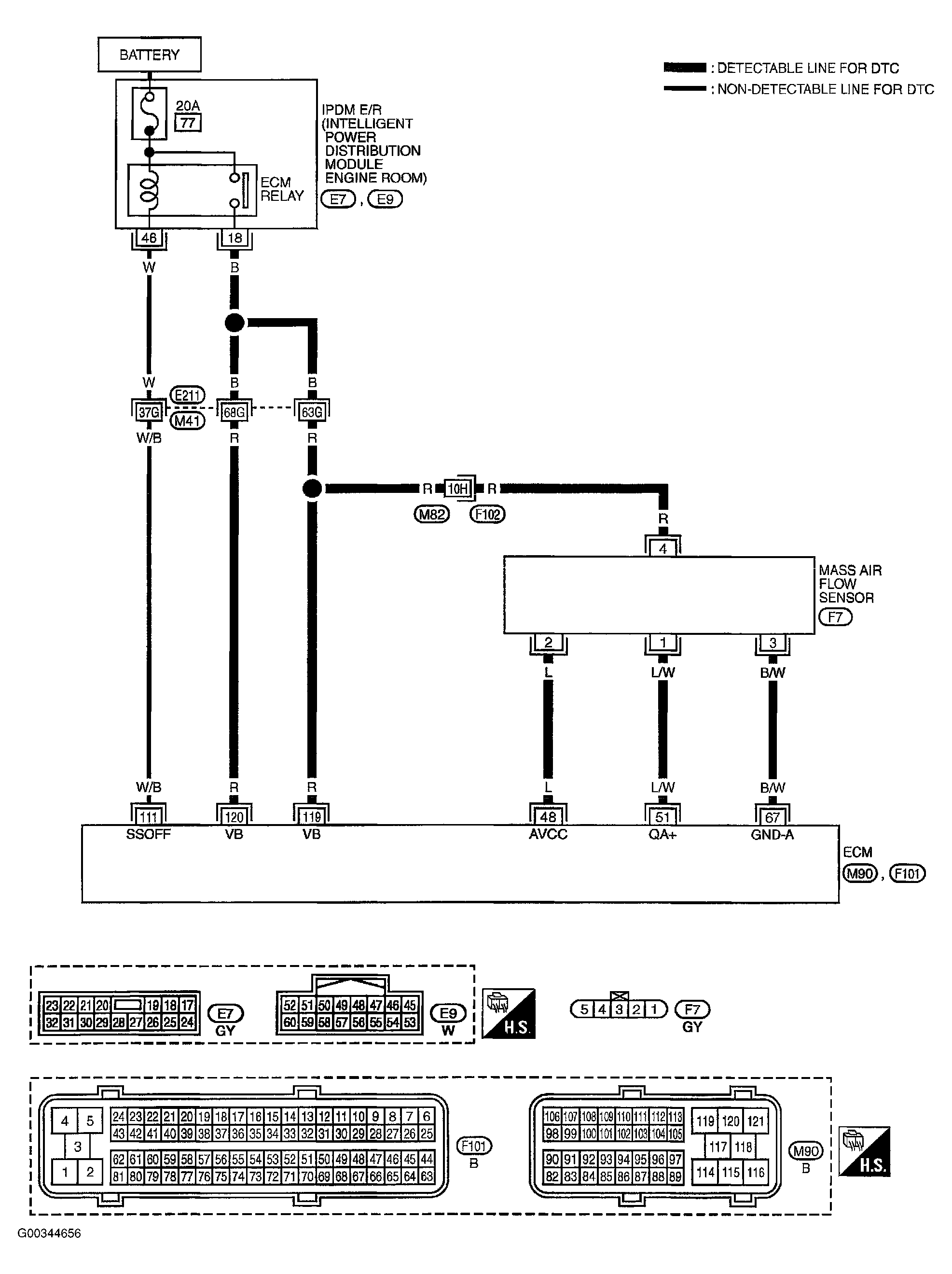

Fig 1: Mass Air Flow Sensor Circuit (DTC P0102 & P0103)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

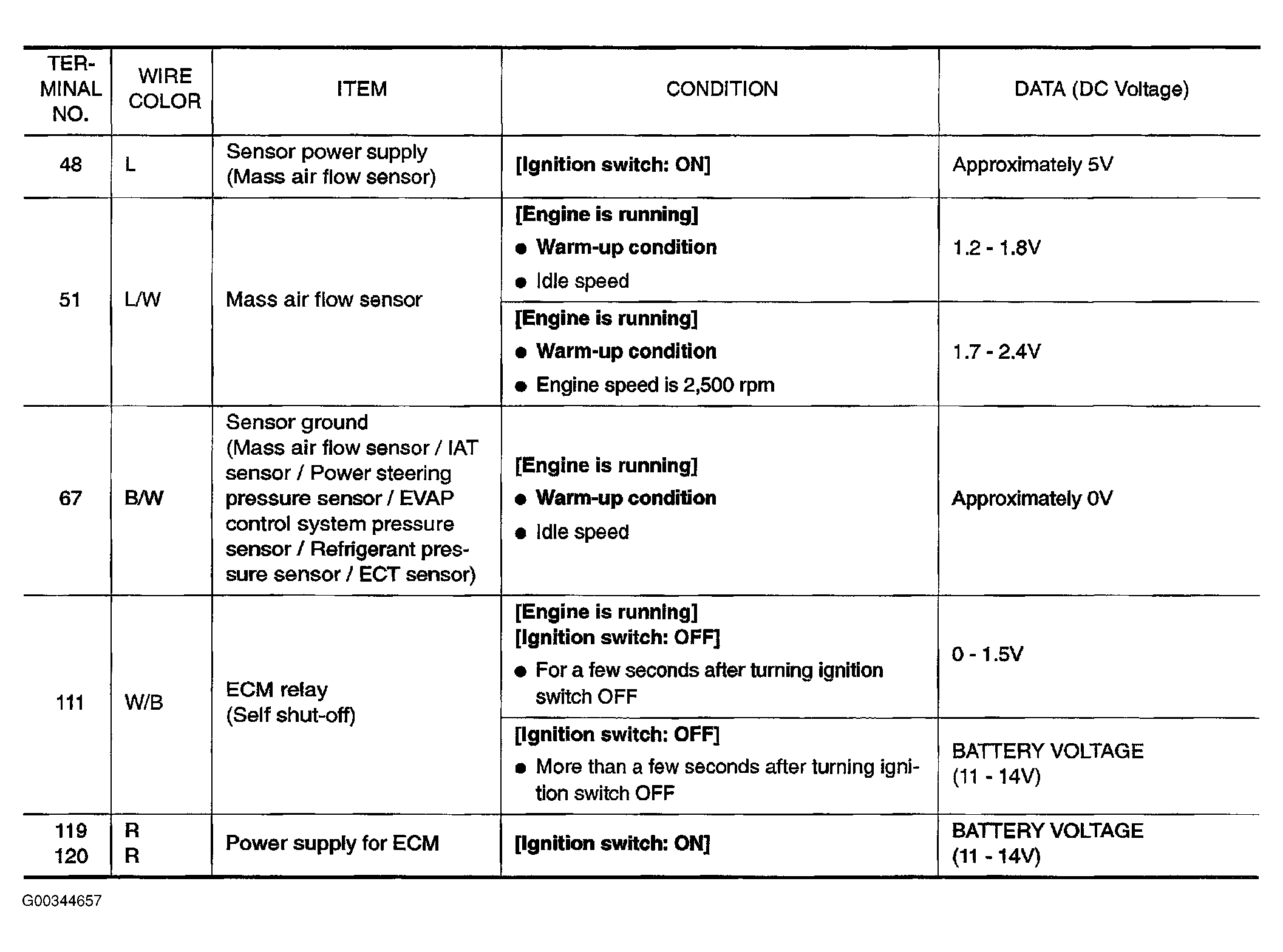

Fig 2: ECM Terminal 48, 51, 67, 111, 119 & 120 Specifications (DTC P0102 & P0103)

Courtesy of NISSAN MOTOR CO., U.S.A.
