On Board Diagnosis Logic

To judge the malfunction of heated oxygen sensor 1, this diagnosis measures response time of heated oxygen sensor 1 signal. The time is compensated by engine operating (speed and load), fuel feedback control constant, and heated oxygen sensor 1 temperature index. Judgment is based on whether the compensated time (heated oxygen sensor 1 cycling time index) is inordinately long or not.

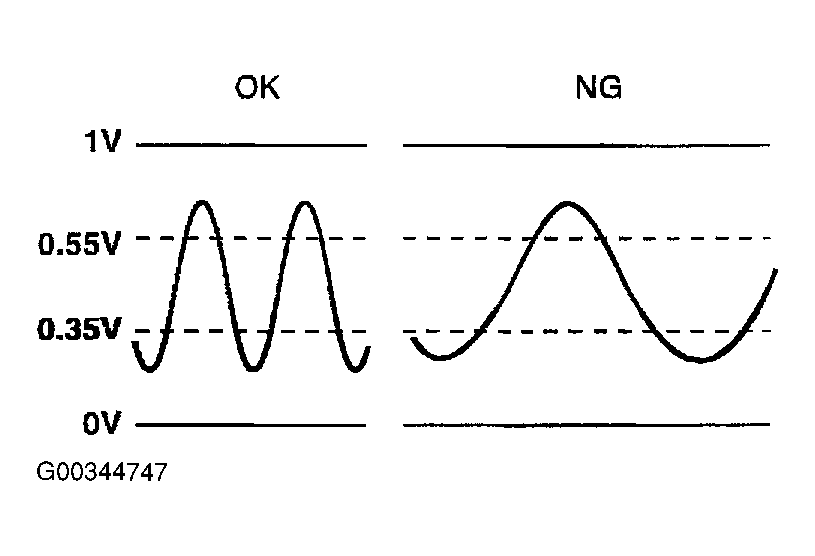

Fig 1: Graphing Heated Oxygen Sensor 1 Signal For DTC P0133 & P0153 (Correct & Incorrect Example)

Courtesy of NISSAN MOTOR CO., U.S.A.

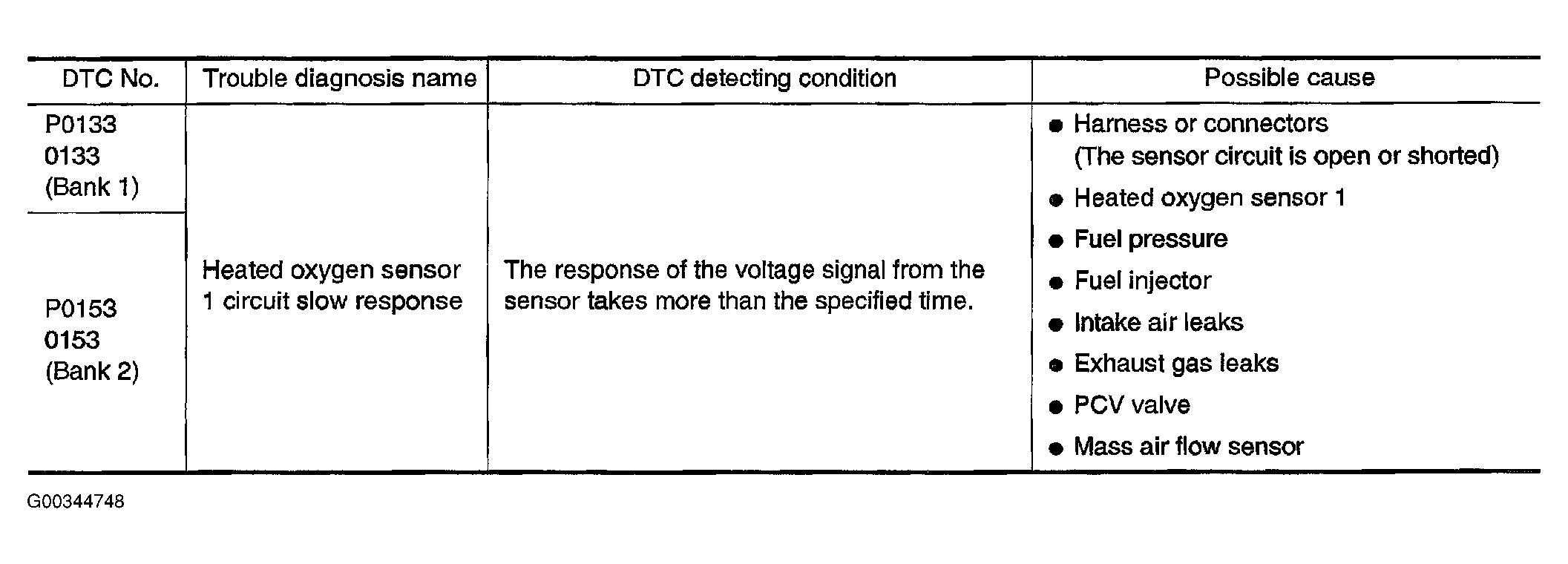

Fig 2: Identifying DTC P0133 & P0153 Conditions & Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.
