Camshaft Position Sensor (PHASE)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.
  5. Check resistance as shown in the figure.

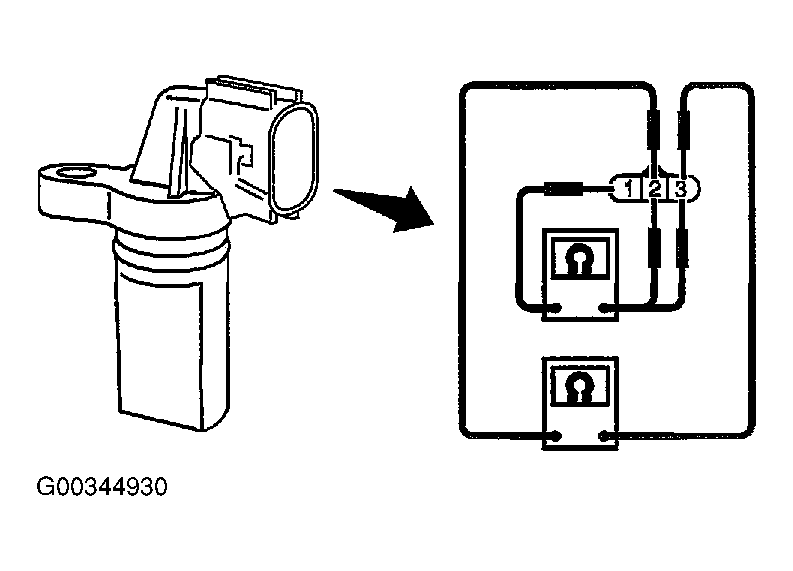

    Fig 1: Testing Camshaft Position Sensor
    G00344930Courtesy of NISSAN MOTOR CO., U.S.A.

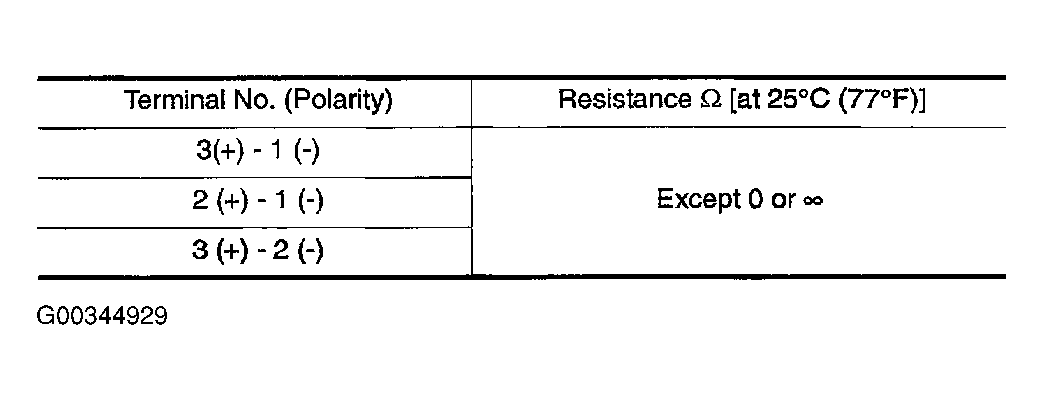

    Fig 2: Identifying Camshaft Position Sensor Specifications
    G00344929Courtesy of NISSAN MOTOR CO., U.S.A.
