DTC P1065 ECM Power Supply: Wiring Diagram

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

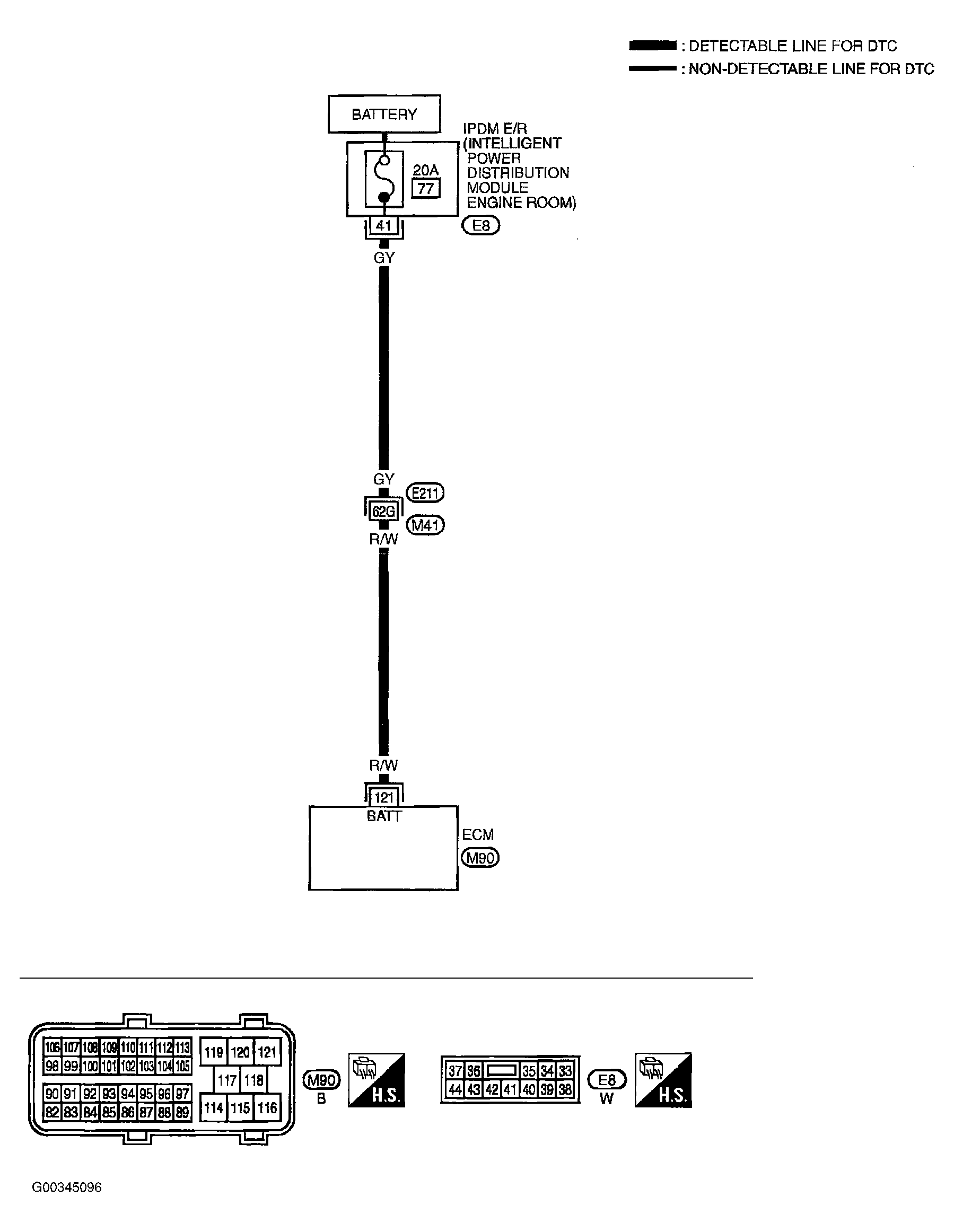

Fig 1: ECM Power Supply Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

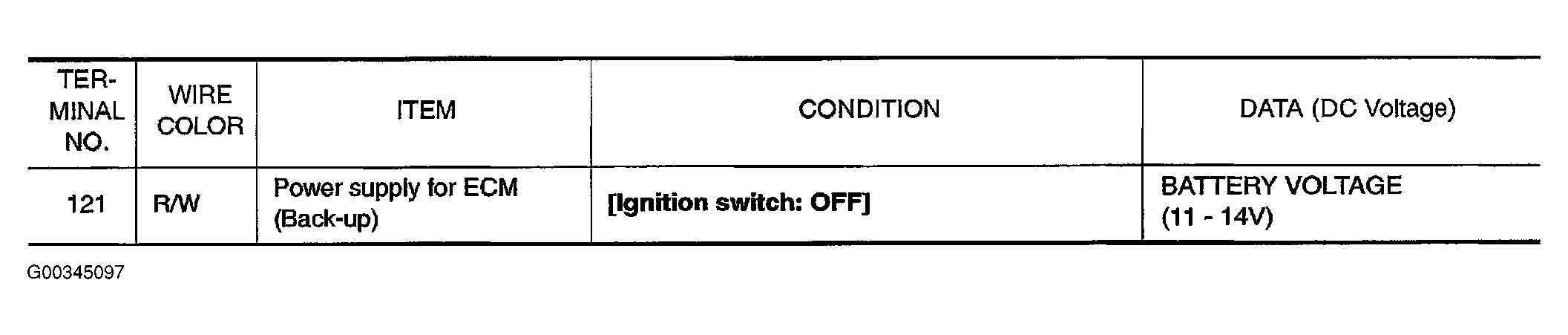

Fig 2: ECM Terminal 121 Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
