DTC P2122 & P2123 App Sensor: Wiring Diagram

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

Fig 1: Accelerator Pedal Position Sensor Circuit (DTC P2122 & P2123 )

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

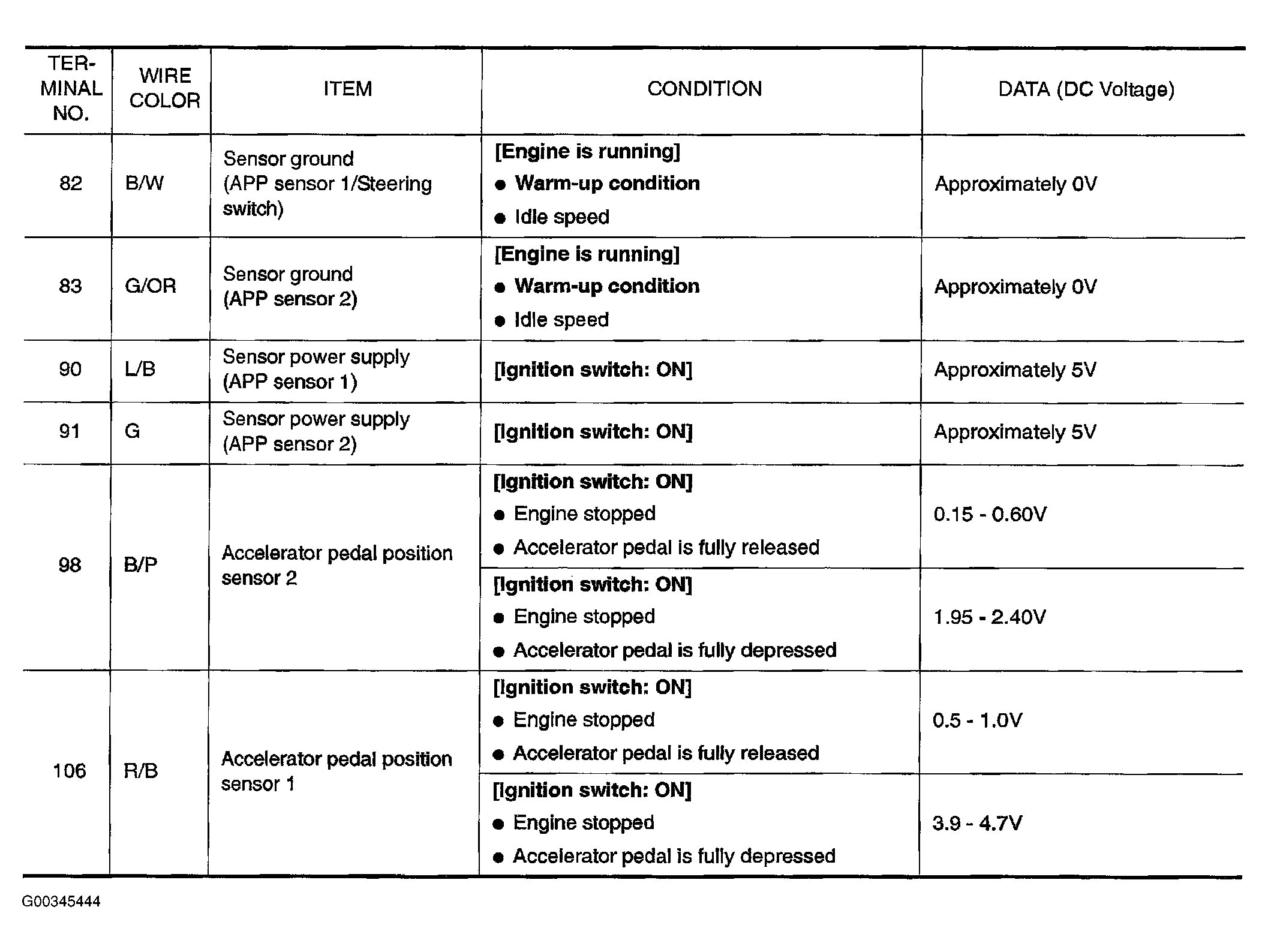

Fig 2: Identifying ECM Terminal 82, 83, 90, 91, 98 & 106 Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
