Testing Condition

Before performing the following procedure, confirm that battery voltage is more than 11V at idle  .

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Select HO2S1 (B1) PO134 or HO2S1 (B2) PO154 of HO2S1 in DTC WORK SUPPORT mode with CONSULT-II.

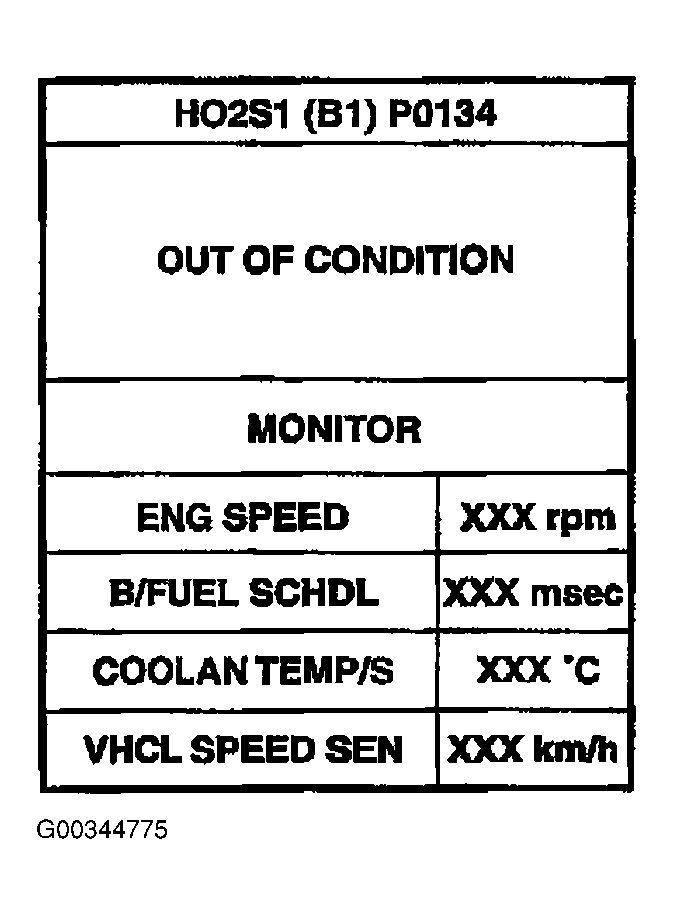

   Fig 1: Displaying DTC P0134 On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Touch START.
NOTE: Do not raise engine speed above 3,000 RPM after this step. If the engine speed limit is exceeded, return to step 4.
4. Let it idle for at least 3 minutes.
5. When the following conditions are met, TESTING will be displayed on the CONSULT-II screen. Maintain the conditions continuously until TESTING changes to COMPLETED. (It will take approximately 10 to 60 seconds.)

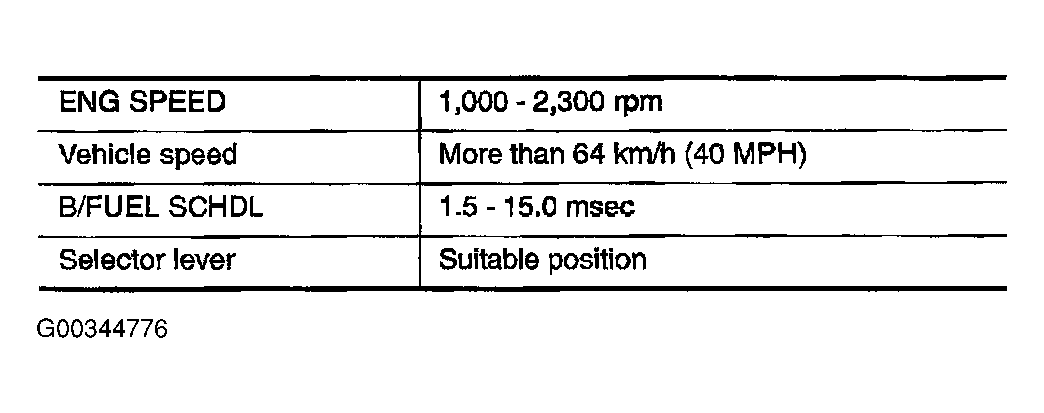

   Fig 2: Identifying Specified Testing Conditions For DTC P0134

   Courtesy of NISSAN MOTOR CO., U.S.A.

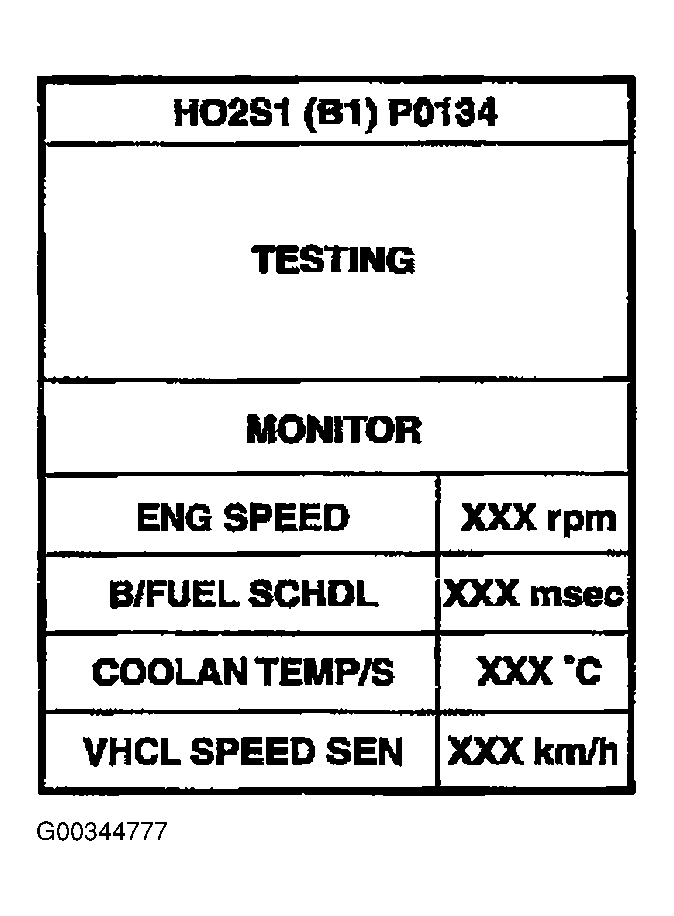

   Fig 3: Testing Vehicle For DTC P0134 Using CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

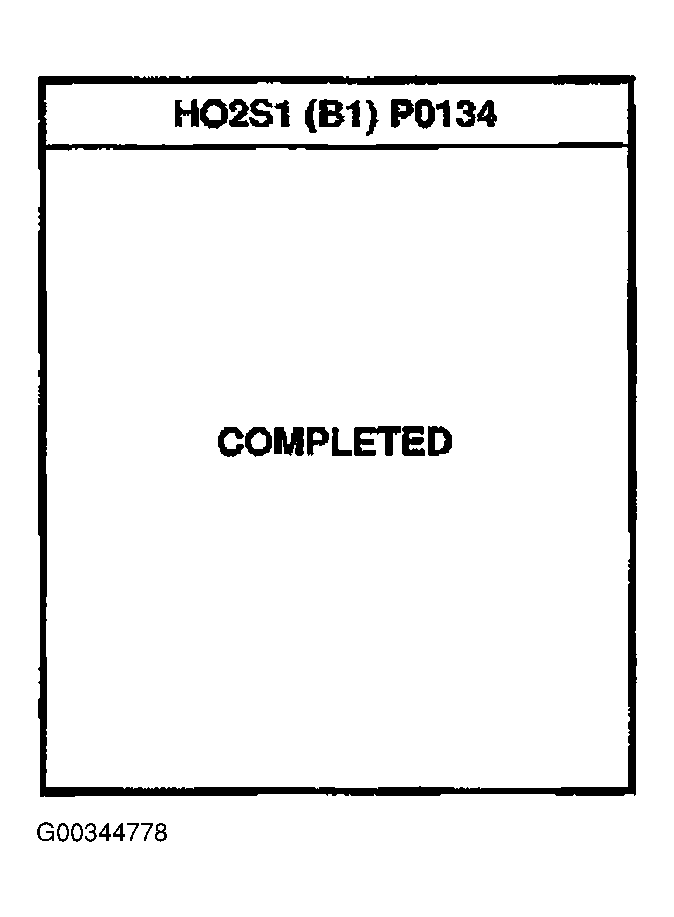

   Fig 4: Displaying Completed For DTC P0134 Testing On CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

   If TESTING is not displayed after 5 minutes, retry from step   2  .

6. Make sure that OK is displayed after touching SELF-DIAG RESULTS. If NG is displayed, Refer to DIAGNOSTIC PROCEDURE  .
