Diagnostic Procedure

  1. Inspection Start

    Start engine.

    Is engine running?

    Yes or No

    1. Yes: go to  8 .
    2. No: go to  2 .

  2. Check ECM Power Supply Circuit-I
    1. Turn ignition switch OFF and then ON.
    2. Check voltage between ECM terminal 109 and ground with CONSULT-II or tester.
      Fig 1: Testing ECM Power Circuit (W/DVOM)
      G00345522Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Voltage: Battery voltage

    OK or NG

    1. OK: go to  4 .
    2. NG: go to  3 .

  3. Detect Malfunctioning Part

    Check the following.

    • Fuse block (J/B) connector M1
    • 15A fuse
    • Harness for open or short between ECM and fuse
      1. Repair open circuit or short to ground or short to power in harness or connectors.

  4. Check Ground Connections
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. See Fig 2 .

      Refer to GROUND INSPECTION  .

      Fig 2: Locating Grounding Connector Screws
      G00344570Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: go to  5 .
    2. NG: Repair or replace ground connections.

  5. Check ECM Ground Circuit For Open And Short-I
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminals 1, 115, 116 and ground.

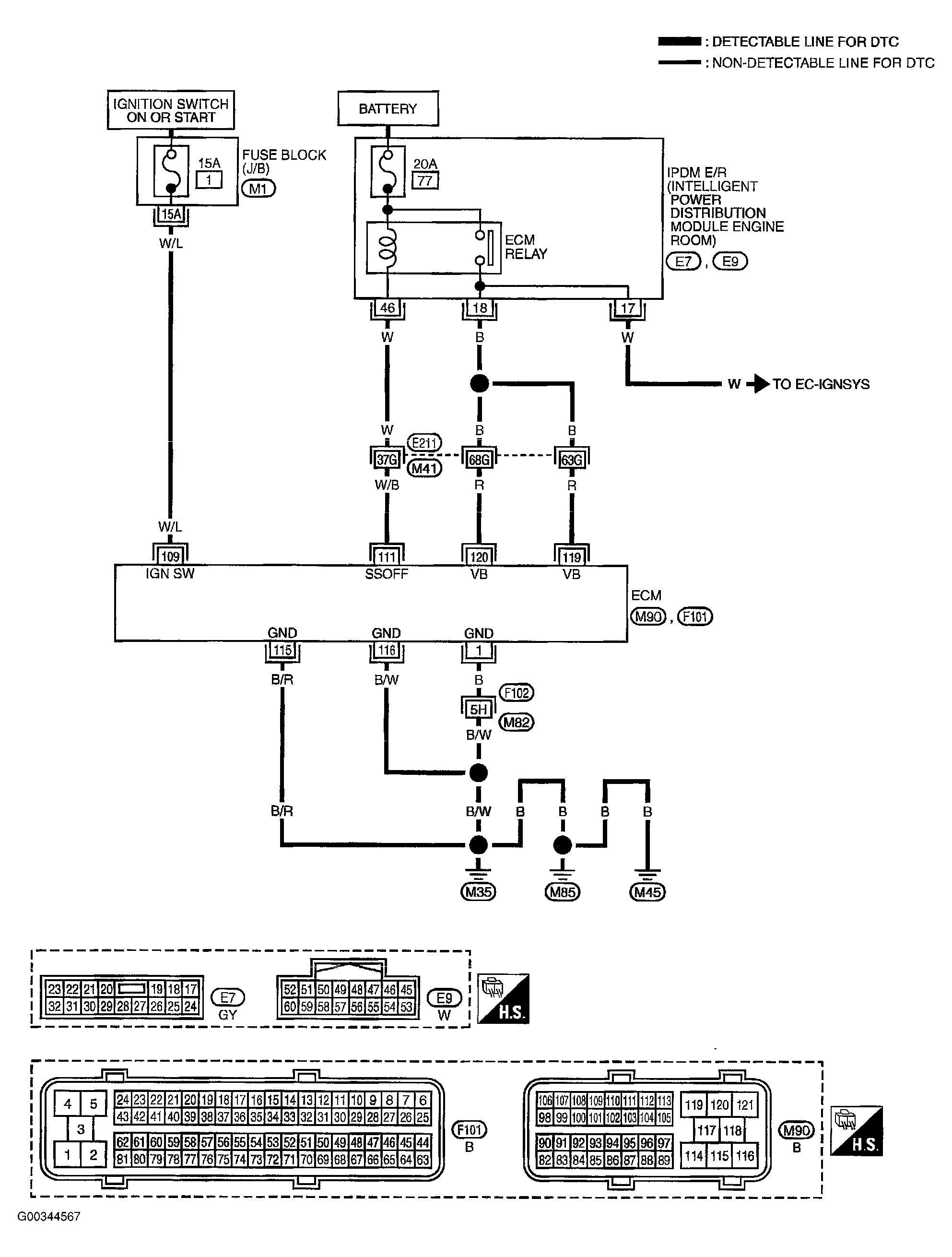

      Refer to Figure .

      1. Continuity should exist  .

    3. Also check harness for short to power.

    OK or NG

    1. OK: go to  7 .
    2. NG: go to  6 .

  6. Detect Malfunctioning Part

    Check the following.

    • Harness connectors F102, M82
    • Harness for open or short between ECM and ground
      1. Repair open circuit or short to power in harness or connectors.

  7. Check ECM Power Supply Circuit-II
    1. Reconnect ECM harness connector.
    2. Turn ignition switch ON.
    3. Check voltage between IPDM E/R terminal 17 and ground with CONSULT-II or tester.

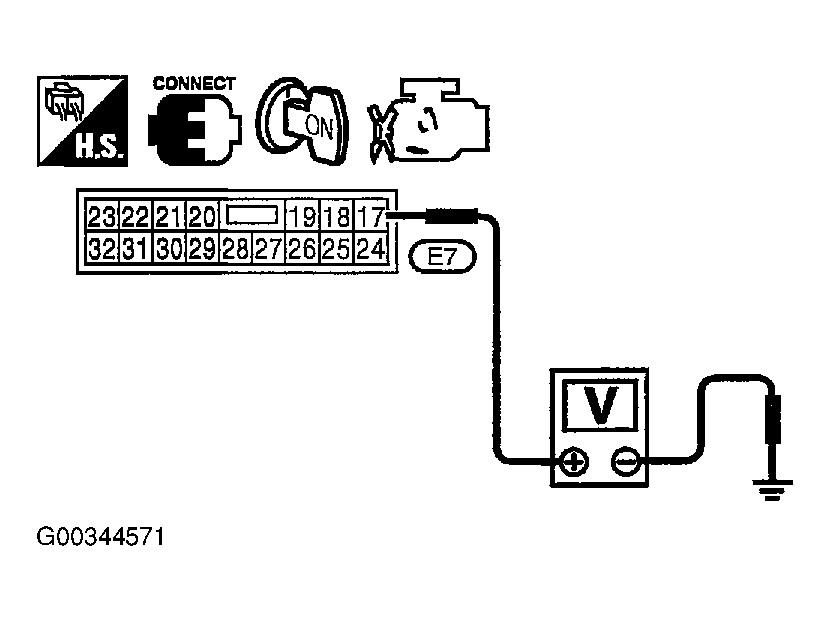

      Fig 3: Checking Voltage Between IPDM E/R Connector Terminal 17 & Ground (W/DVOM)
      G00344571Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Voltage: Battery voltage

    OK or NG

    1. OK: go to IGNITION SIGNAL  .
    2. NG: go to  8 .

  8. Check ECM Power Supply Circuit-III
    1. Turn ignition switch ON and then OFF.
    2. Check voltage between ECM terminals 119, 120 and ground with CONSULT-II or tester.
      1. Voltage: After turning ignition switch OFF, battery voltage will exist for a few seconds, then drop approximately 0V  .

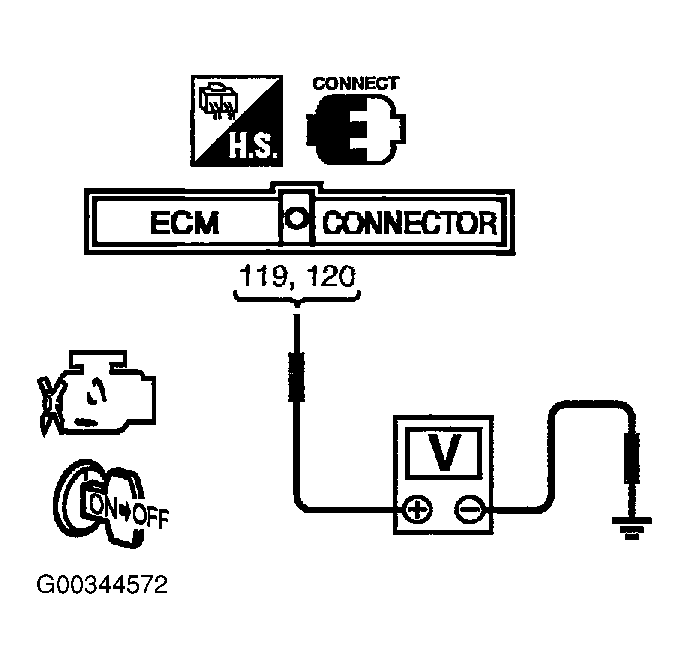

        Fig 4: Monitoring Voltage ECM Connector Terminal 109 To Ground (W/DVOM)
        G00344572Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: go to  18 .
    2. NG (Battery voltage does not exist.): go to  9 .
    3. NG (Battery voltage exists for more than a few seconds.): go to  18 .

  9. Check ECM Power Supply Circuit-IV
    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Check voltage between ECM terminal 111 and ground with CONSULT-II or tester.

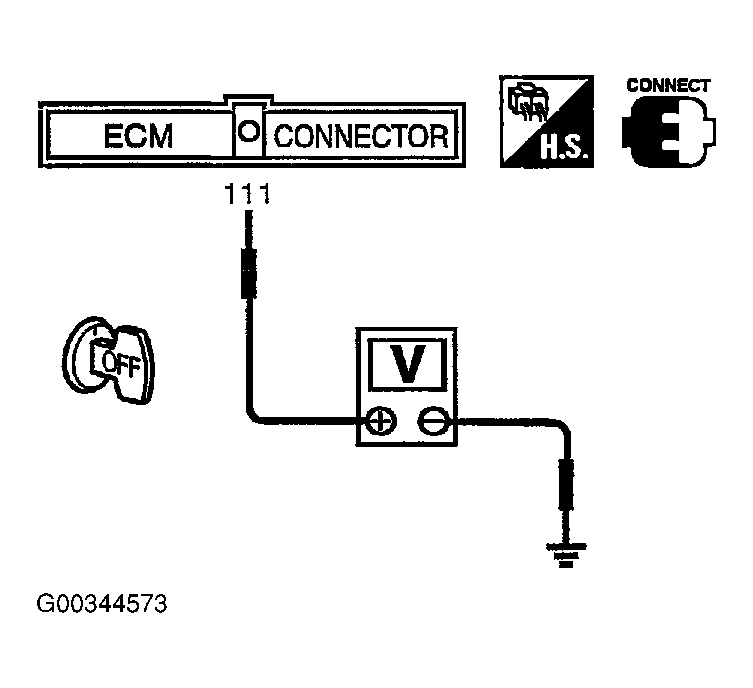

      Fig 5: Checking Voltage Between ECM Connector Terminal 111 & Ground (W/DVOM)
      G00344573Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Voltage: Battery voltage

    OK or NG

    1. OK: go to  10 .
    2. NG: go to  12 .

  10. Check ECM Power Supply Circuit-V
    1. Disconnect ECM harness connector.
    2. Disconnect IPDM E/R harness connector E7.
    3. Check harness continuity between ECM terminals 119, 120 and IPDM E/R terminal 18. Refer to wiring diagram, see Figure .
      1. Continuity should exist  .
    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: go to  15 .
    2. NG: go to  11 .

  11. Detect Malfunctioning Part

    Check the following.

    • Harness or connectors E211, M41
    • Harness for open or short between ECM and IPDM E/R
      1. Repair open circuit or short to ground or short to power in harness or connectors.

  12. Check ECM Power Supply Circuit-VI
    1. Disconnect ECM harness connector.
    2. Disconnect IPDM E/R harness connector.
    3. Check harness continuity between ECM terminal 111 and IPDM E/R terminal 46. Refer to wiring diagram, see Figure .
      1. Continuity should exist  .
    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: go to  14 .
    2. NG: go to  13 .

  13. Detect Malfunctioning Part

    Check the following.

    • Harness or connectors E211, M41
    • Harness for open or short between ECM and IPDM E/R
      1. Repair open circuit or short to ground or short to power in harness or connectors.

  14. Check 20A Fuse
    1. Disconnect 20A fuse from IPDM E/R.
    2. Check 20A fuse.

    OK or NG

    1. OK: go to  18 .
    2. NG: Replace 20A fuse.

  15. Check Ground Connections
    1. Loosen and retighten three ground screws on the body. See Fig 2 .

      Refer to GROUND INSPECTION  .

    OK or NG

    1. OK: go to  16 .
    2. NG: Repair or replace ground connections.

  16. Check ECM Ground Circuit For Open And Short-II
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminals 1, 115, 116 and ground.

      Refer to wiring diagram. See Figure .

      1. Continuity should exist  .
    3. Also check harness for short to power.

    OK or NG

    1. OK: go to  18 .
    2. NG: go to  17 .

  17. Detect Malfunctioning Part

    Check the following.

    • Harness or connectors F102, M82
    • Harness for open or short between ECM and ground
      1. Repair open circuit or short to power in harness or connectors.
  18. Check Intermittent Incident

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

    OK or NG

    1. OK: Replace IPDM E/R.
    2. NG: Repair open circuit or short to power in harness or connectors.
