Thrust Washer Selection

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Apply gear oil to contact surfaces of each gear, thrust washers and differential case.
Install the removed thrust washer or same thickness washer to side gear.

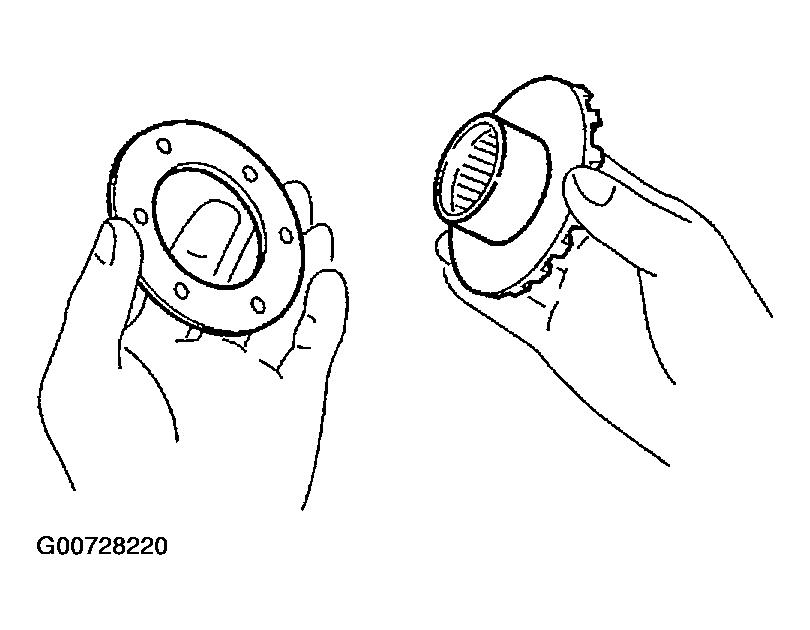

Fig 1: Installing The Thrust Washer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the side gears, thrust washers, pinion mate gears and thrust washers into differential case.

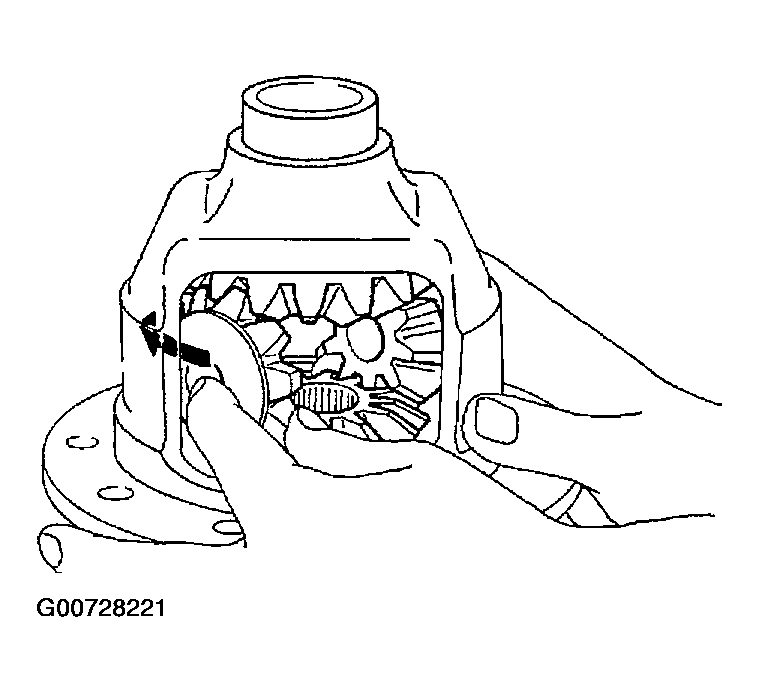

Fig 2: Installing The Side Gears, Thrust Washers, Pinion Mate Gears And Thrust Washers Into Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install pinion mate shaft to differential case so that it meets lock pin holes.

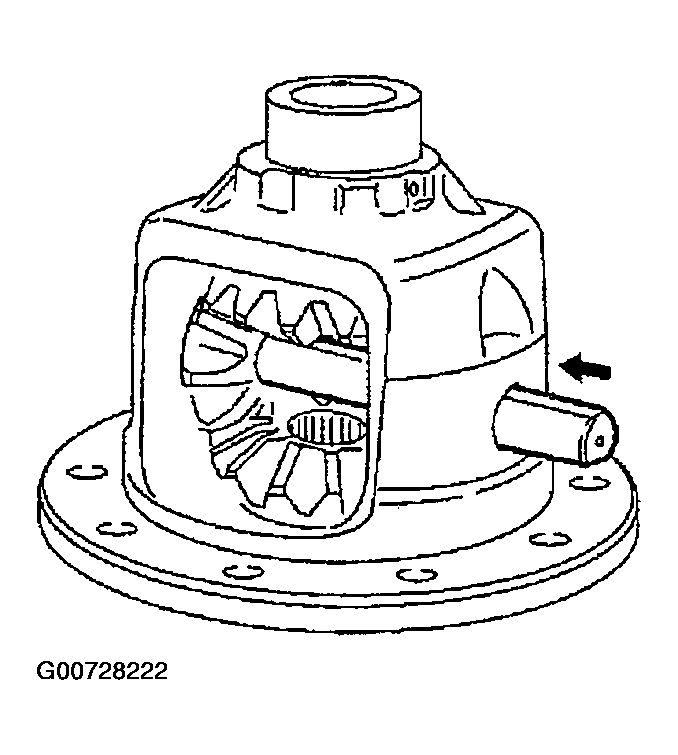

Fig 3: Installing Pinion Mate Shaft To Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust clearance between rear face of side gear and thrust washer by selecting side gear thrust washer. Refer to SIDE GEAR ADJUSTMENT . Use two feeler gauges to prevent leaning of side gear as showing figure.
Clearance between side gear thrust washer and differential case:

0.20 mm (0.0079 in) or less

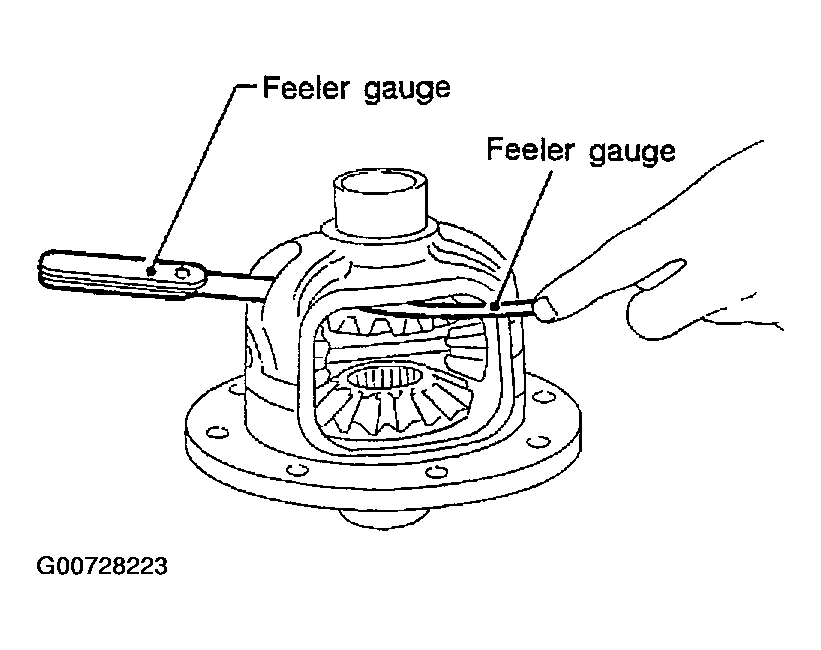

Fig 4: Checking Clearance Between Side Gear Thrust Washer And Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure lock pin is flush with case.

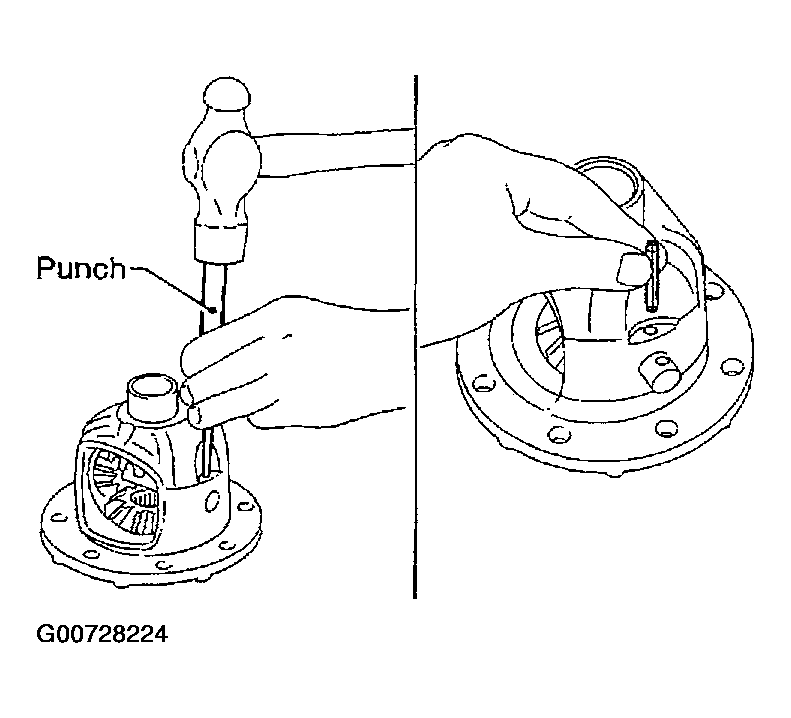

Fig 5: Installing Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.

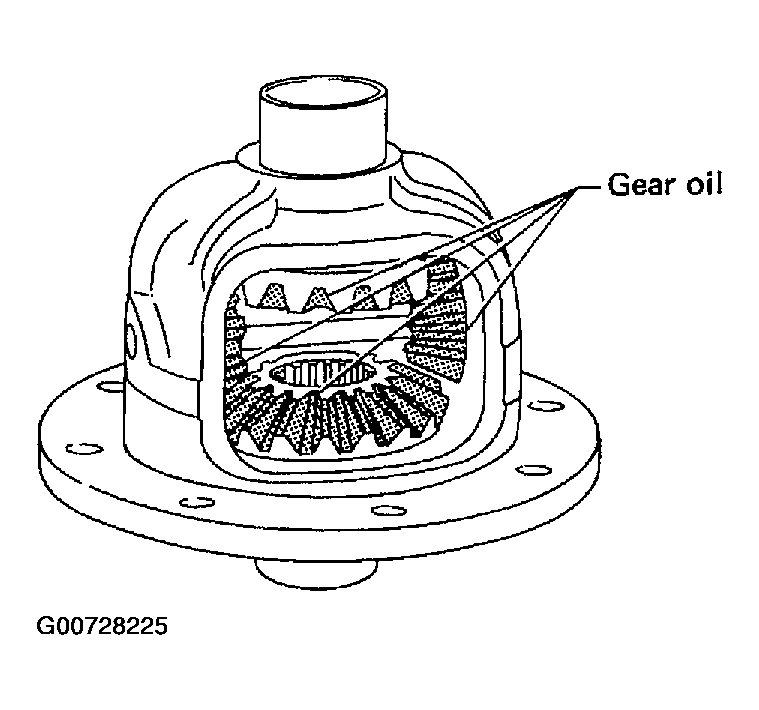

Apply gear oil to gear tooth surfaces and thrust surfaces and check to see they turn properly.
Install differential case assembly on drive gear.
- Tighten bolts in a crisscross pattern, lightly tapping bolt head with a hammer.
Fig 6: Applying Gear Oil To Gear Tooth Surfaces And Thrust Surfaces
Courtesy of NISSAN MOTOR CO., U.S.A.

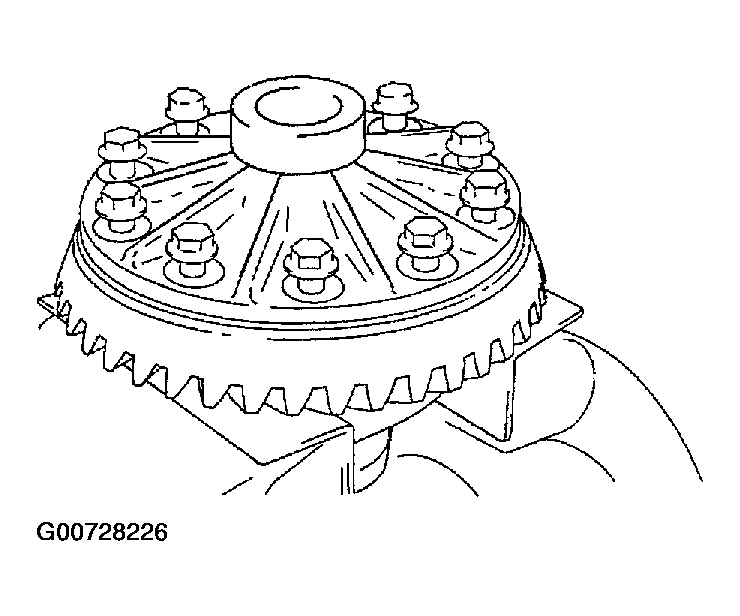

Place differential case on drive gear. Tighten bolts in a crisscross fashion.

Fig 7: Placing Differential Case On Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Press-fit side bearing inner race on differential case using Tools.
Tool number A : KV38100300 (J25523)

Tool number B : ST33081000 (-)

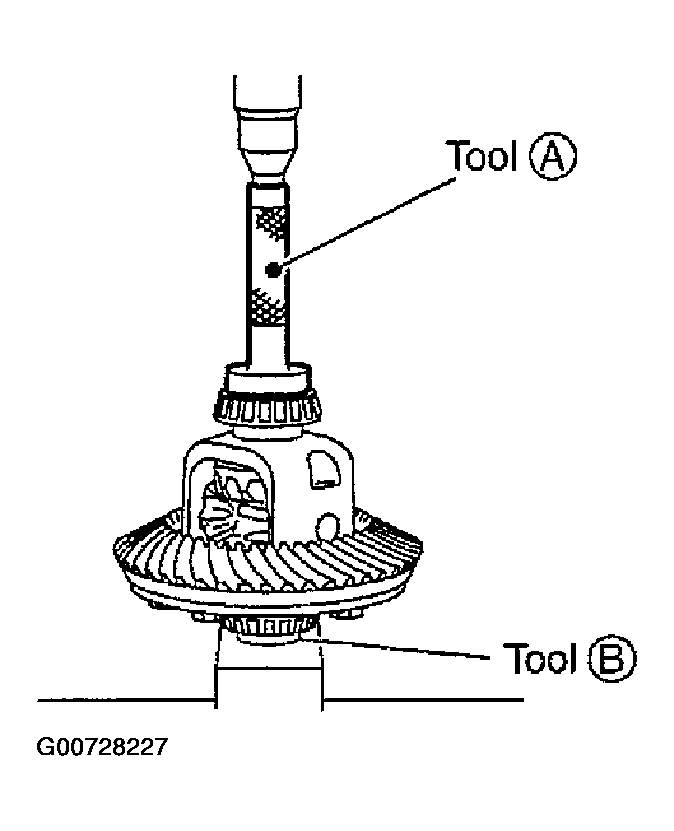

Fig 8: Press-Fitting Side Bearing Inner Race On Differential Case

Courtesy of NISSAN MOTOR CO., U.S.A.
