AWD Model

WARNING: This page is about a different car, the 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Align cutout on oil cooler with protrusion on oil filter bracket.

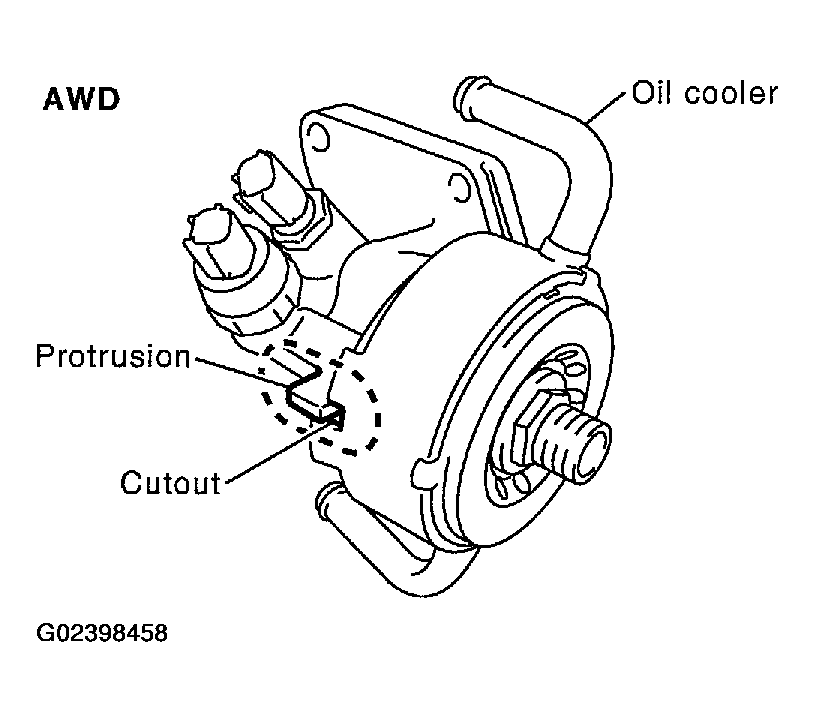

Fig 1: Aligning Cutout On Oil Cooler With Protrusion On Oil Filter Bracket
G02398458Courtesy of NISSAN MOTOR CO., U.S.A.
