Vacuum Hose Drawing

WARNING: This page is about a different car, the 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

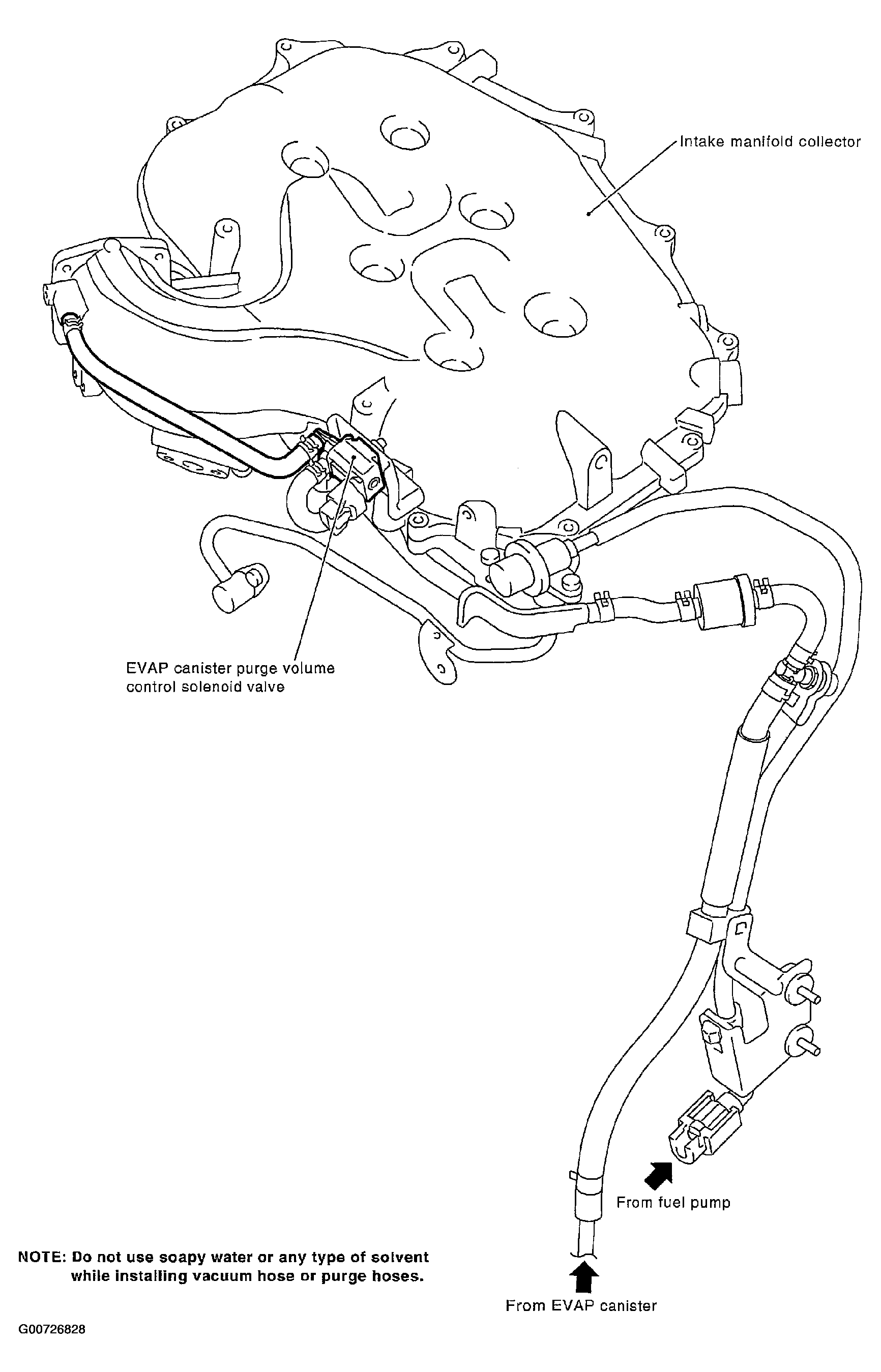

Fig 1: Vacuum Hose Schematic

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Refer to SYSTEM DIAGRAM for Vacuum Control System.
