Removal And Installation

Refer to Components for tightening torque. Install in the reverse order of removal.
NOTE: Refer to component parts location and do not reuse non-reusable parts.

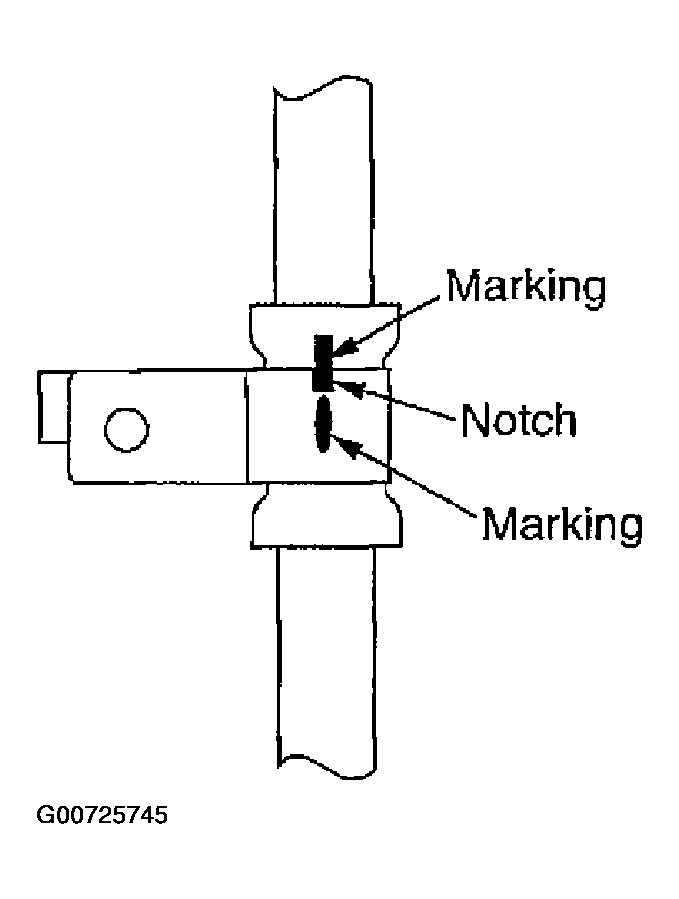

Confirm with mating marking that if it is in phase with hose and clamp, then correct if needs.

Fig 1: Confirming Mating Marking
Courtesy of NISSAN MOTOR CO., U.S.A.

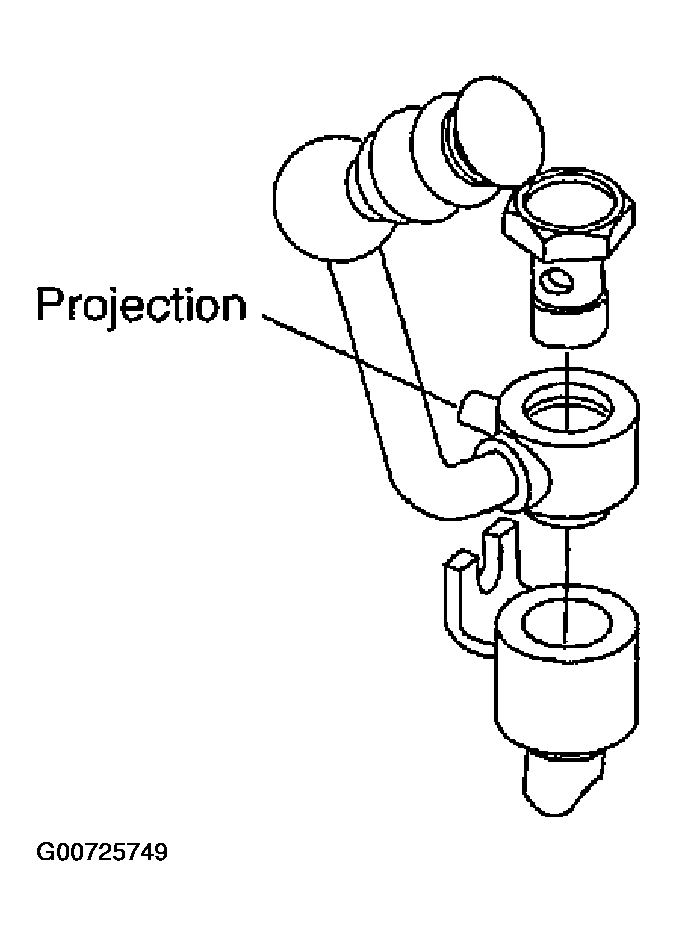

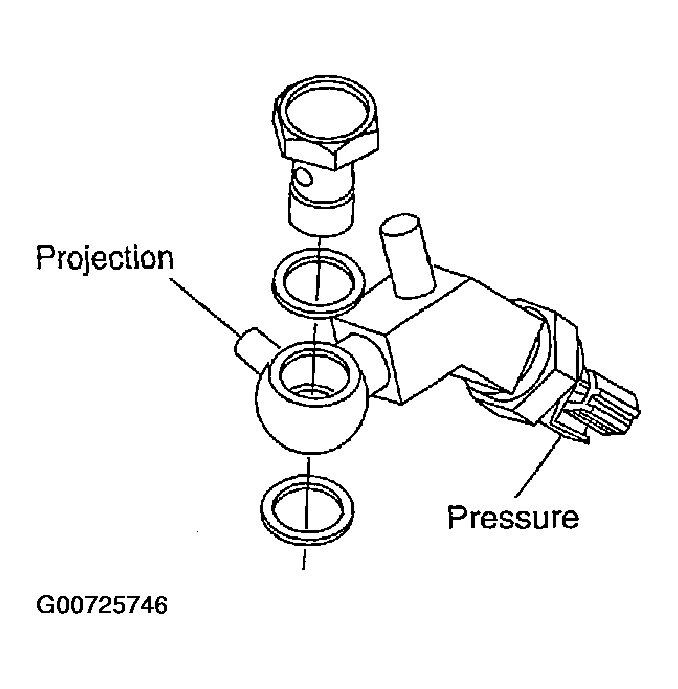

To install eye joint, join projection of eye joint into notch of power steering pump, and attach eye joint to power steering pump properly. Then, tighten eye bolt by hands fully, and tighten it with a specified torque.
Connect harness connector into pressure sensor securely.

Fig 2: Installing Eye Joint
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for tightening torque. Install in the reverse order of removal.
NOTE: Refer to component parts location and do not reuse non-reusable parts.
Confirm with mating marking that if it is in phase with hose and clamp, then correct if needs.

Fig 1: Confirming Mating Marking
Courtesy of NISSAN MOTOR CO., U.S.A.
To install eye joint, join projection of eye joint into notch of power steering pump, and attach eye joint to power steering pump properly. Then, tighten eye bolt by hands fully, and tighten it with a specified torque.

Fig 2: Installing Eye Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
