Steering Outer Socket And Inner Socket

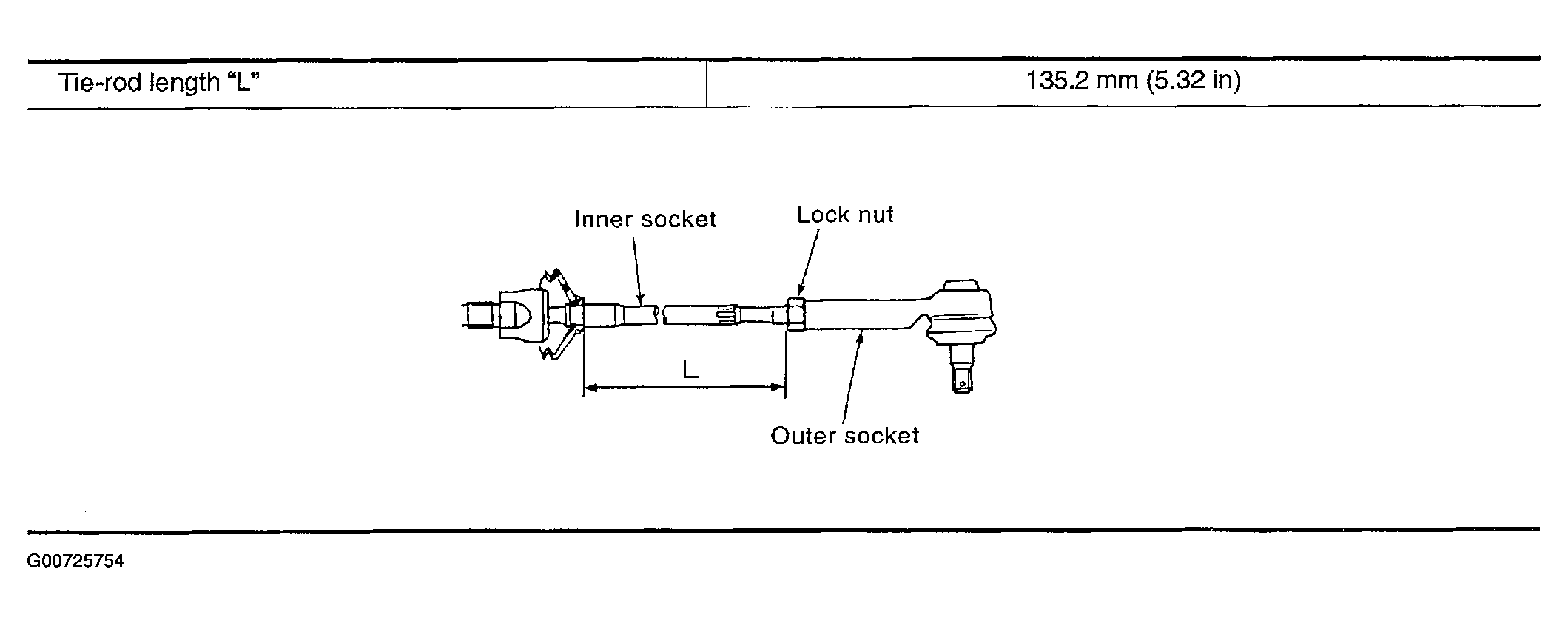

Fig 1: Steering Outer & Inner Socket Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

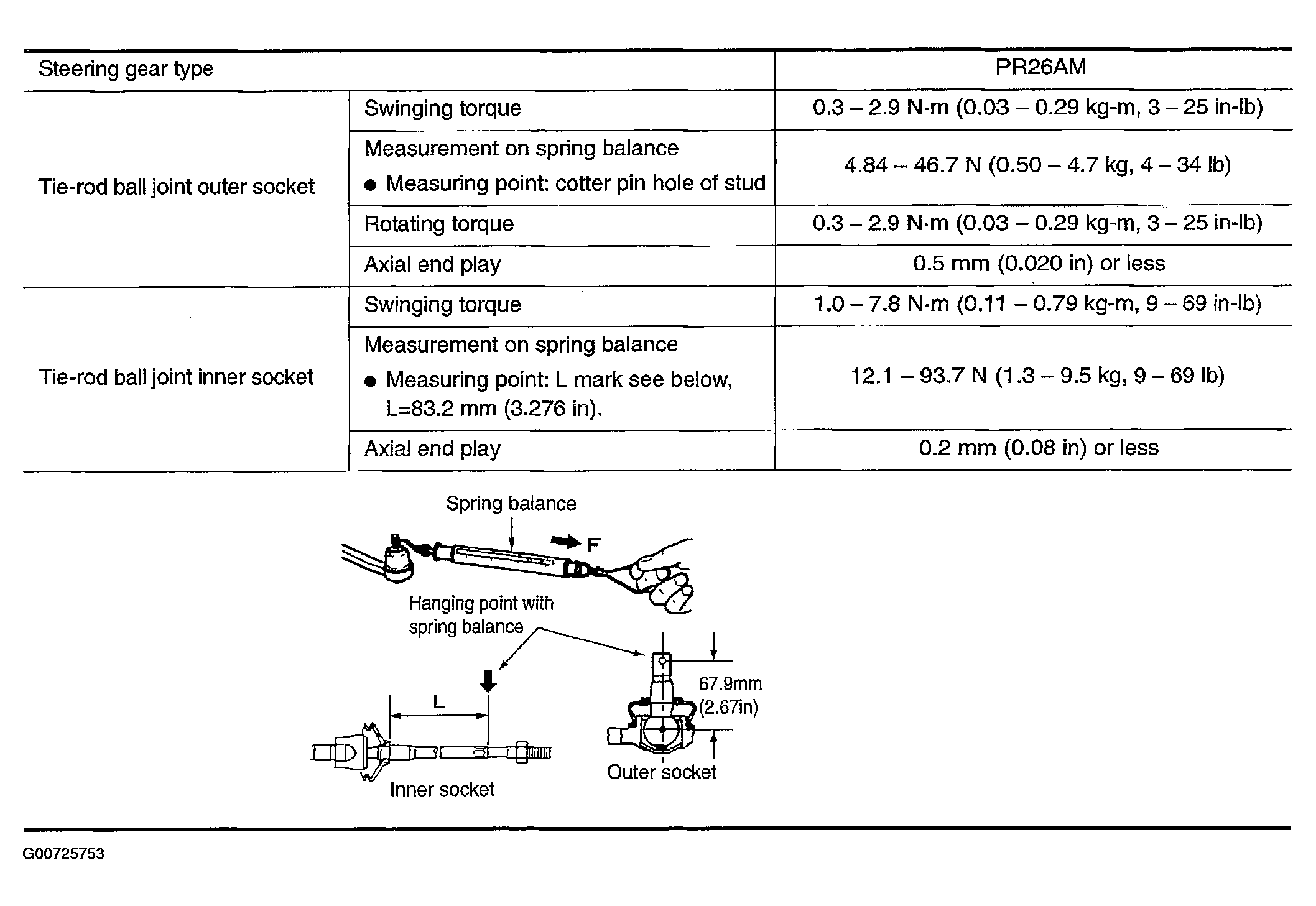

Fig 2: Steering Outer & Inner Socket Specifications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
