Inspection After Installation

After installing steering column to vehicle, check tilt device and its operation range. Ranges of operation are shown in the figure.
Check if steering wheel operation can turn to the end of the left and right smoothly.

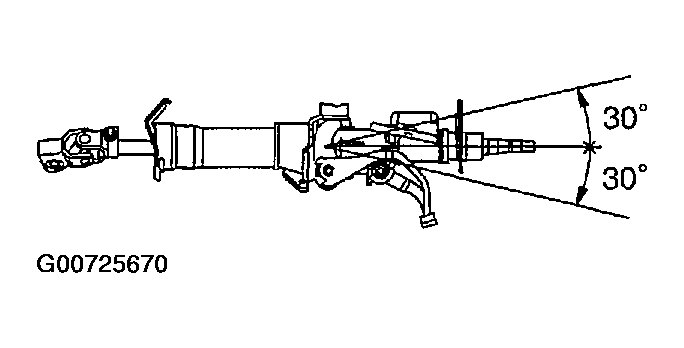

Fig 1: Checking Tilt Device & Operation Range
Courtesy of NISSAN MOTOR CO., U.S.A.
