Check Input Signals: Notes

  1. Start engine.
  2. Select "MAIN SIGNALS" in "DATA MONITOR" mode for A/T with CONSULT-II and read out the value of "GEAR".

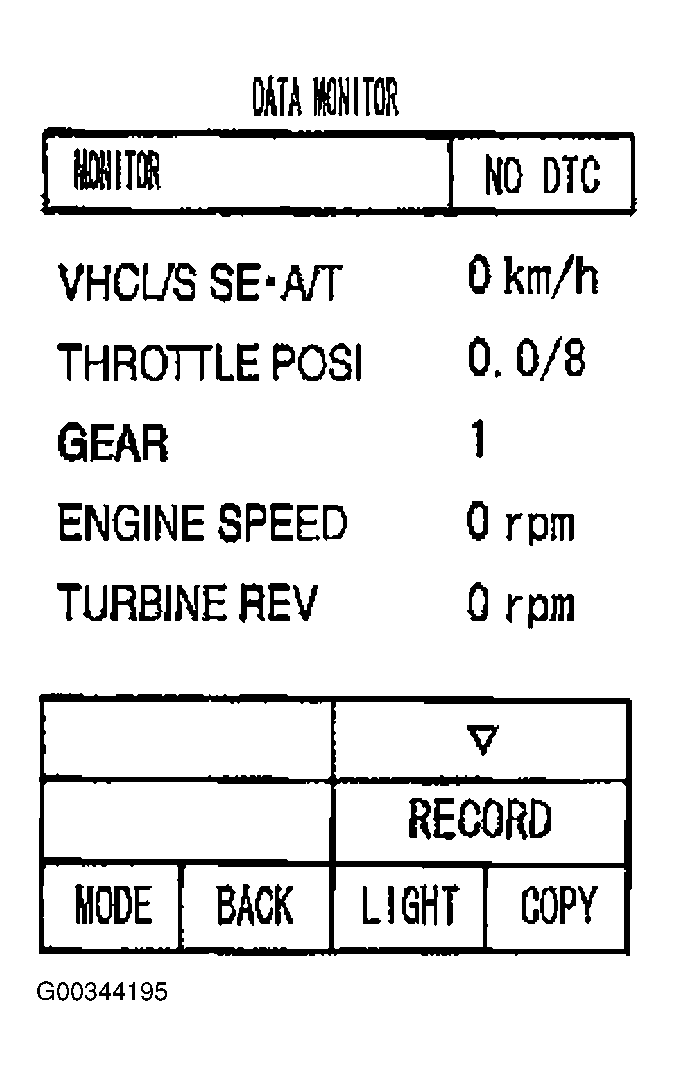

    Fig 1: Viewing "Main Signals" In DATA MONITOR Mode
    G00344195Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of the position mutually coincide when the selector lever is shifted to the "+ (up)" or "- (down)" side (1st => 5th gear).

    OK or NG

    1. OK: INSPECTION END
    2. NG: Check the following items in A/T POSITION INDICATOR SYMPTOM CHART  .
