CONSULT-II Reference Value in Data Monitor Mode

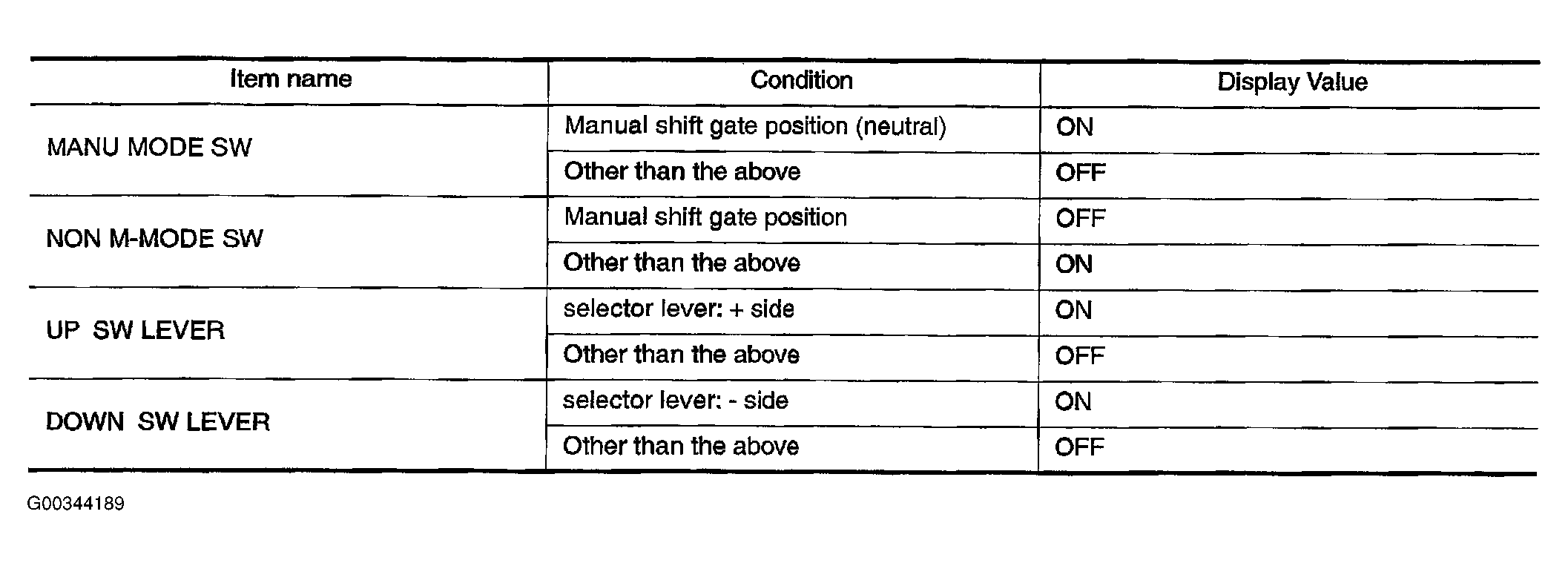

Fig 1: Component Display Values Under Various Conditions
G00344189Courtesy of NISSAN MOTOR CO., U.S.A.
