Transfer Fluid: Replacement: Filling

Remove filler plug and add transfer fluid until fluid level reaches the specified limit near filler plug mounting hole.
1. Fluid capacity :
2. Approx. 1.25 l (2-5/8 US pt, 2-1/4 lmp pt)
CAUTION: Carefully fill the fluid. (Fill up for approx. 3 minutes.)
Leave the vehicle for 3 minutes, and check the fluid level again.
Set a new gasket onto filler plug and install it on transfer and tighten to the specified torque. Refer to COMPONENTS .
CAUTION: Do not reuse gasket.

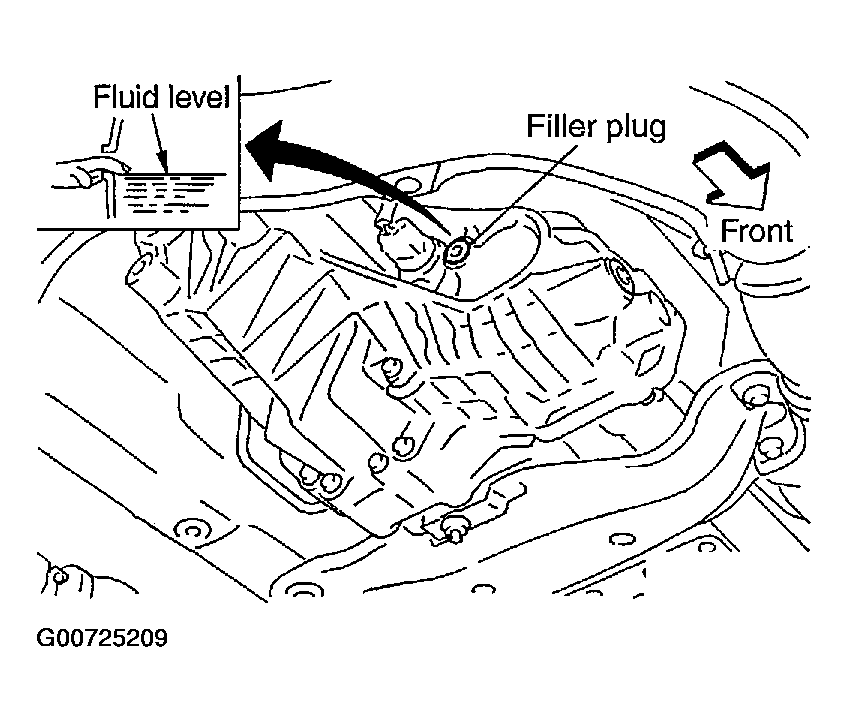

Fig 1: Locating Filler Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
