Ignition Timing

Any of following two methods may be used.

Method A

1. Attach timing light to loop wire as shown.

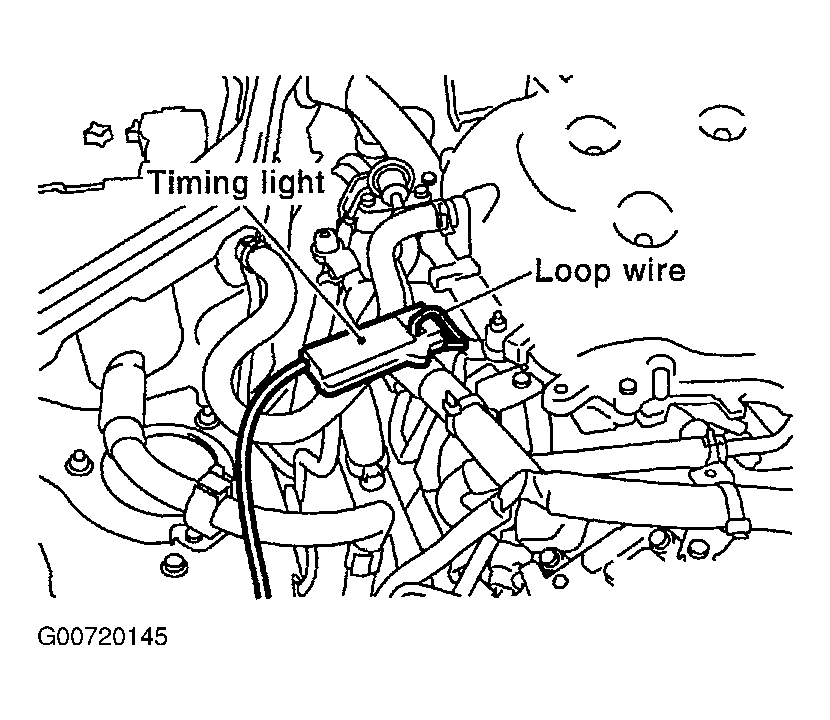

   Fig 1: Checking Ignition Timing (Method A)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.

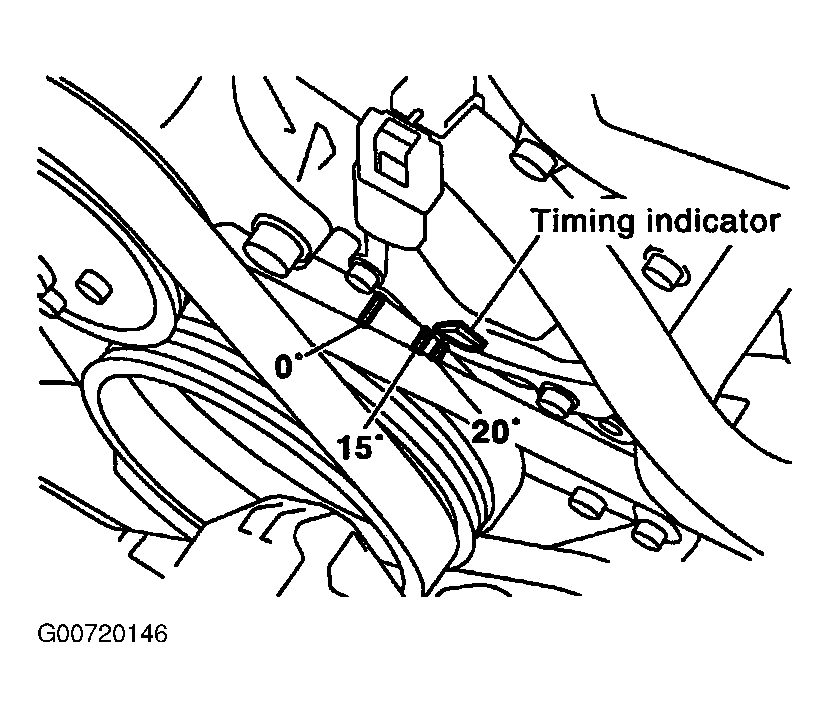

   Fig 2: Locating Timing Indicator

   Courtesy of NISSAN MOTOR CO., U.S.A.

Method B

1. Remove No. 1 ignition coil.

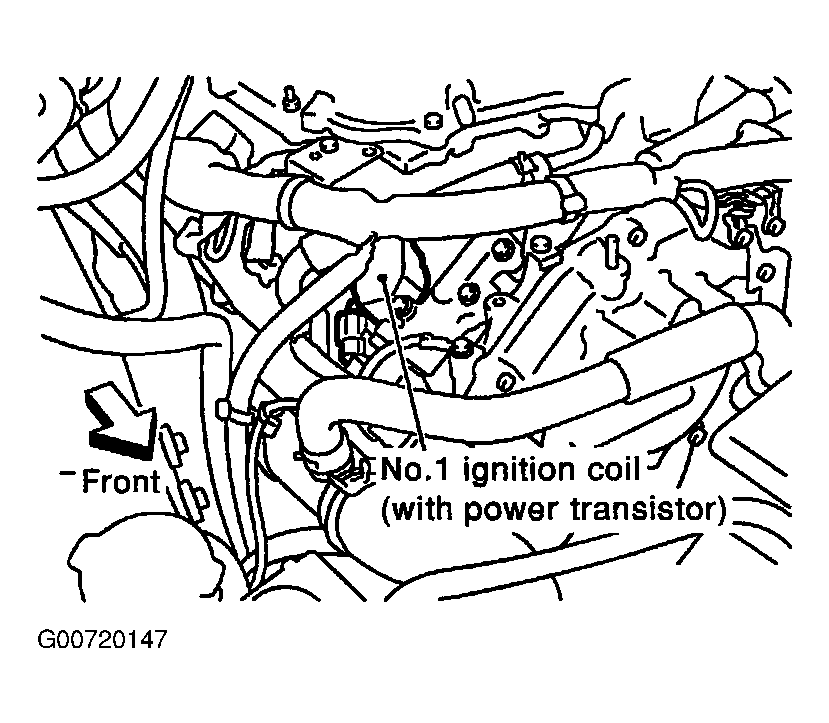

   Fig 3: Checking Ignition Timing (Method B)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

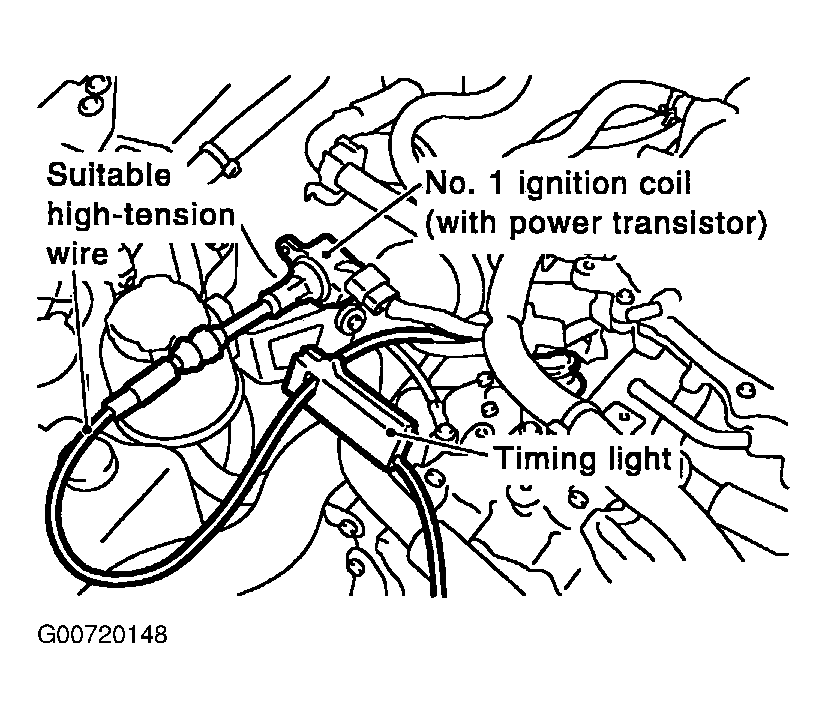

   Fig 4: Checking Ignition Timing (Method B)

   Courtesy of NISSAN MOTOR CO., U.S.A.

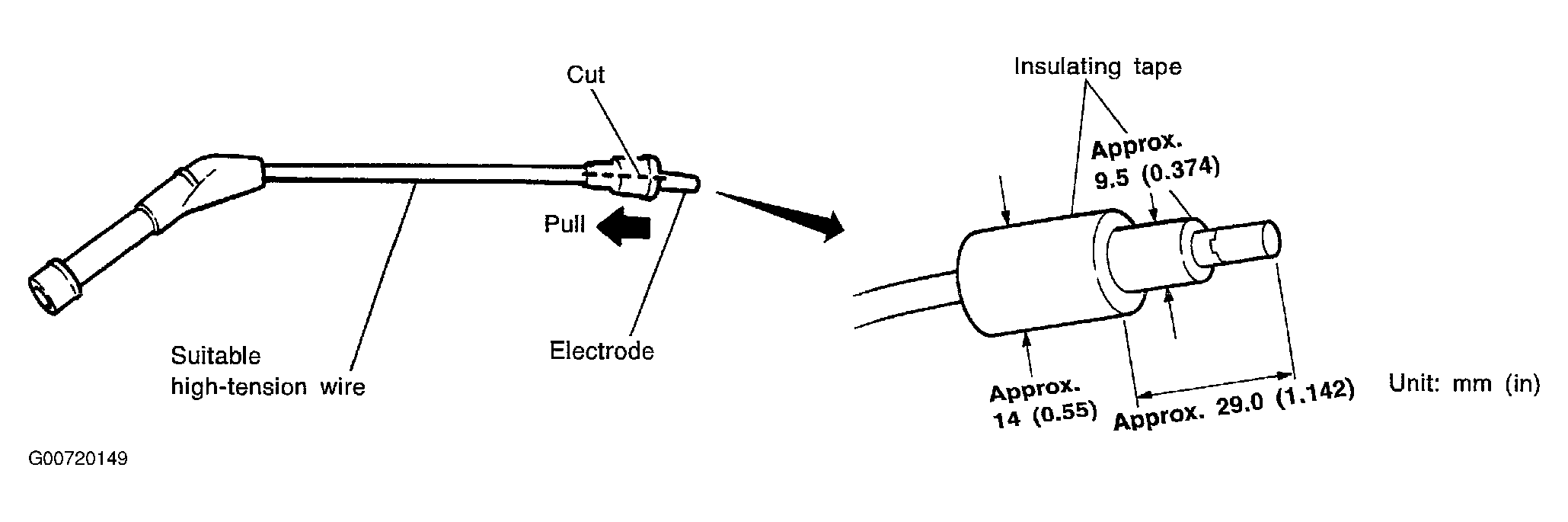

   Fig 5: Checking Ignition Timing (Method B)

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check ignition timing. See Fig 2.
