2004 - Engine Control System - Coupe
>>
Engine Control System
>>
Air Conditioning Cut Control
>>
Input/Output Signal Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Input/Output Signal Chart

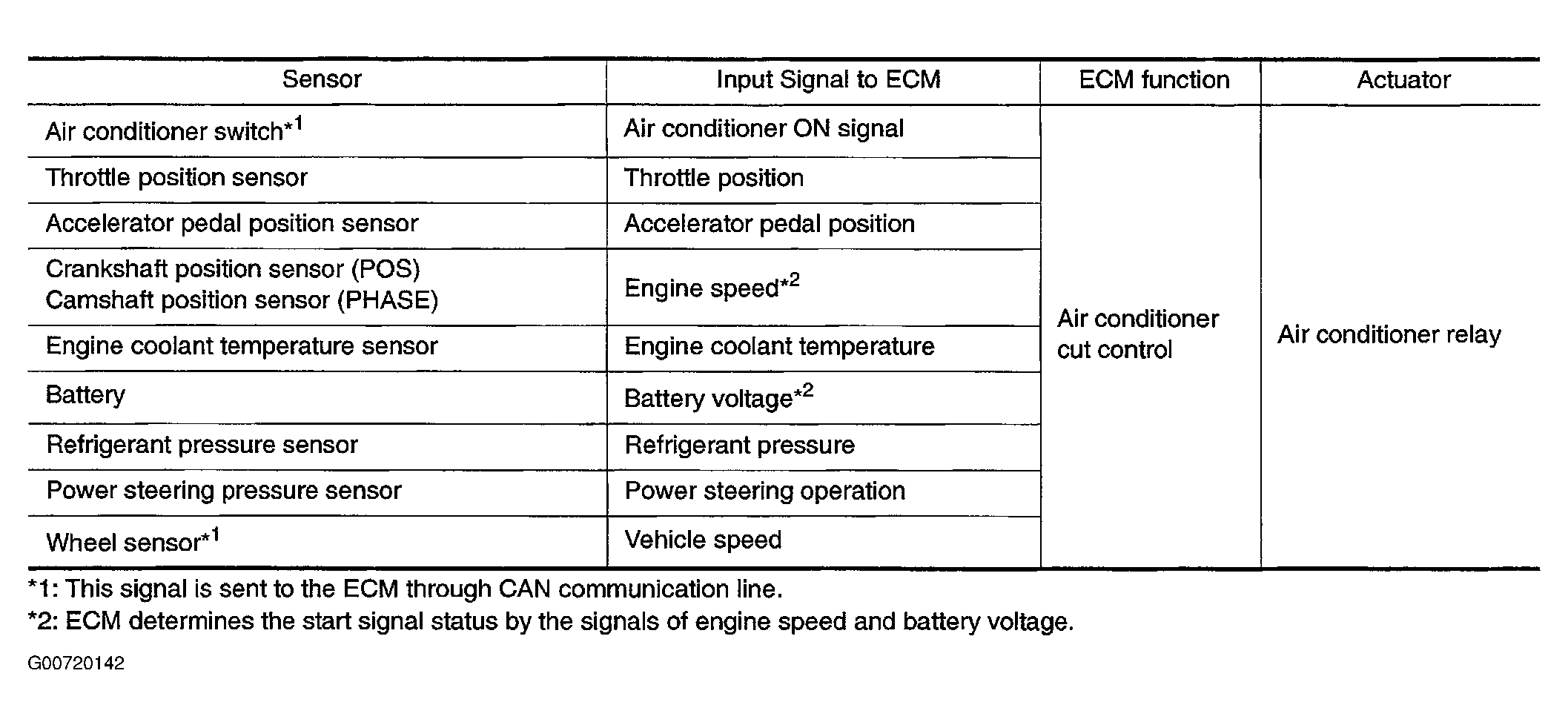

Fig 1: Air Conditioning Cut Control Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
