Vacuum Hose Drawing

Refer to "System Diagram " for Vacuum Control System.

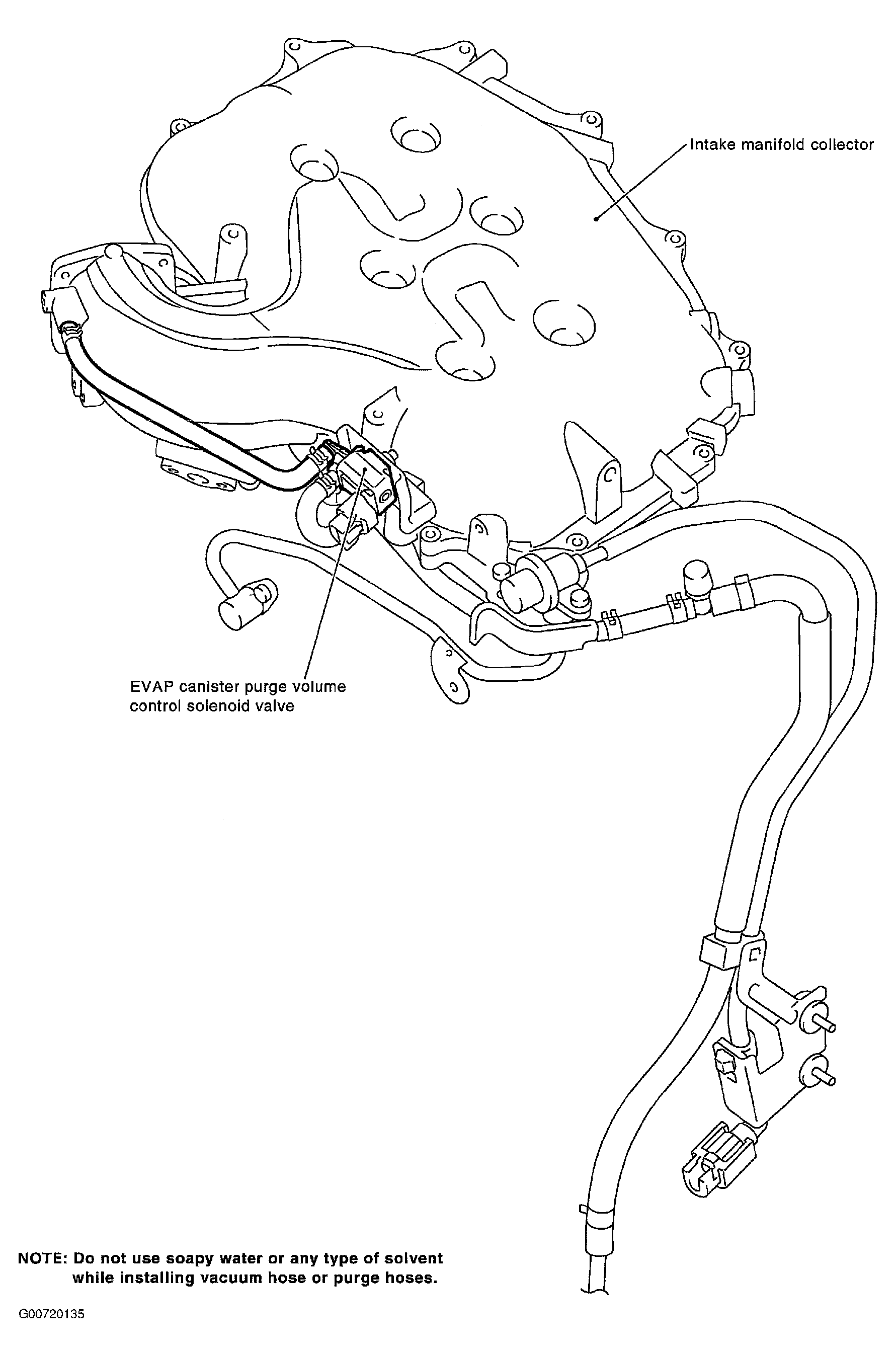

Fig 1: Vacuum Hose Drawing
G00720135Courtesy of NISSAN MOTOR CO., U.S.A.
