2. Check Overall Function

WITH CONSULT-II

1. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
2. Make sure that each circuit produces a momentary engine speed drop.

OK or NG

OK: INSPECTION END

NG: GO TO 10 .

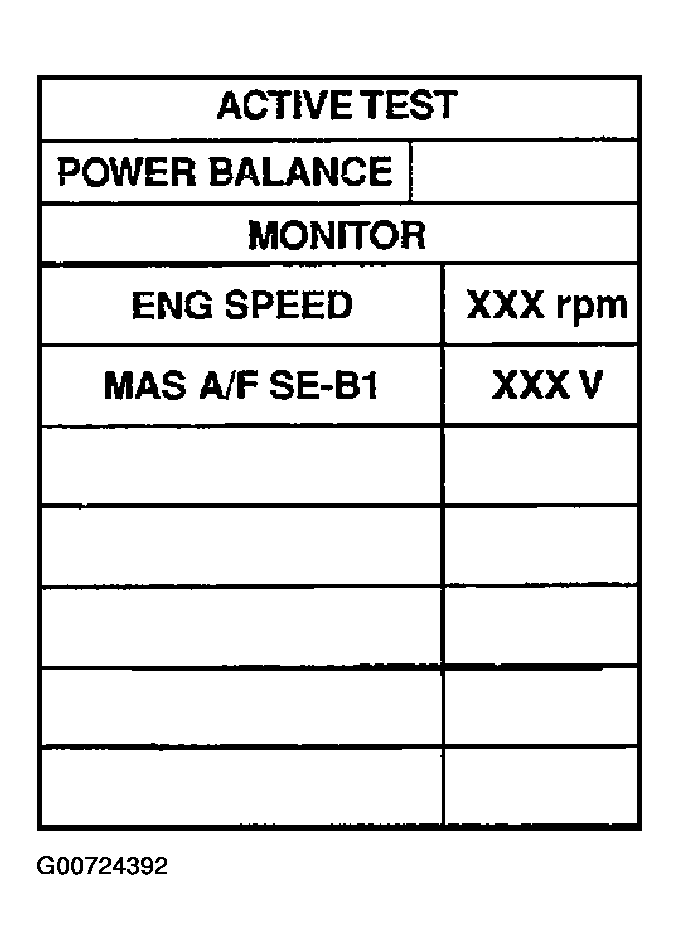

Fig 1: CONSULT-II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
