Active Test Mode

Test Item

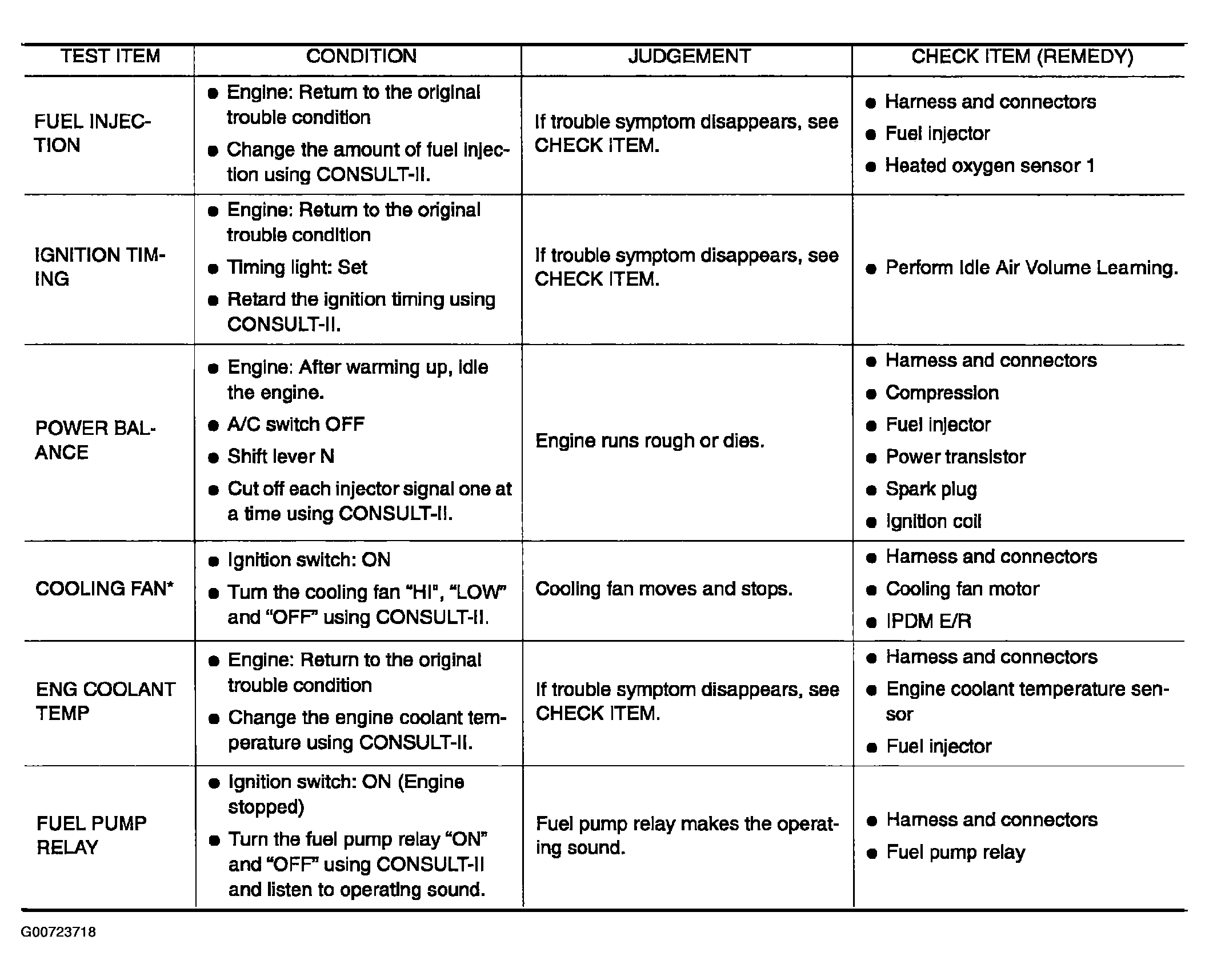

Fig 1: Consult-II Active Test Mode (1 Of 2)
G00723718Courtesy of NISSAN MOTOR CO., U.S.A.

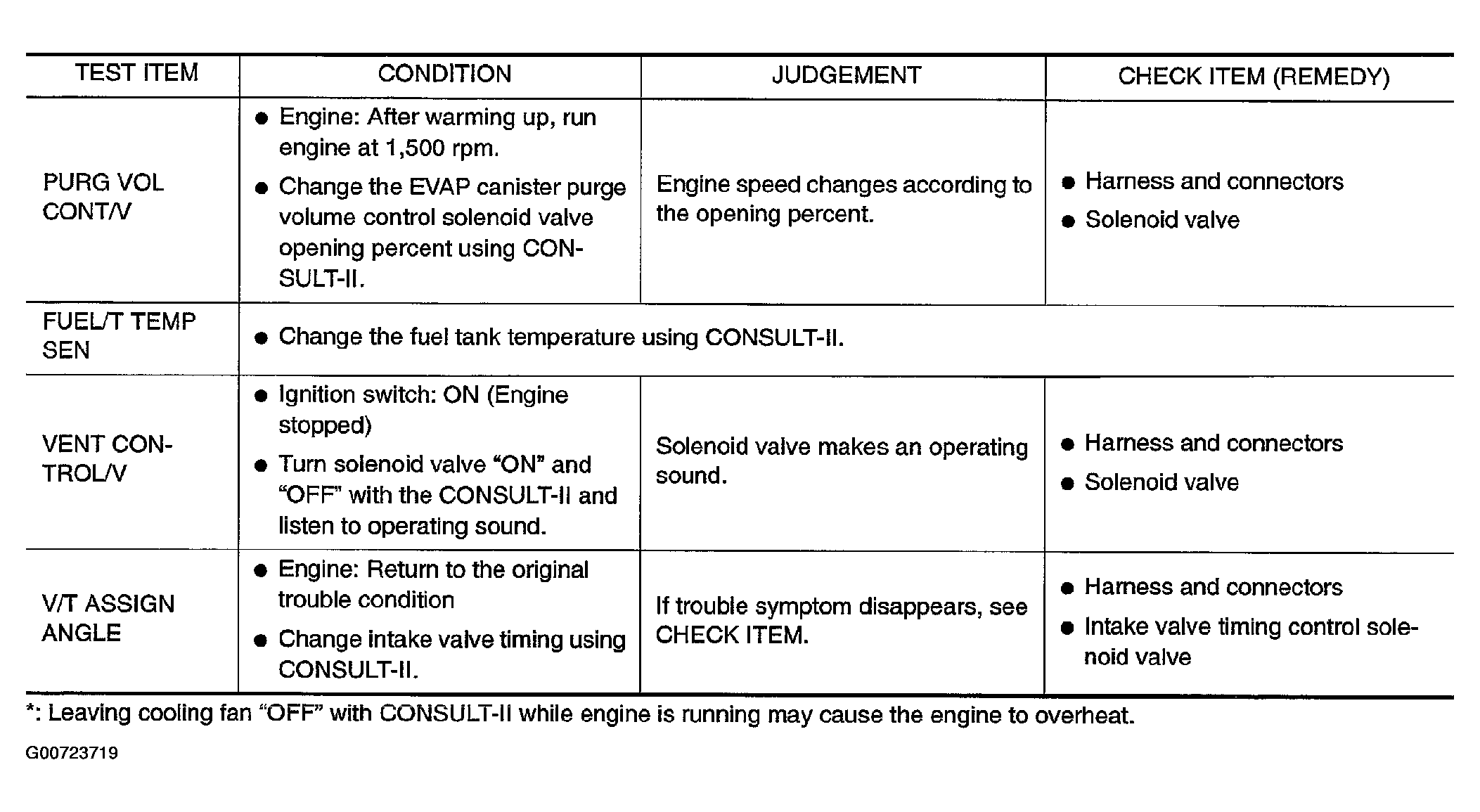

Fig 2: Consult-II Active Test Mode (2 Of 2)
G00723719Courtesy of NISSAN MOTOR CO., U.S.A.
