Without CONSULT-II

  1. Remove fuel pump fuse located in IPDM E/R.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.

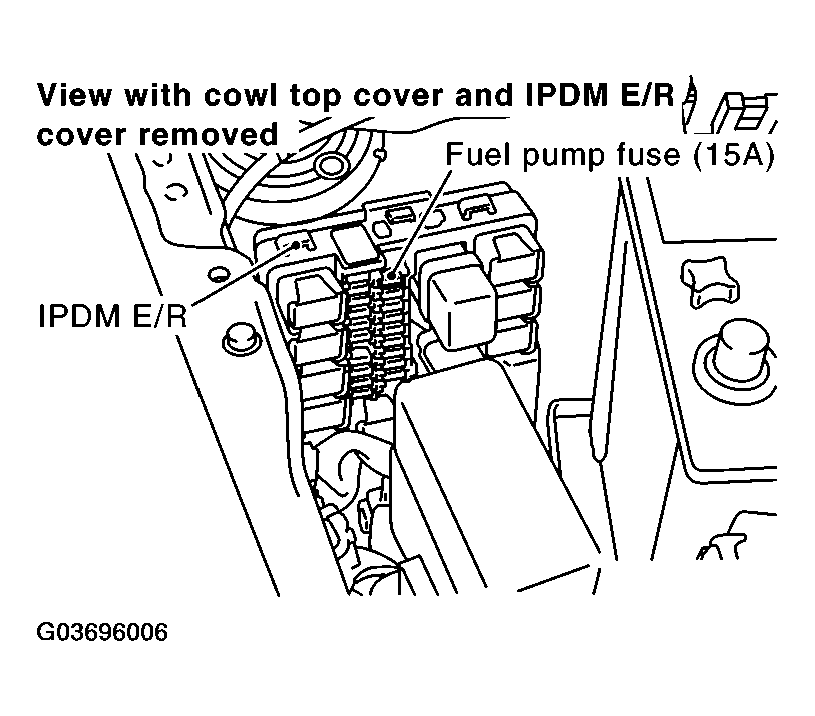

    Fig 1: Removing Fuel Pump Fuse Located In IPDM E/R
    G03696006Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.
