Method B

  1. Remove No. 1 ignition coil.

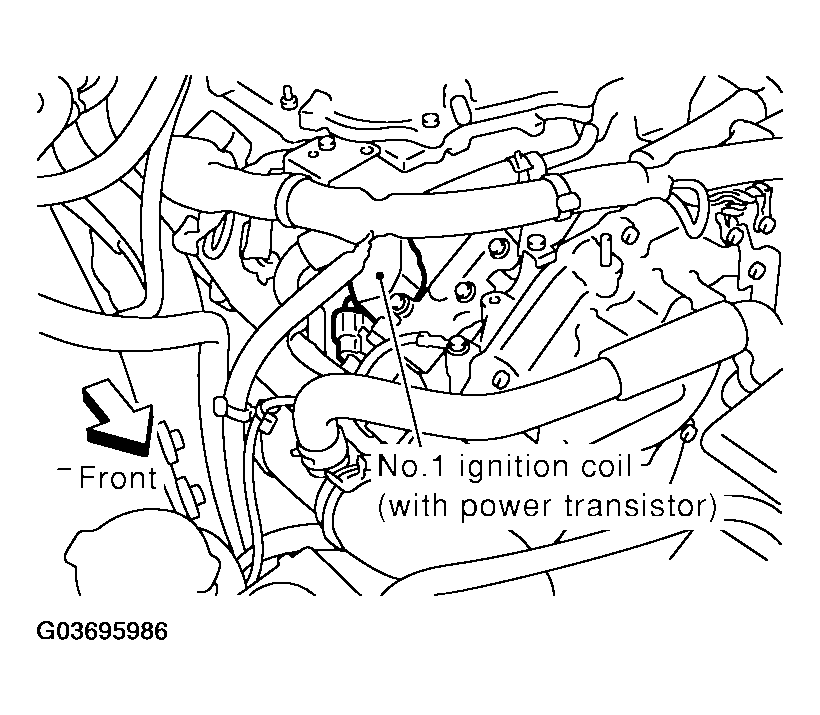

    Fig 1: Removing No. 1 Ignition Coil
    G03695986Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

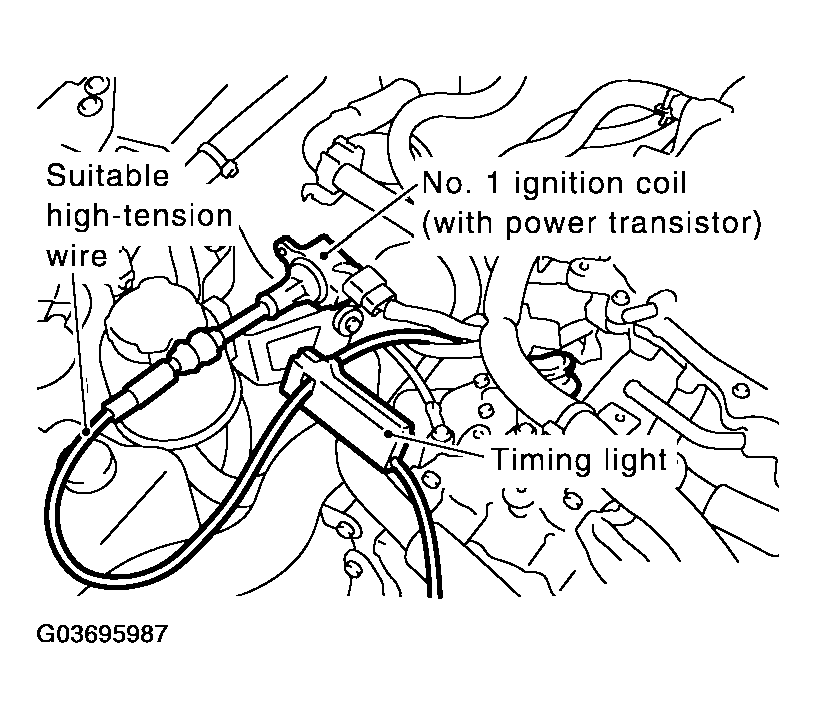

    Fig 2: Connecting No. 1 Ignition Coil & No. 1 Spark Plug With Suitable High-Tension Wire
    G03695987Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 3: Identifying Suitable High-Tension Wire & Electrode
    G03695988Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

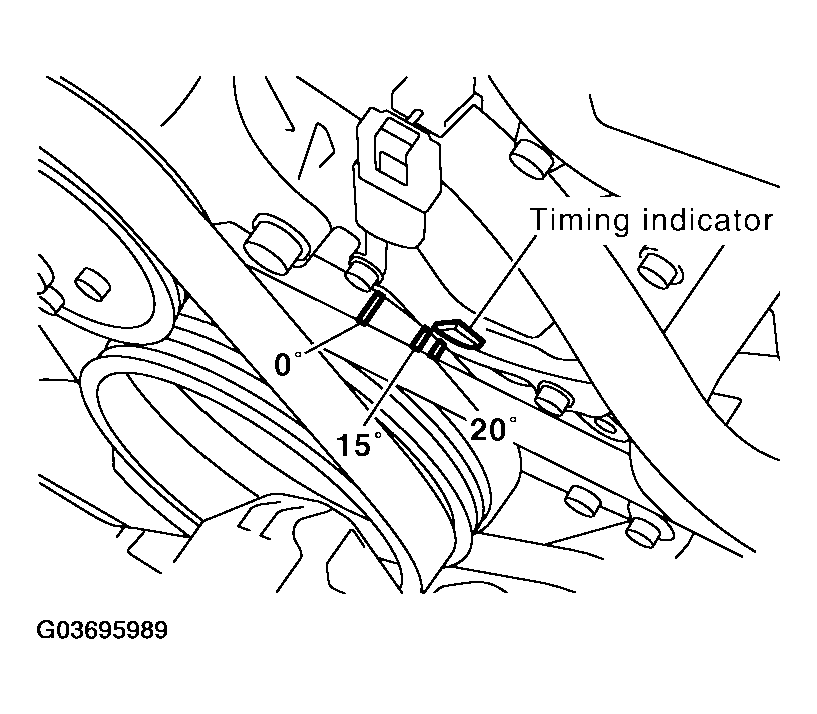

    Fig 4: Checking Ignition Timing
    G03695989Courtesy of NISSAN MOTOR CO., U.S.A.
