Intake Air Temperature Sensor

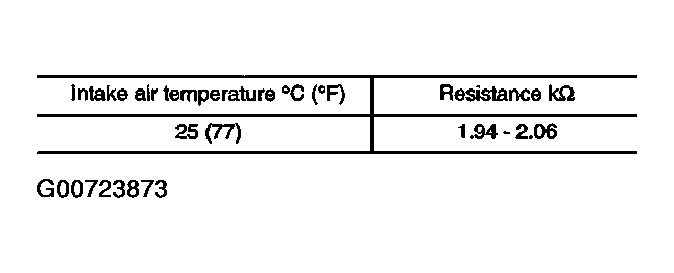

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

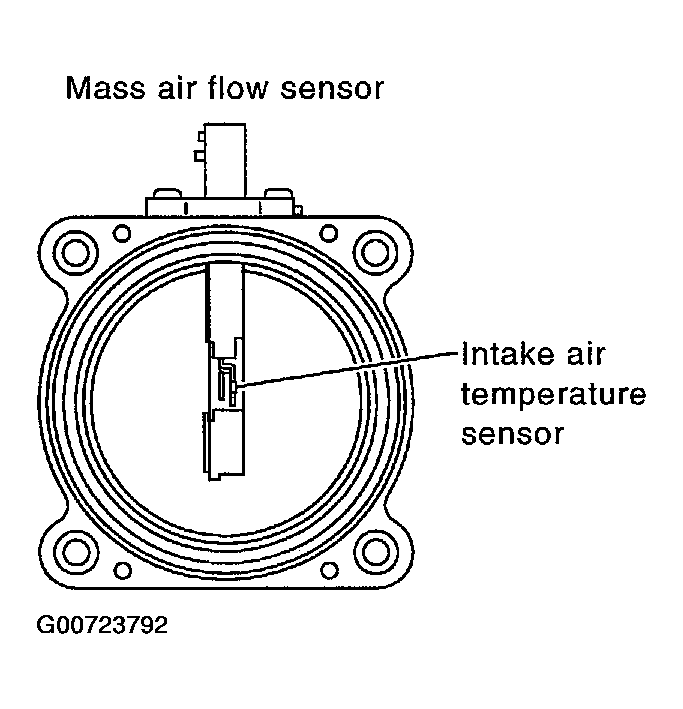

Fig 1: Intake Air Temperature Sensor Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.

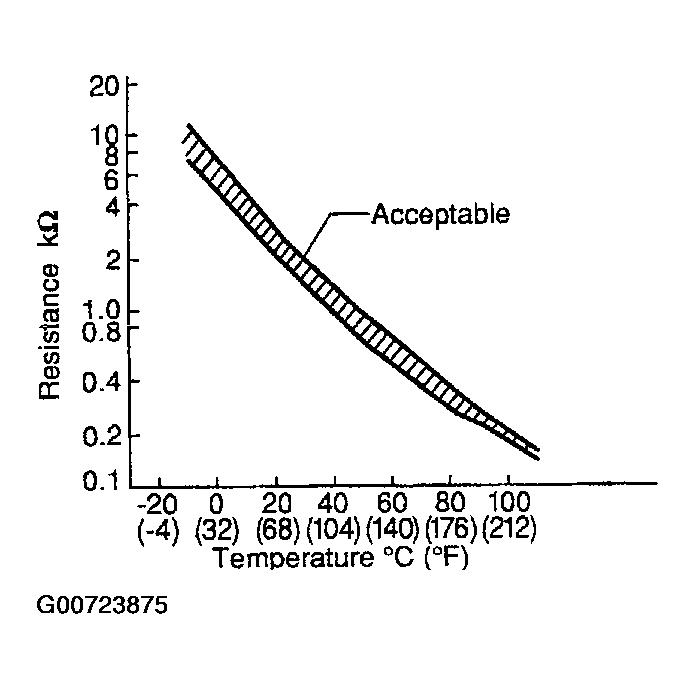

Fig 2: Intake Air Temperature Sensor Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor). See Figure.
