Overall Function Check

Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this check, a 1st trip DTC might not be confirmed.

WITH GST

1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

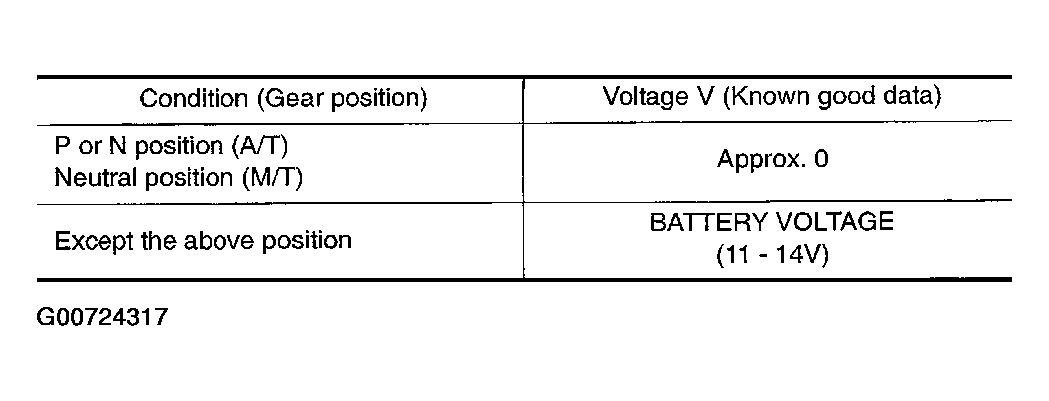

   Fig 1: PNP Switch Test Conditions

   Courtesy of NISSAN MOTOR CO., U.S.A.

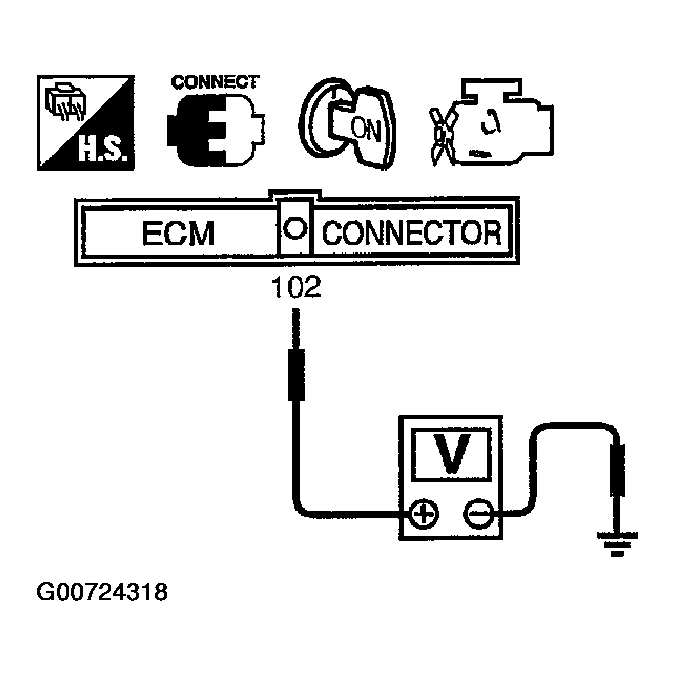

   Fig 2: Checking PNP Switch Signal Voltage

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. If NG, go to "Diagnostic Procedure ".
