Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in Fig 1.

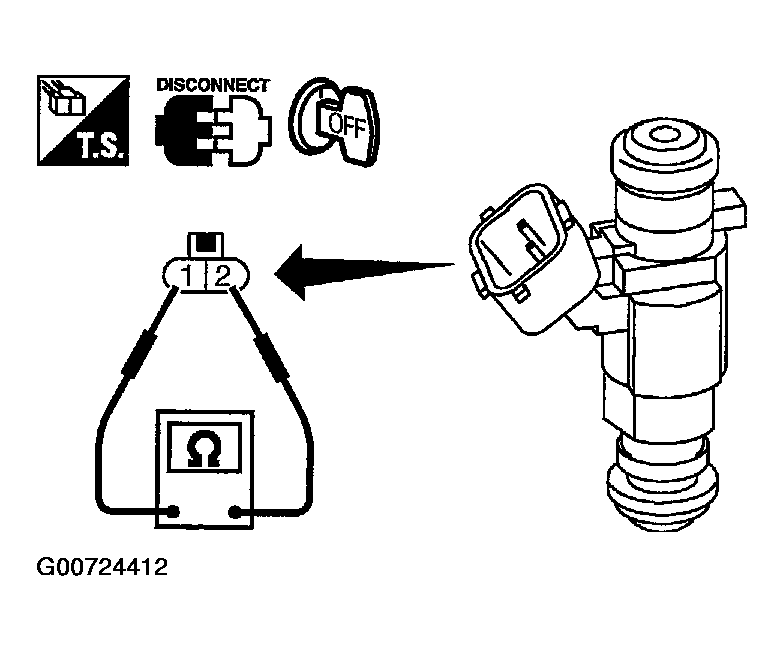

    Fig 1: Injector Component Inspection
    G00724412Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Resistance: 13.5 - 17.5Ω [at 10 - 60°C (50 - 140°F)]
