No Tools

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

A SRT code itself can no be displayed while only SRT status can be.

  1. Turn ignition switch ON and wait 20 seconds.
  2. SRT status is indicated as shown below.

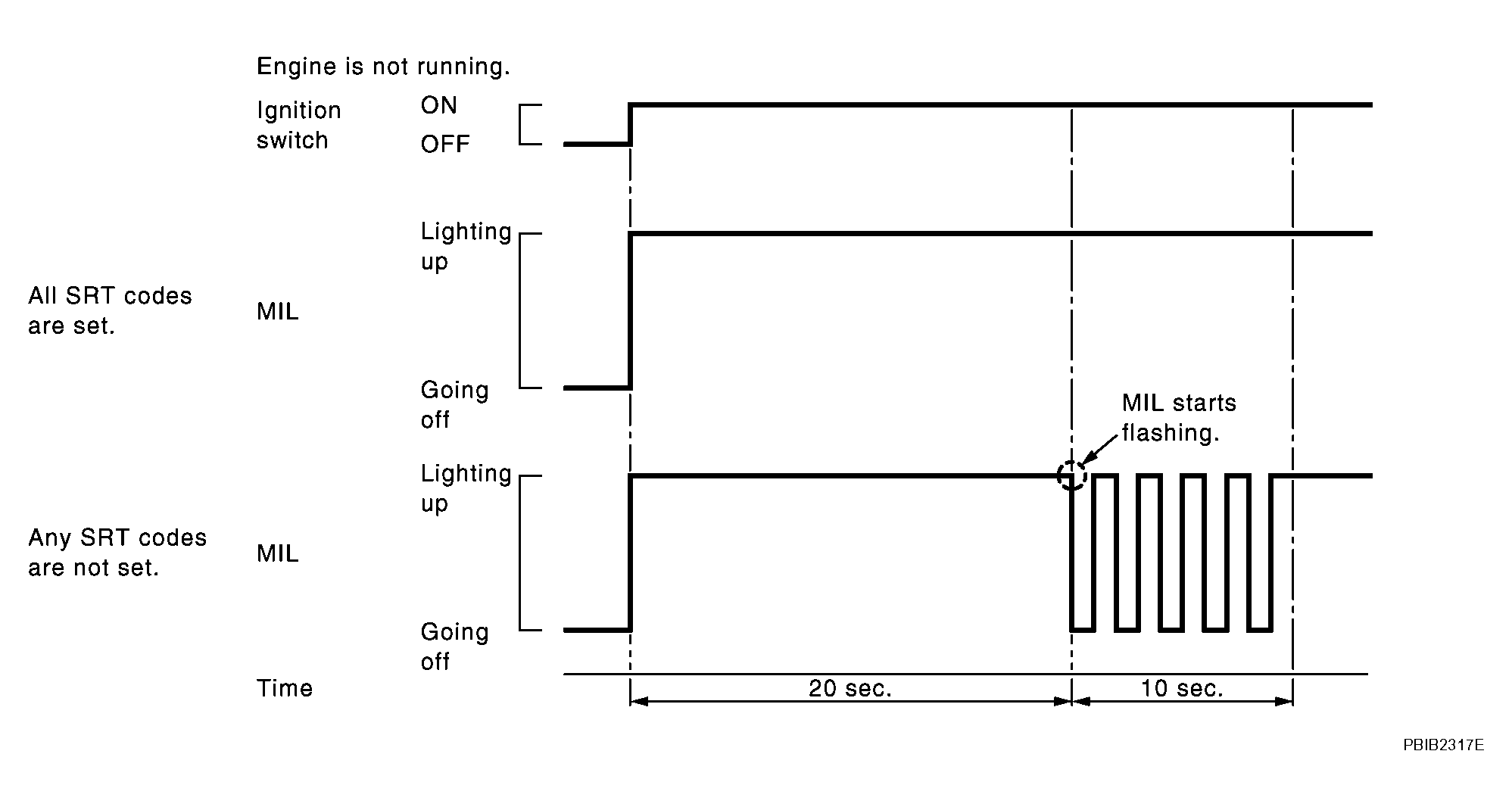

Fig 1: Identifying SRT Status Flashing
G04202536Courtesy of NISSAN MOTOR CO., U.S.A.
