Symptom: Cannot Refuel/Fuel Odor From The Fuel Filler Opening Is Strong While Refueling.

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK EVAP CANISTER
    1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
    2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.

    The weight should be less than 2.0 kg (4.4 lb).

    OK or NG

    OK : GO TO 2.

    NG : GO TO  3.

  2. CHECK IF EVAP CANISTER SATURATED WITH WATER

    Does water drain from the EVAP canister?

    Yes or No

    Yes : GO TO 3.

    No : GO TO  5.

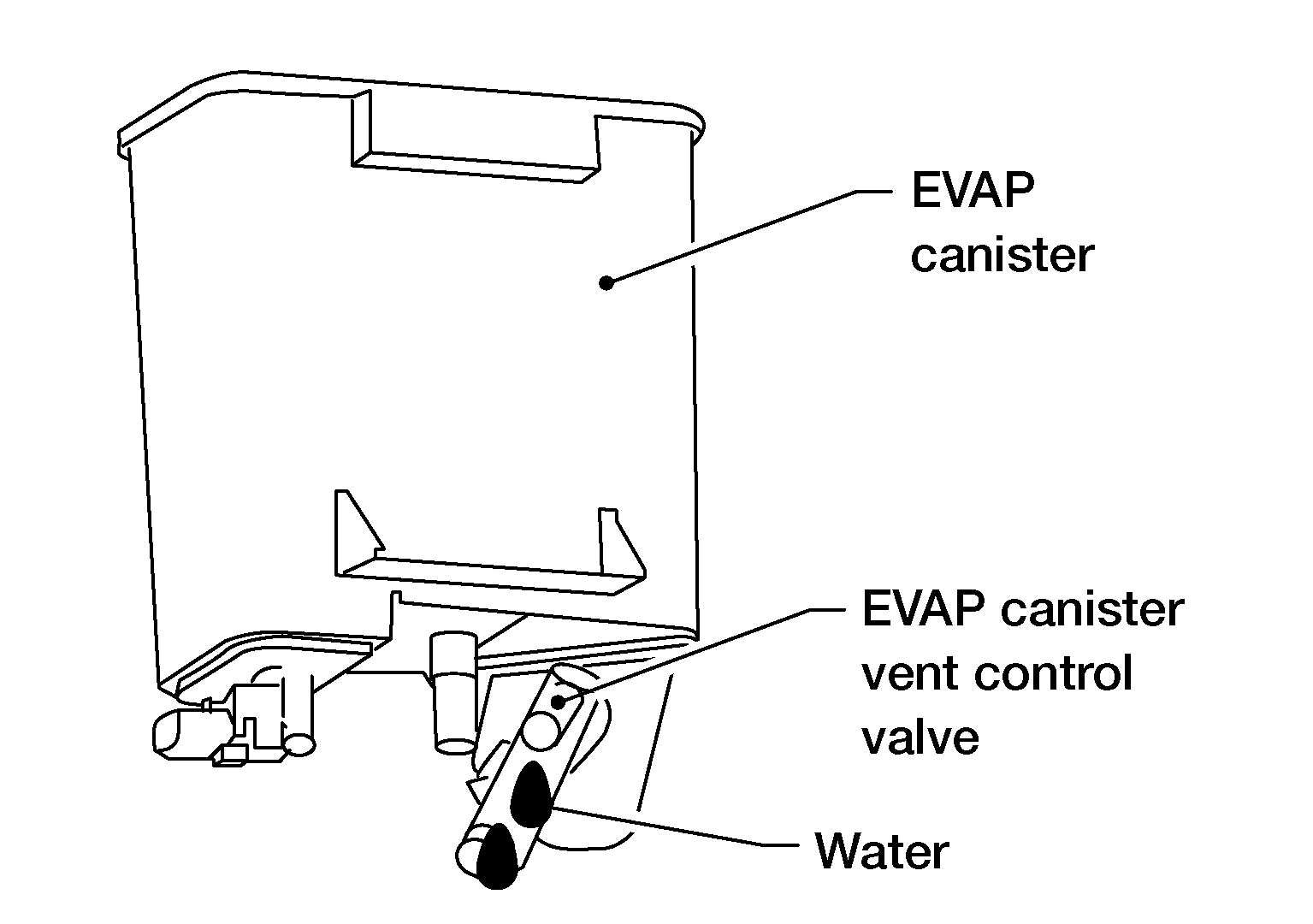

    Fig 1: Identifying EVAP Canister For Water
    G04147035Courtesy of NISSAN MOTOR CO., U.S.A.
  3. REPLACE EVAP CANISTER

    Replace EVAP canister with a new one.

    : GO TO 4.

  4. DETECT MALFUNCTIONING PART

    Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

    : Repair or replace EVAP hose.

  5. CHECK VENT HOSES AND VENT TUBES

    Check hoses and tubes between EVAP canister and refueling control valve for clogging, kink, looseness and improper connection.

    OK or NG

    OK : GO TO 6.

    NG : Repair or replace hoses and tubes.

  6. CHECK FILLER NECK TUBE

    Check recirculation line for clogging, dents and cracks.

    OK or NG

    OK : GO TO 7.

    NG : Replace filler neck tube.

  7. CHECK REFUELING EVAP VAPOR CUT VALVE

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK : GO TO 8.

    NG : Replace refueling EVAP vapor cut valve with fuel tank.

  8. CHECK FUEL FILLER TUBE

    Check filler neck tube and hose connected to the fuel tank for clogging, dents and cracks.

    OK or NG

    OK : GO TO 9.

    NG : Replace fuel filler tube.

  9. CHECK ONE-WAY FUEL VALVE-I

    Check one-way valve for clogging.

    OK or NG

    OK : GO TO 10.

    NG : Repair or replace one-way fuel valve with fuel tank.

  10. CHECK ONE-WAY FUEL VALVE-II
    1. Make sure that fuel is drained from the tank.
    2. Remove fuel filler tube and hose.
    3. Check one-way fuel valve for operation as follows.

      When a stick is inserted, the valve should open, when removing stick it should close.

      Do not drop any material into the tank  .

    OK or NG

    OK : INSPECTION END

    NG : Replace fuel filler tube or replace one-way fuel valve with fuel tank.

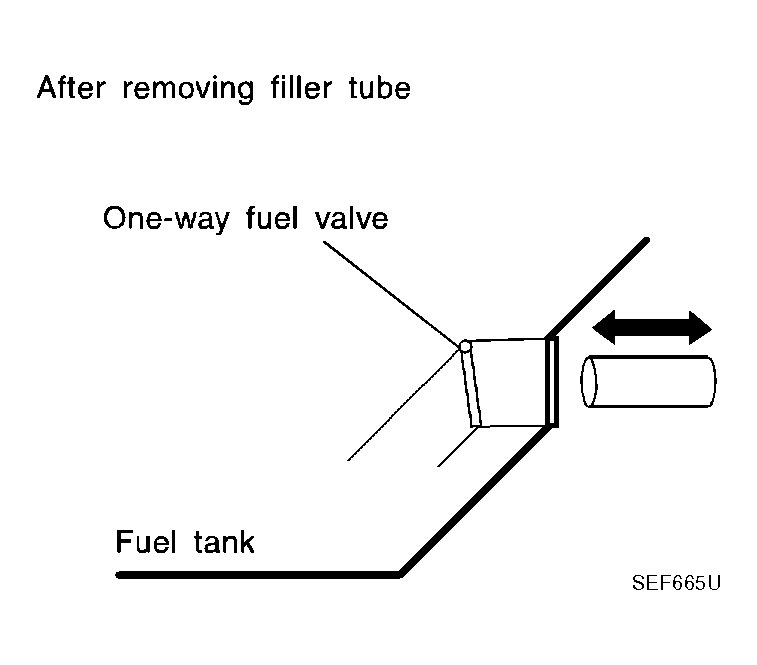

    Fig 2: Identifying One-Way Fuel Valve
    G04202525Courtesy of NISSAN MOTOR CO., U.S.A.
