Consult-II Function: Notes

The following functions are performed by combining data received and command transmitted via the communication line from the BCM.

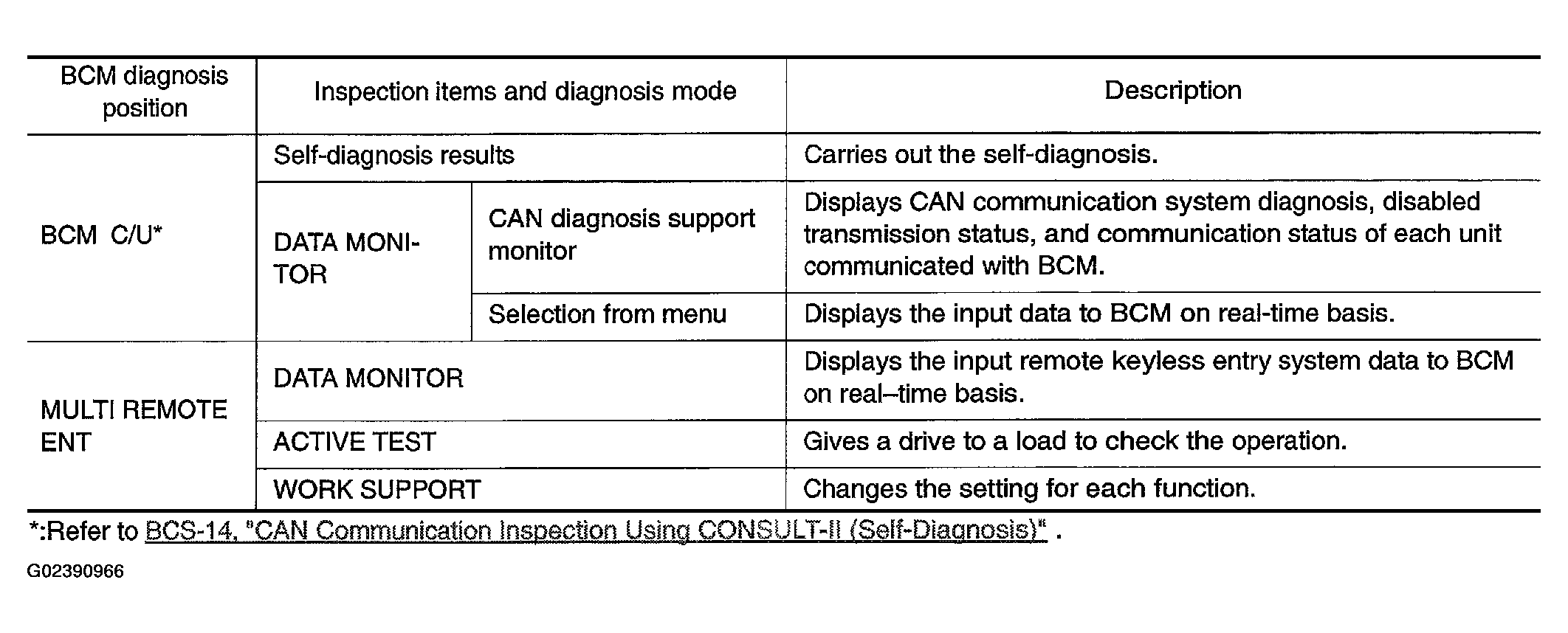

Fig 1: Displaying Diagnosis, Inspection & Description

Courtesy of NISSAN MOTOR CO., U.S.A.
