Snow Mode Switch

  1. Check snow mode switch continuity between terminals 1 and 4 under the following condition.
    SNOW MODE SWITCH CONDITION AND CONTINUITY

    CONDITION CONTINUITY
    Snow mode switch is ON Should exist
    Snow mode switch is OFF Should not exist

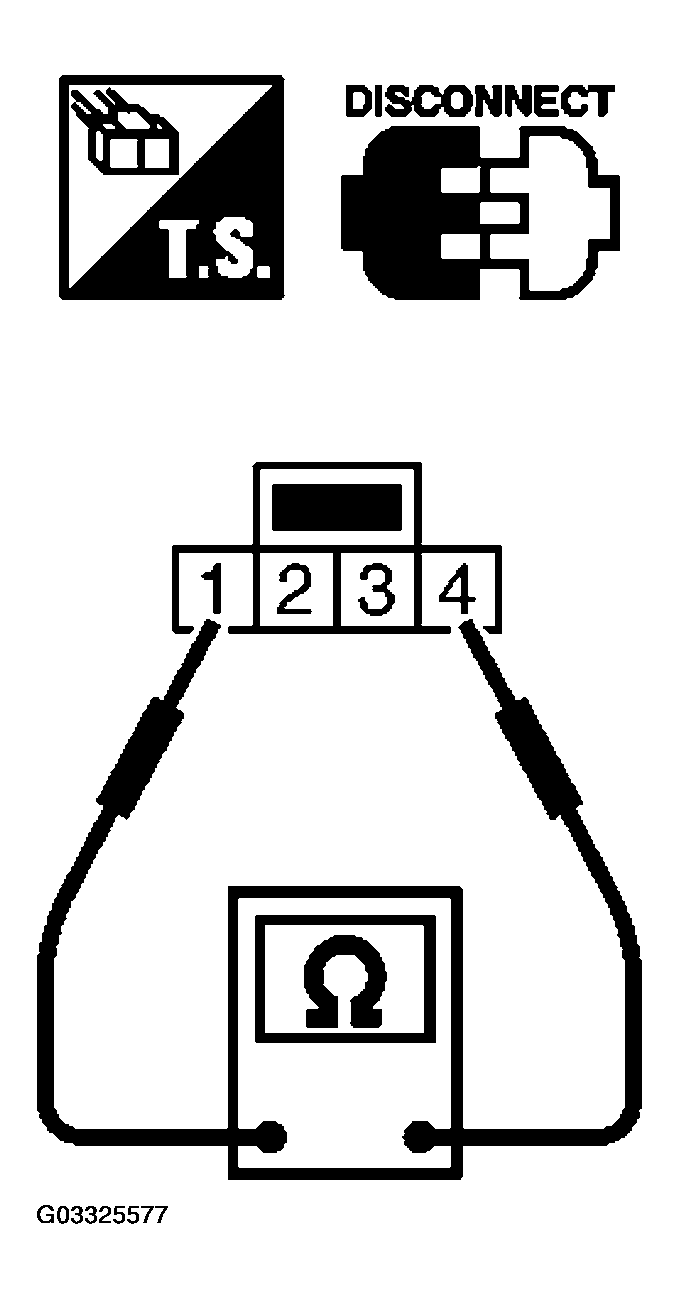

    Fig 1: Checking Snow Mode Switch Continuity Between Terminals 1 & 4
    G03325577Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If NG, replace snow mode switch.
