How to Set Diagnostic Test Mode II (Self-diagnostic Results)

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
Repeat the following procedure quickly five times within 5 seconds.
1. Fully depress the accelerator pedal.
2. Fully release the accelerator pedal.
Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MIL starts blinking.
NOTE: Do not release the accelerator pedal for 10 seconds if MIL may start blinking on the halfway of this 10 seconds. This blinking is displaying SRT status and is continued for another 10 seconds. For the details, refer to , "HOW TO DISPLAY SRT STATUS ".
Fully release the accelerator pedal.
NOTE: Wait until the same DTC (or 1st trip DTC) appears to confirm all DTCs certainly.

ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).

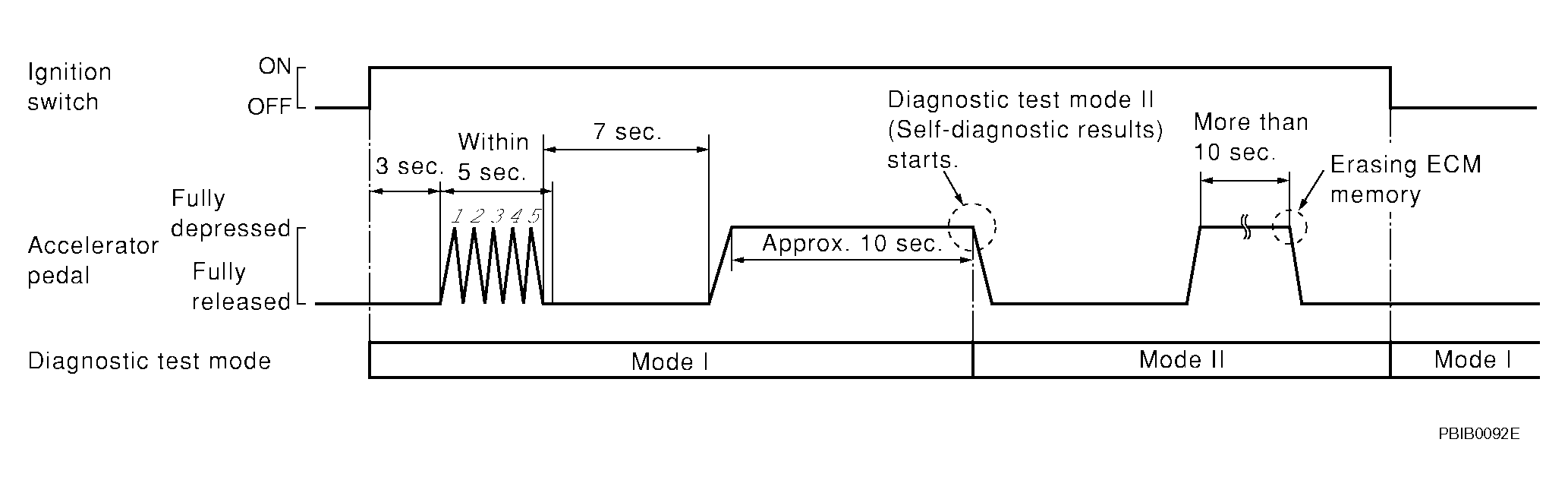

Fig 1: Identifying ECM Blinking Pattern
Courtesy of NISSAN MOTOR CO., U.S.A.
