Normal Control

Each clutch is adjusted to the necessary pressure to match the engine drive force.

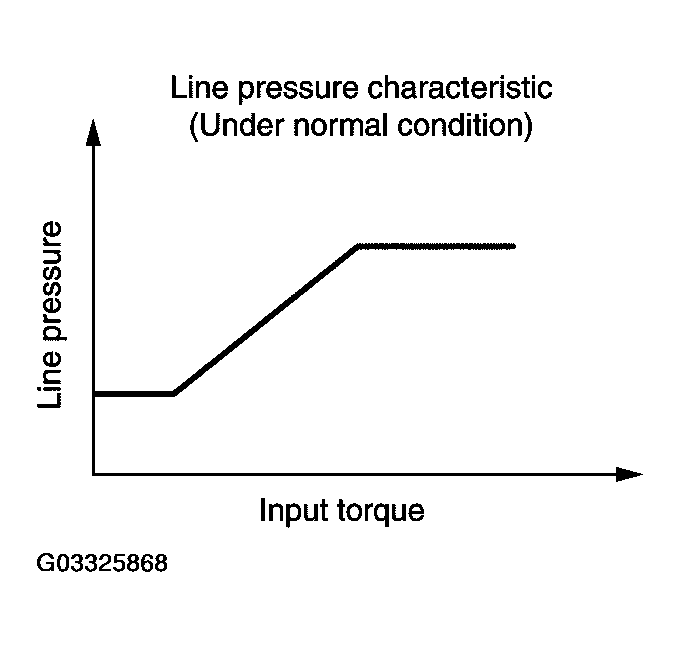

Fig 1: Normal Control Graph
G03325868Courtesy of NISSAN MOTOR CO., U.S.A.
