Removal and Installation of BCM: Removal

Remove the dash side finisher. Refer to BODY SIDE TRIM .
Disconnect BCM connector.
Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

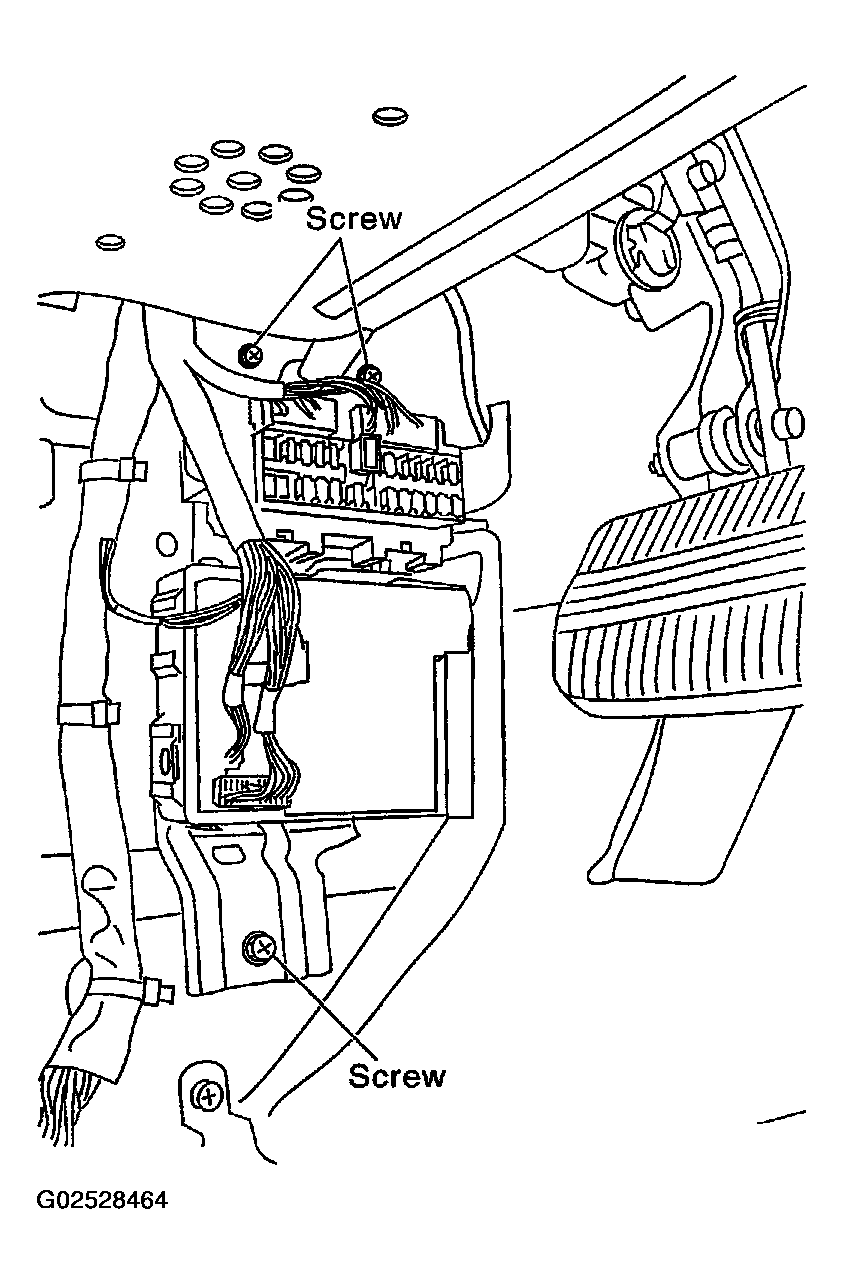

Fig 1: Locating Bracket Mounting Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

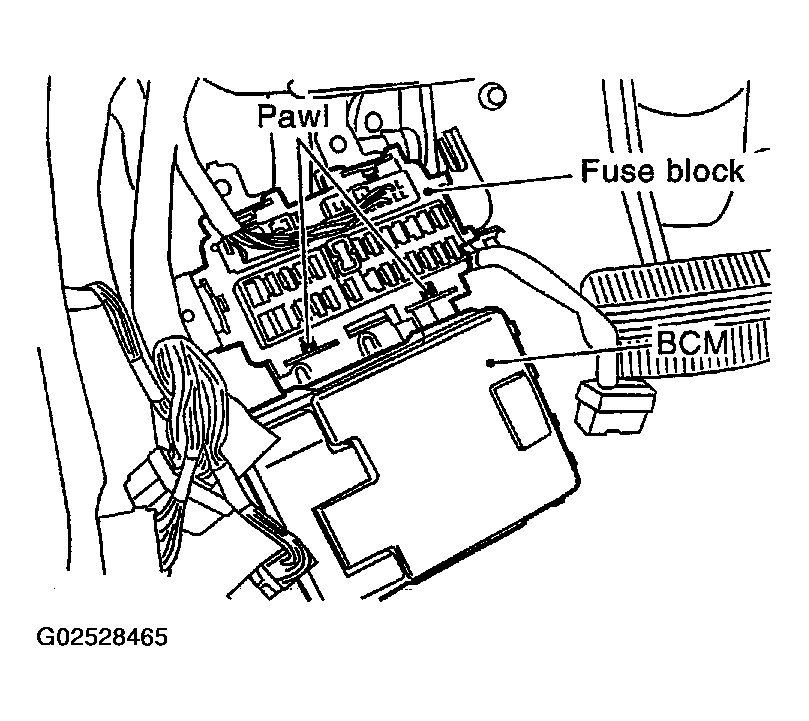

Fig 2: Locating BCM For Removal
Courtesy of NISSAN MOTOR CO., U.S.A.
