Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

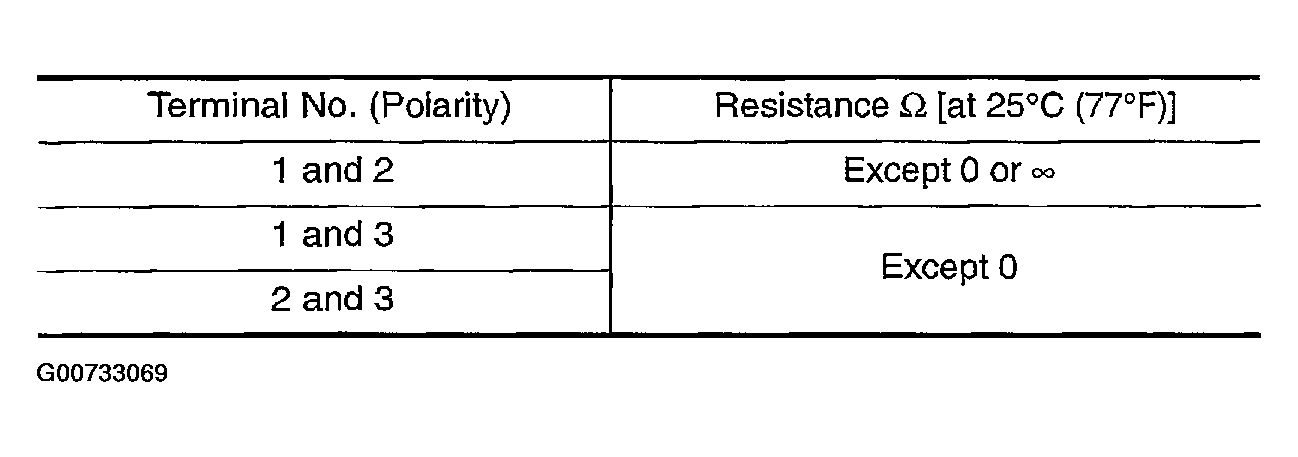

Fig 1: Ignition Coil Terminals Resistance Table
G00733069Courtesy of NISSAN MOTOR CO., U.S.A.

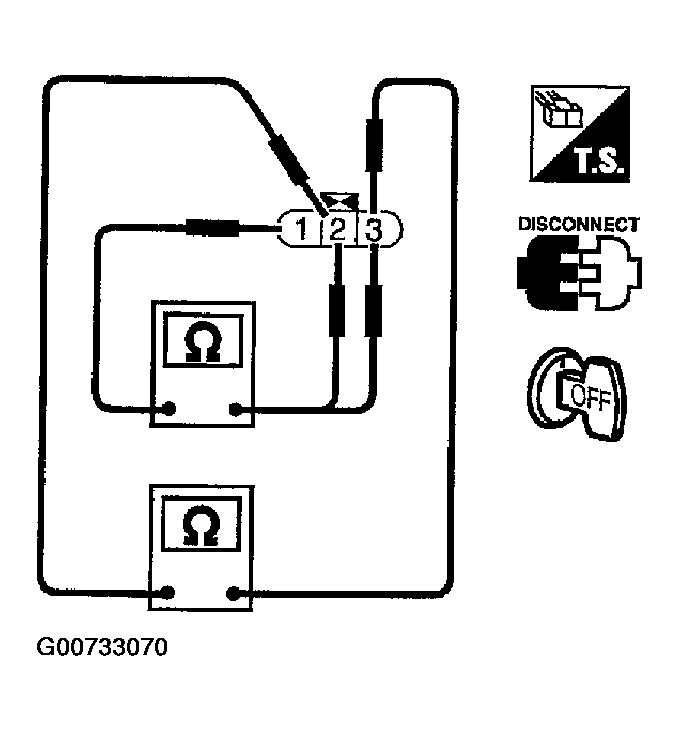

Fig 2: Checking Resistance Between Ignition Coil Terminals
G00733070Courtesy of NISSAN MOTOR CO., U.S.A.
