CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

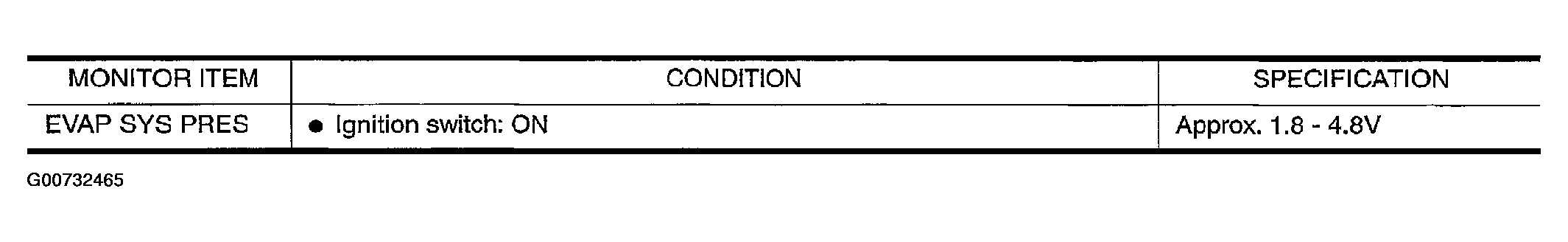

Fig 1: Diagnosis Procedure DTC P0453 -Specification Data And Reference Values
G00732465Courtesy of NISSAN MOTOR CO., U.S.A.
