Testing Condition:

Before performing the following procedure, confirm that battery voltage is more than 11V at ignition switch ON.

With CONSULT-II

1. Turn ignition switch ON.
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to Diagnostic Procedure .

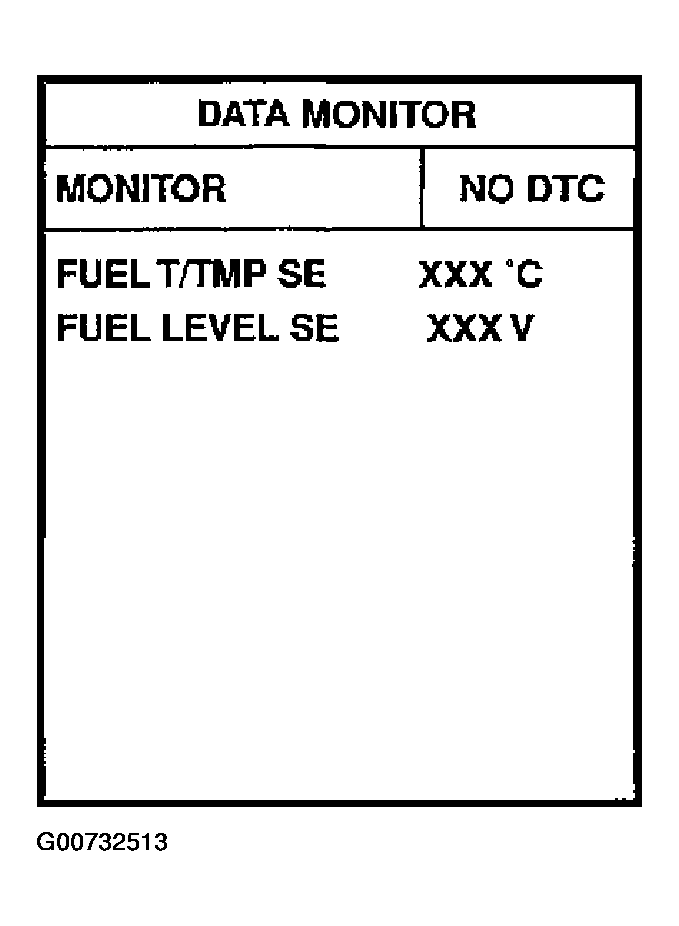

Fig 1: CONSULT-II Data Monitor Display

Courtesy of NISSAN MOTOR CO., U.S.A.
