Test Item

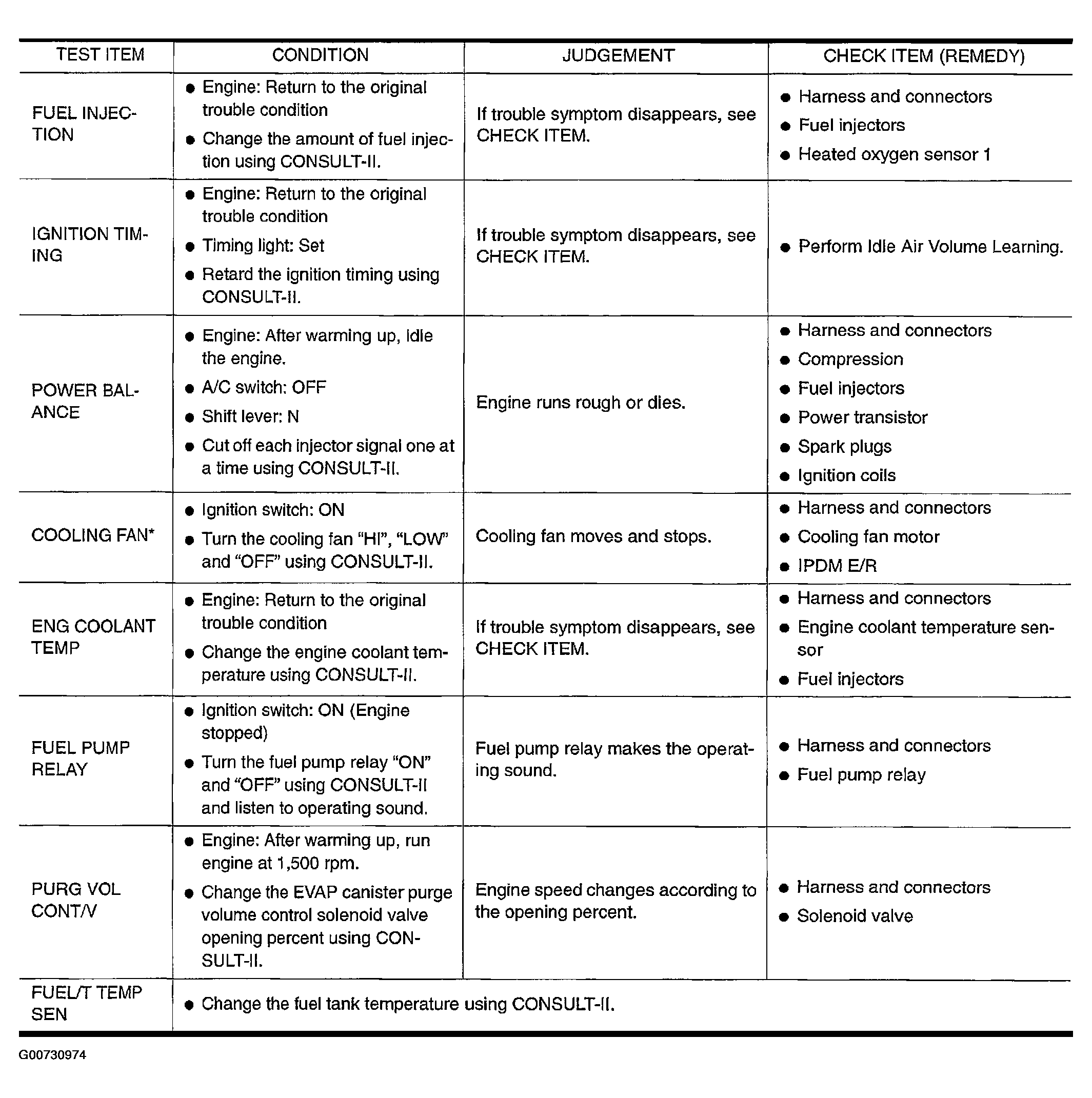

Fig 1: Active Test Mode - Test Item (1 Of 2)
G00730974Courtesy of NISSAN MOTOR CO., U.S.A.

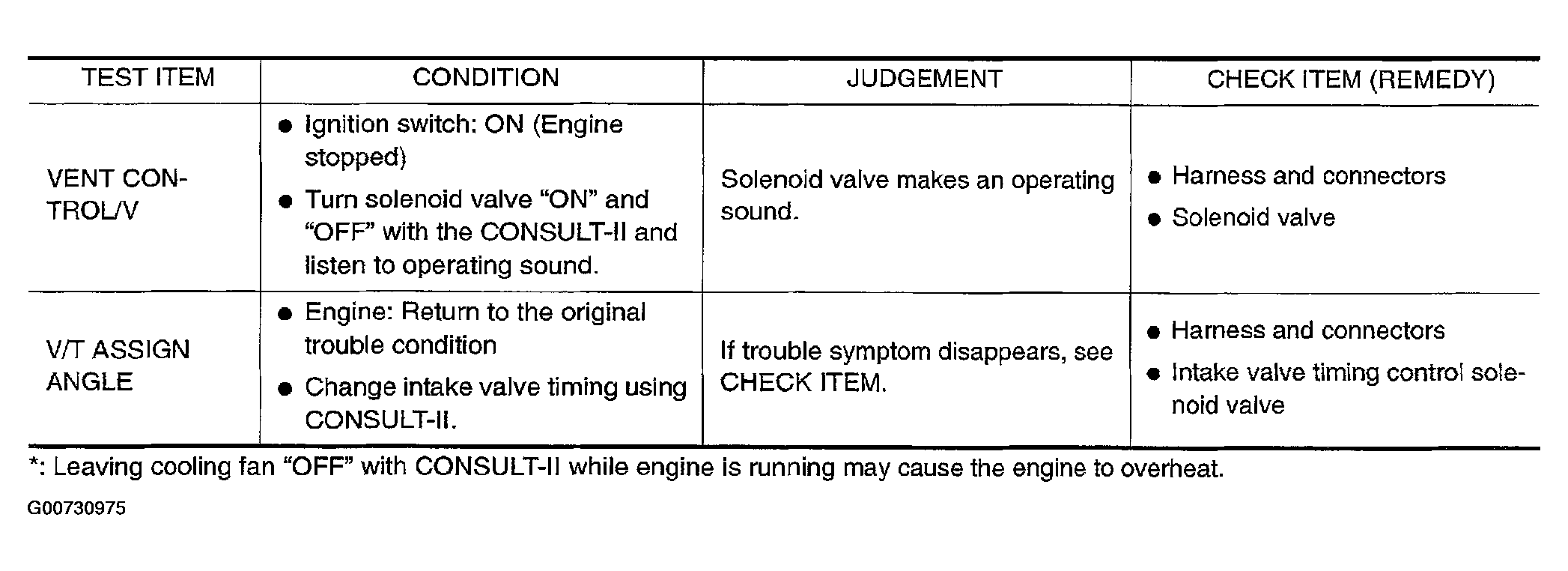

Fig 2: Active Test Mode - Test Item (2 Of 2)
G00730975Courtesy of NISSAN MOTOR CO., U.S.A.
