ASCD Indicator: Wiring Diagram

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

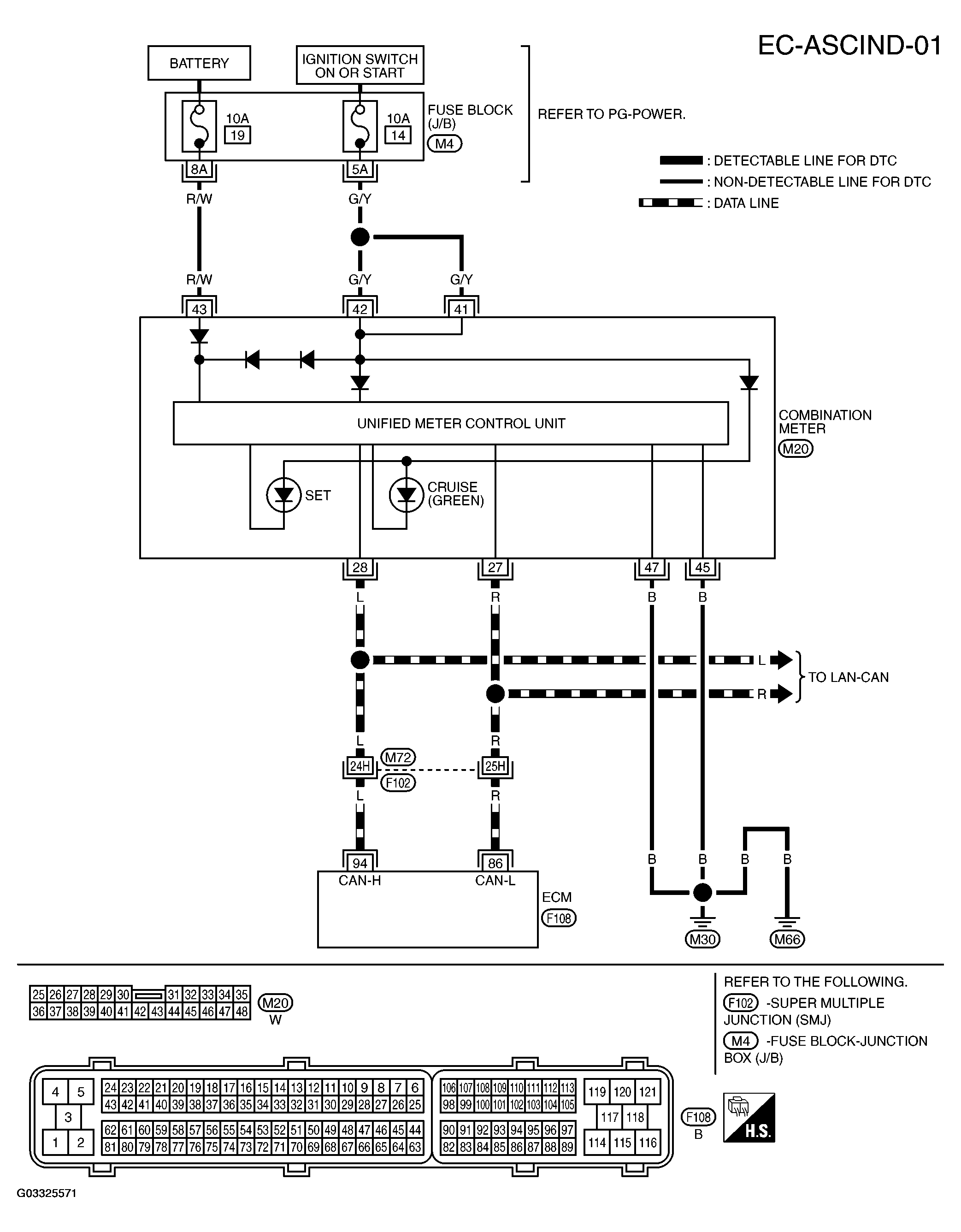

Fig 1: Wiring Diagram - EC-ASC/IND-01
G03325571Courtesy of NISSAN MOTOR CO., U.S.A.
